Building Resilience Energy Storage Systems for Communication Base Stations

Customization:	Available
Type:	Energy Storage
Usage:	Electric Power

Send Inquiry

Product Description

📊

Overview & Basic Info

Model NO.

Energy Storage

Nominal Voltage

48V

Discharge Rate

High Discharge Rate

Electrolyte

Li-ion

Installation

Open Frame

Rechargeable

Chargeable

Cooling Method

Air Cooling

Power

33.12kwh

Voltage

DC Bus Side 42vd-58VDC

Atmospheric Pressure

61kp-113kpa

Protection Level

IP21

Relative Humidity

<95%

Efficiency

>95%

Installation Environment

Indoor

Origin

China

Production Capacity

100000pieces/Year

🔋

Product Description

The one-stop energy storage system for communication base stations is specially designed for base station energy storage. Users can use the energy storage system to discharge during load peak periods and charge from the grid during low load periods, reducing peak load demand and saving electricity costs, thus achieving the purpose of improving load characteristics and participating in system peak regulation, while saving electricity costs and maximizing arbitrage.

⚙️ System Integration Integrate EMS / BMS / PCS / power distribution / battery / operation platform to provide one-stop system solutions.

🛡️ Independent Control Each group of batteries is independently controlled, without risk of circulation.

🔄 Perfectly Compatible Compatible with mainstream batteries on the market, allowing batteries of different types, capacities and batches to be used in parallel.

🔒 Safe and Stable Thermal runaway warning / DC circuit breaker / explosion-proof structure triple protection design.

⚡ Minimalist Deployment Modular design enables quick disassembly and assembly, taking only 15 minutes for installation.

📱 Intelligent Operation Thousands of stations are interconnected to accurately calculate revenue and remotely monitor equipment status.

📋

Product Parameters

Specifications		Lead Carbon System	Lithium Battery System
Mechanical Properties	Weight	860kg (2V500Ah 22pcs/group)	370kg (3.2V230Ah 15pcs/group)
	Size (LWH)	1040mm540mm1485mm	680mm489.5mm1528mm
	Cooling	Air Cooling	Air Cooling
Electrical Characteristics	Power Capacity	22kWh	33.12KWh
	Voltage (DC Bus)	42VDC ~ 58VDC	42VDC ~ 58VDC
	Efficiency	≥95%	≥95%
	MTBF	>100,000 Hours (25ºC)	>100,000 Hours (25ºC)
Environment	Temperature	-20 to 50ºC	-20 to 50ºC
Environment	Protection	IP21	IP21

🛠️

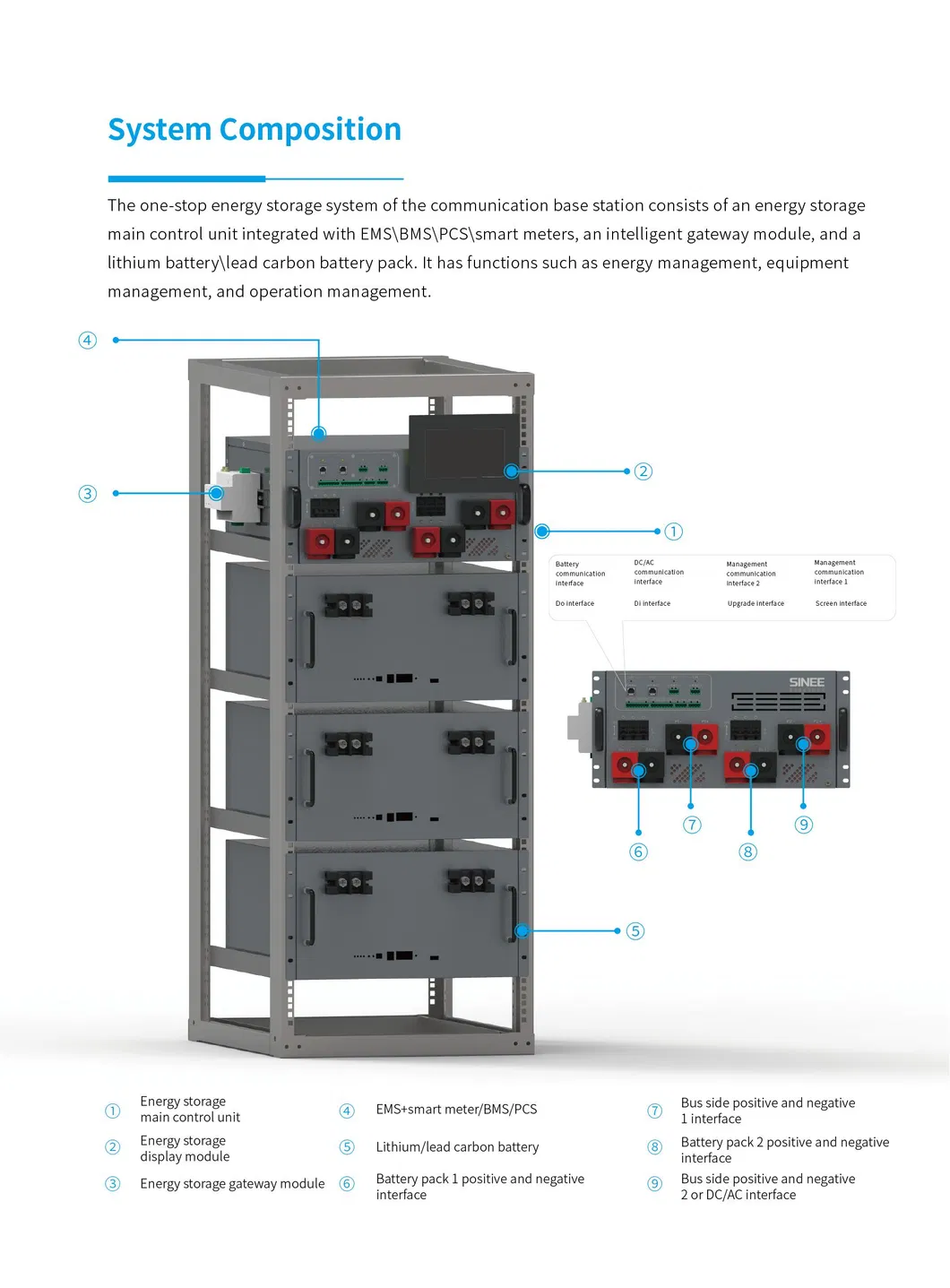

Installation Instructions

🏢

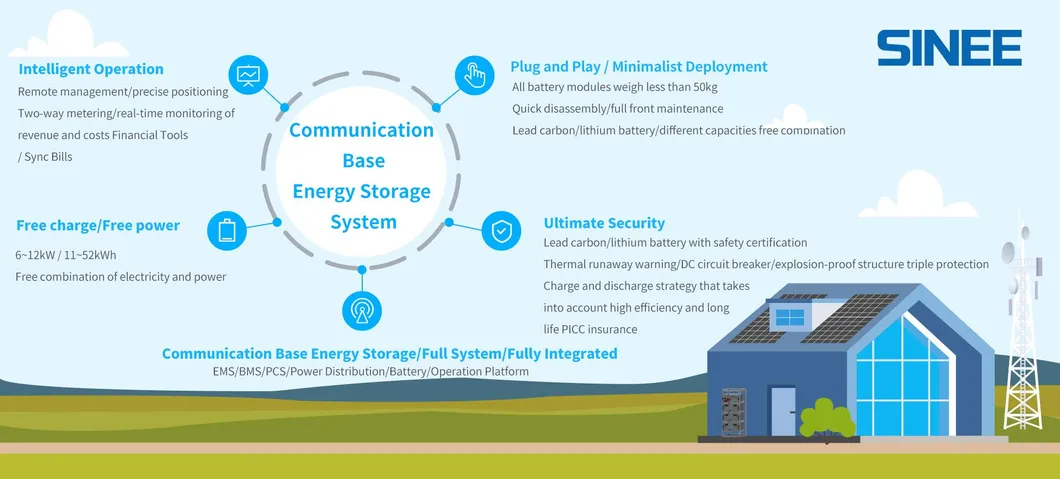

System Capabilities

❓

Frequently Asked Questions

1. What is the primary purpose of this energy storage system for base stations?

The system is designed to allow communication base stations to discharge during peak load periods and charge during low load periods. This helps in reducing peak demand, saving electricity costs, and maximizing arbitrage.

2. How long does it take to install a modular station?

Thanks to the modular design and quick assembly structure, it typically takes only 15 minutes to complete the installation of a base station energy storage unit.

3. Is this system compatible with different battery types?

Yes, the system is perfectly compatible with mainstream batteries on the market. It allows batteries of different types, capacities, and batches to be used in parallel safely.

4. What safety protections are included in the design?

Safety is a priority. The system features a triple protection design, including thermal runaway warnings, integrated DC circuit breakers, and an explosion-proof structure.

5. Can the equipment be maintained from the front?

Yes, the system supports full frontal maintenance. There is no need to reserve maintenance channels at the back, which helps save significant space within the base station.

6. What is the efficiency and lifespan (MTBF) of the system?

The system operates with an efficiency of over 95% and has a Mean Time Between Failures (MTBF) of more than 100,000 hours at 25ºC.
