Product Overview
360 Gold Telemetry Load Links
Our Answer to Measurement of Tensile Load in Heavy Industrial Applications:
Technical Description
All our load links are manufactured from anodized aerospace grade aluminum, allied with our full O-ring sealing gives ingress protection of IP67. The linear construction and high-grade materials ensure durability in harsh environments.

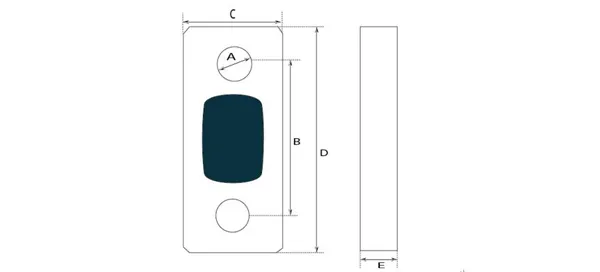

| Capacity | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (kg) |
| 2.5t | 23 | 215 | 38 | 270 | 25 | 2.4 |
| 5t | 27 | 240 | 38 | 292 | 38 | 2.6 |
| 12.5t | 44 | 226 | 130 | 324 | 50 | 5.3 |
| 25t | 55 | 240 | 134 | 360 | 70 | 7.1 |
| 35t | 62 | 290 | 140 | 440 | 70 | 9.4 |
| 50t | 78 | 298 | 163 | 476 | 85 | 15.0 |
| 75t | 86 | 306 | 190 | 500 | 100 | 17.0 |
| 100t | 100 | 346 | 196 | 556 | 124 | 26.1 |
| 150t | 120 | 396 | 244 | 680 | 127 | 47.1 |
| 200t | 132 | 442 | 280 | 784 | 150 | 79.0 |
* All sizes in mm/kg. Please confirm critical dimensions before ordering.
Key Features & Advantages
- 360° (600m) radio signal transfer
- Internal antenna & Linear construction
- Up to 500 hour battery life
- Simple battery change out
- IP67 Waterproof & Dustproof
- Compact structure and lighter weight
- Safety factor 5:1 performance
- Accuracy 0.1% for full range
- Specific calibration report included
- Overloading alarm system
Applications
For design and quality control in: SHIPYARD, CRANE MANUFACTURING, IRON & STEEL, METALLURGY & CASTING, SPACECRAFT MANUFACTURING, AUTOMATION, RAILWAY PRECAST BEAM, HARBOR CRANE and heavy load monitoring sectors.
Order & Logistics
Units available from 2.5t to 500t.

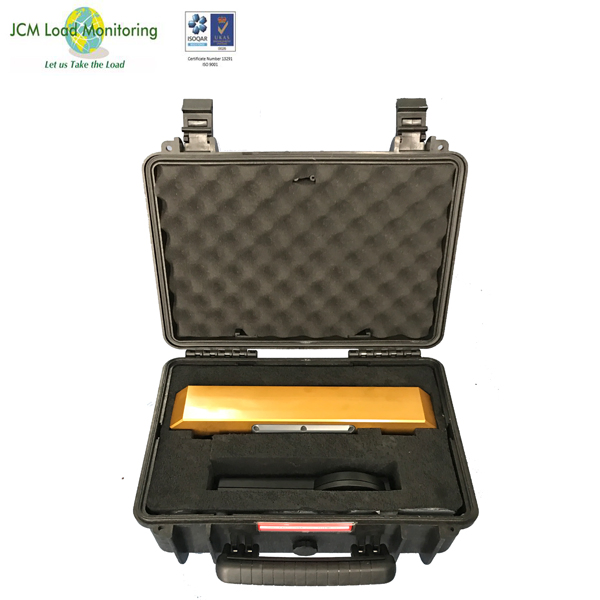

- 2.5t to 50t: Supplied in an IP67 transit case.
- 75t to 500t: Supplied in a hinged wooden transit case.
- Shipping: Air shipping recommended for urgent/small orders; sea shipping for bulk orders.

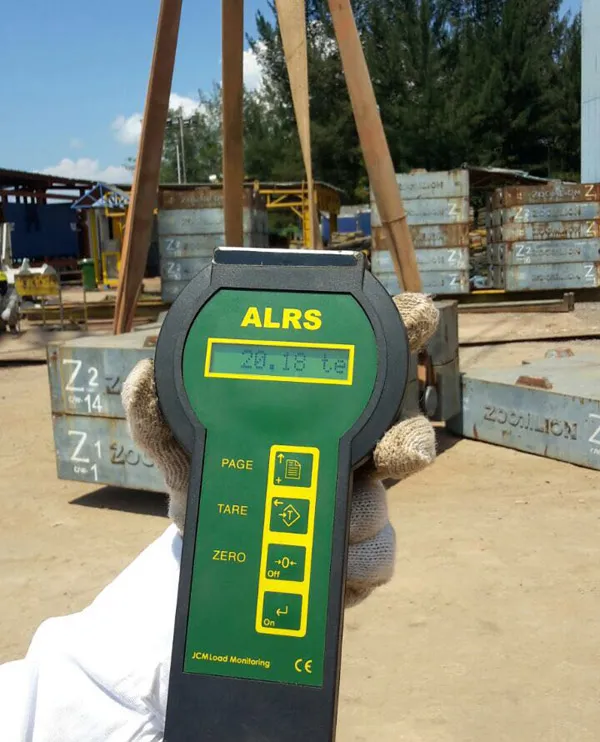

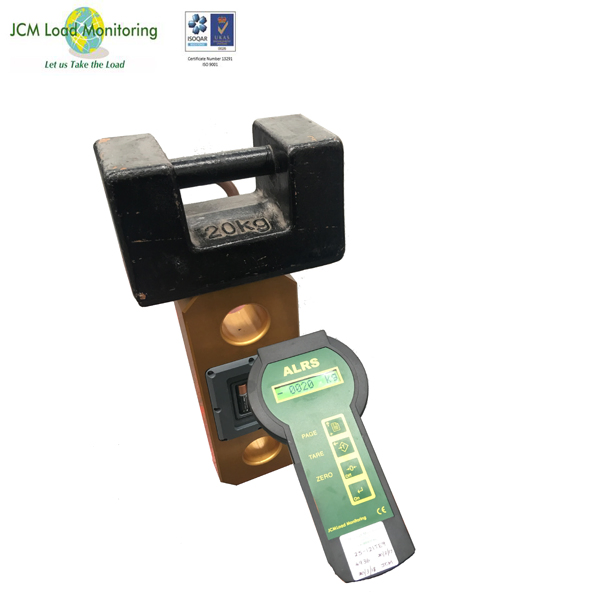

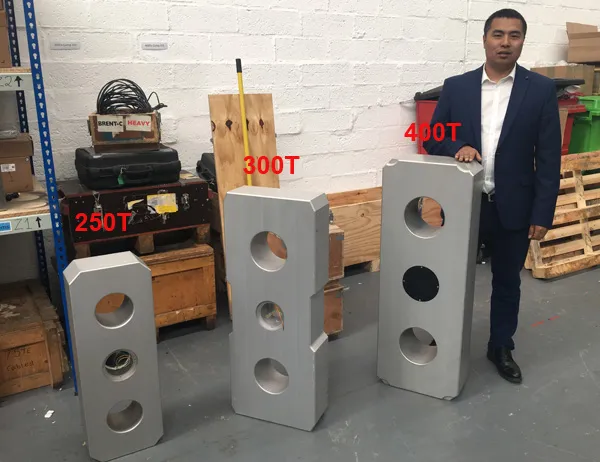

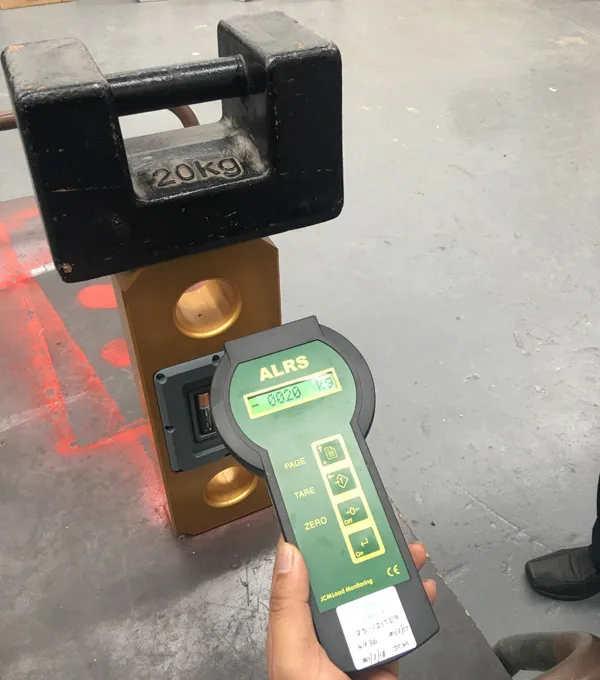

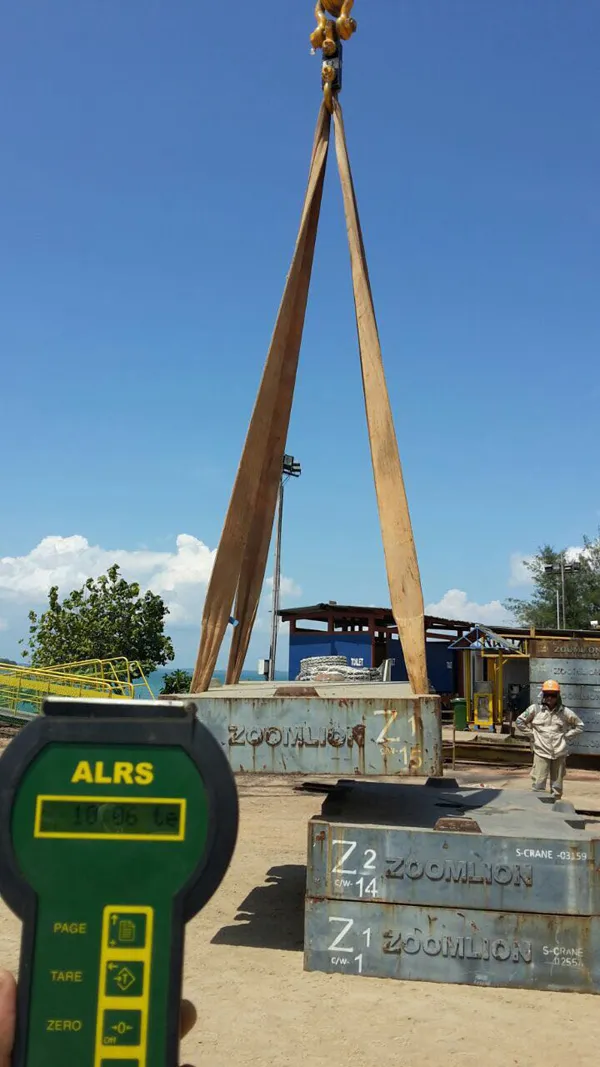

Product Showcase
Frequently Asked Questions
Q1: What is the wireless range of the telemetry load links?
A: The system provides a 360° radio signal transfer with a range of up to 600 meters.
Q2: How durable is the load cell in outdoor environments?
A: The units are rated IP67, making them workable under harsh weather such as heavy rain, snow, and dust.
Q3: What material is used for the construction of the load links?
A: They are manufactured from anodized aerospace-grade aluminum for high strength and light weight.
Q4: What is the typical battery life for these devices?
A: The load links offer a battery life of up to 500 hours with a simple change-out process.
Q5: Is the measurement accuracy reliable for industrial use?
A: Yes, it features an accuracy of 0.1% for the full range and includes a specific calibration report for each load cell.
Q6: What safety measures are included?
A: The load links are designed with a 5:1 safety factor and include an integrated overloading alarm.
