25t/250kN Wireless Pad Eyes Type Load Cell for Shipyard and Heavy Industry for Sale

🔹 Basic Specifications

Out-Wire

6-Wire

Output Signal Type

Digital Type

Feature

Corrosion Resistant

Production Process

Integration

Material

Aluminum

IP Rating

IP67

Certification

CE

Customized

Available

Color

Golden/Silver

Transport Package

Plastic Case / Wooden Box

Specification

Small Size

Production Capacity

10000 PCS Yearly

🔹 Product Overview

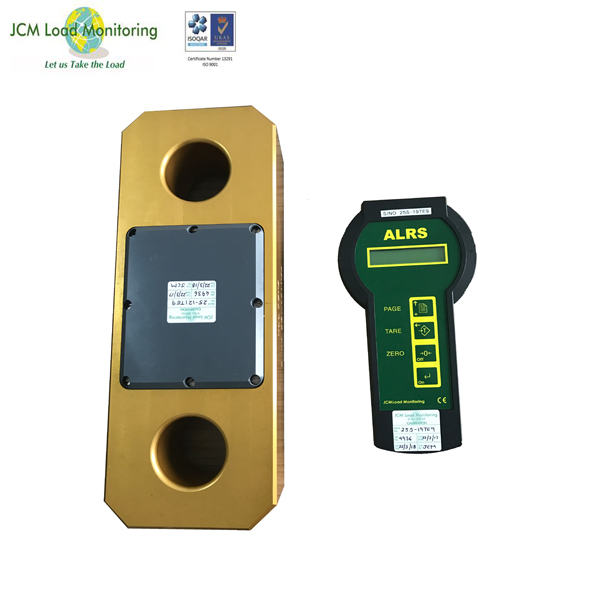

360 Gold Telemetry Load Links

Our answer to measurement of tensile load in heavy industrial applications:

About Our Expertise

We are a specialized manufacturer in load monitoring with extensive experience in the load measuring industry. We have dealt with every application that requires a professional solution. Our skilled engineers assist customers globally, providing technical expertise and support onsite.

We offer a wide range of tension and compression load cells from 250 Kgs to 600 Tonne, available for purchase or rental. All equipment is supplied complete with calibration and proof test certificates, manufactured under a certified ISO9001 quality system.

Product Description

All our load links are manufactured from anodized aerospace grade aluminum. Combined with our full O-ring sealing, this provides superior ingress protection of IP67, ensuring reliability in harsh environments.

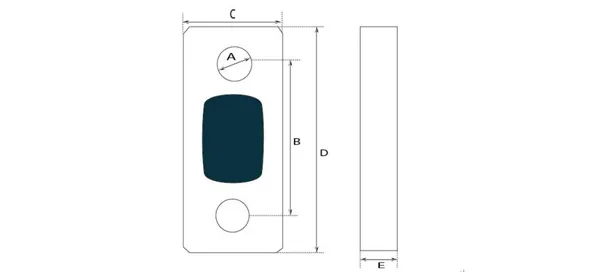

Capacity	A	B	C	D	E	Weight
2.5t	23	215	38	270	25	2.4
5t	27	240	38	292	38	2.6
12.5t	44	226	130	324	50	5.3
25t	55	240	134	360	70	7.1
35t	62	290	140	440	70	9.4
50t	78	298	163	476	85	15.0
75t	86	306	190	500	100	17.0
100t	100	346	196	556	124	26.1
150t	120	396	244	680	127	47.1
200t	132	442	280	784	150	79.0
250t	146	460	300	844	150	TBA
300t	160	582	400	1000	150	TBA
400t	180	614	400	1098	200	TBA
500t	190	600	490	1100	200	TBA

* All sizes in mm/kg. Please confirm critical dimensions before ordering.

🚀 Key Features & Advantages

360° (600m) radio signal transfer with internal antenna
Linear construction for optimal accuracy

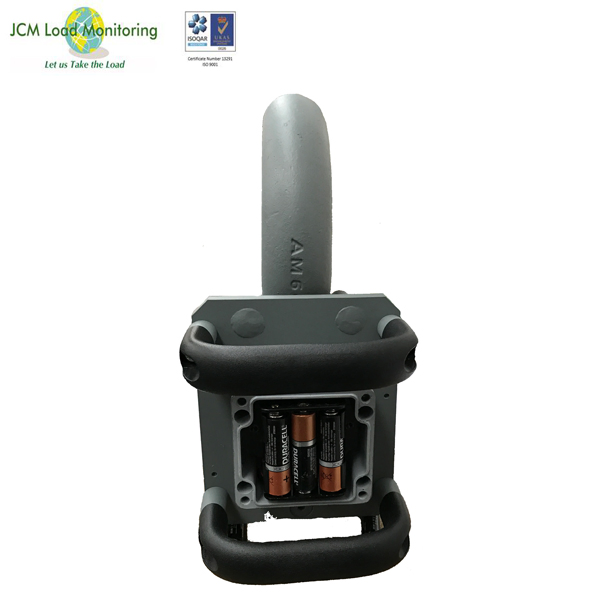

Extended battery life: Up to 500 hours with simple change-out
Durable performance under harsh weather (rain, snow, dust)
Compact, lightweight structure from aerospace aluminum
High safety factor (5:1) for maximum protection
Industry-leading accuracy: 0.1% for full range
Integrated overloading alarm system

📍 Application Areas

Ideal for quality control and heavy load monitoring in: SHIPYARD, CRANE MANUFACTURING, IRON & STEEL, METALLURGY, SPACECRAFT MANUFACTURING, AUTOMATION, RAILWAY PRECAST BEAMS, and HARBOR CRANES.

📦 Ordering & Shipping

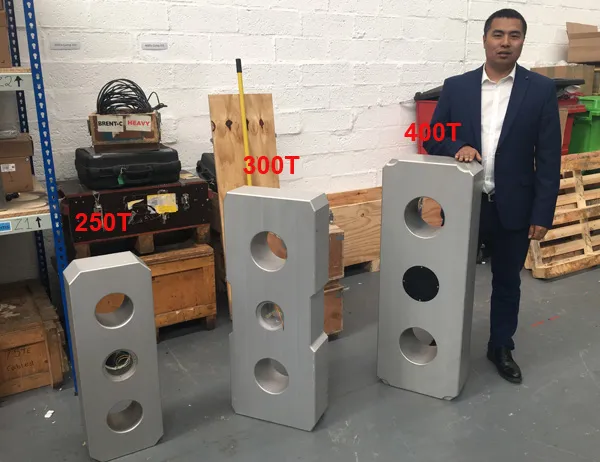

Units are available from 2.5t to 500t.

2.5t to 50t units: Supplied in an IP67 transit case.
75t to 500t units: Supplied in a hinged wooden transit case.
Shipping: Air shipping recommended for urgent/small orders; Sea shipping for large quantities.

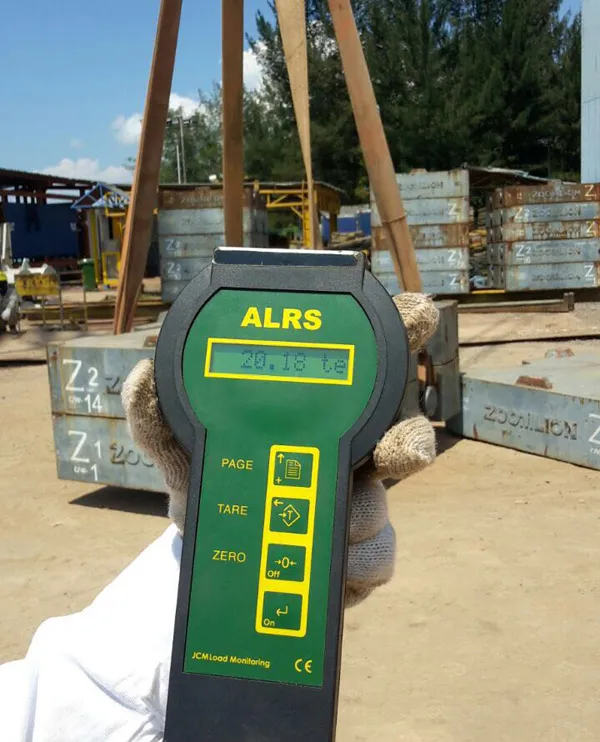

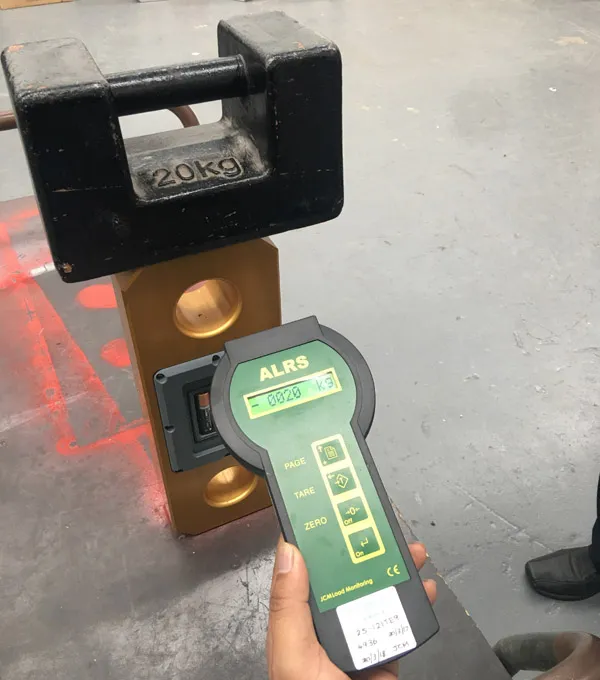

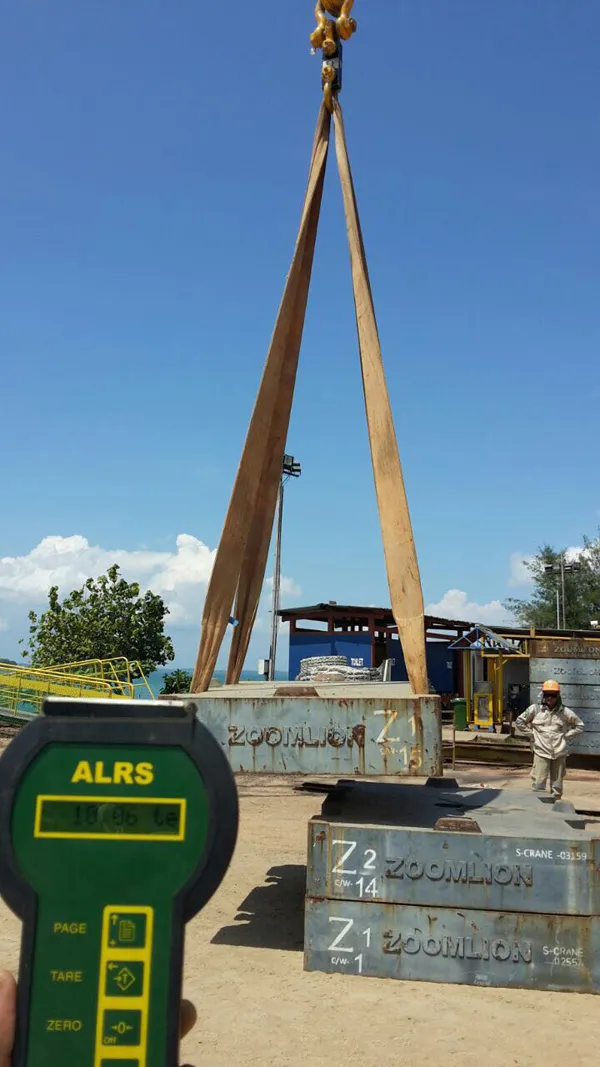

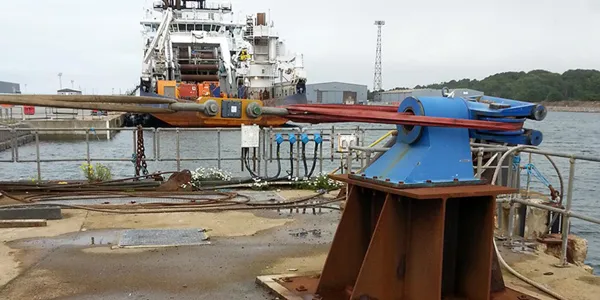

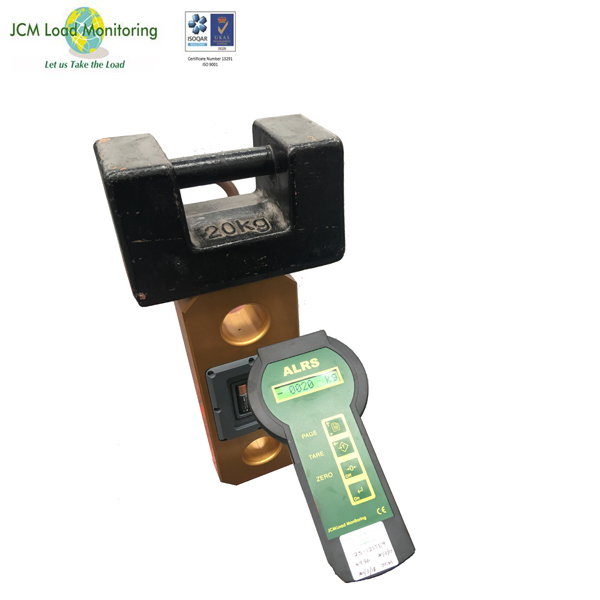

🖼️ Product Showcase

❓ Frequently Asked Questions

Q1: What is the maximum wireless range for the telemetry signal? A: The system provides a 360° radio signal transfer with a range of up to 600 meters, featuring an internal antenna for better protection.

Q2: Is the load link suitable for outdoor use in rain or snow? A: Yes, it is built with an IP67 rating and O-ring sealing, making it workable under harsh weather conditions such as heavy rain, snow, and dust.

Q3: What material is used for the construction of the load cell? A: All load links are manufactured from anodized aerospace grade aluminum, ensuring a very light weight while maintaining high strength.

Q4: How accurate is the load measurement? A: The load links provide an accuracy of 0.1% for the full range, and each unit is supplied with a specific calibration report.

Q5: What is the safety factor of these load links? A: We ensure a safety factor of 5:1 across our range to guarantee safety performance during heavy industrial lifting operations.

Q6: What capacities are available for order? A: Standard units are available from 2.5 tonnes up to 500 tonnes, with specific packaging provided based on the unit size.
