Micro diaphragm liquid/vacuum pumps are based on a simple principal: the circular power from the motor is converted into oscillating movement by an eccentric, which moves up and down its central point. This motion is transferred to a diaphragm by means of a connecting rod, which in conjunction with an inlet and outlet valve creates a pumping action.

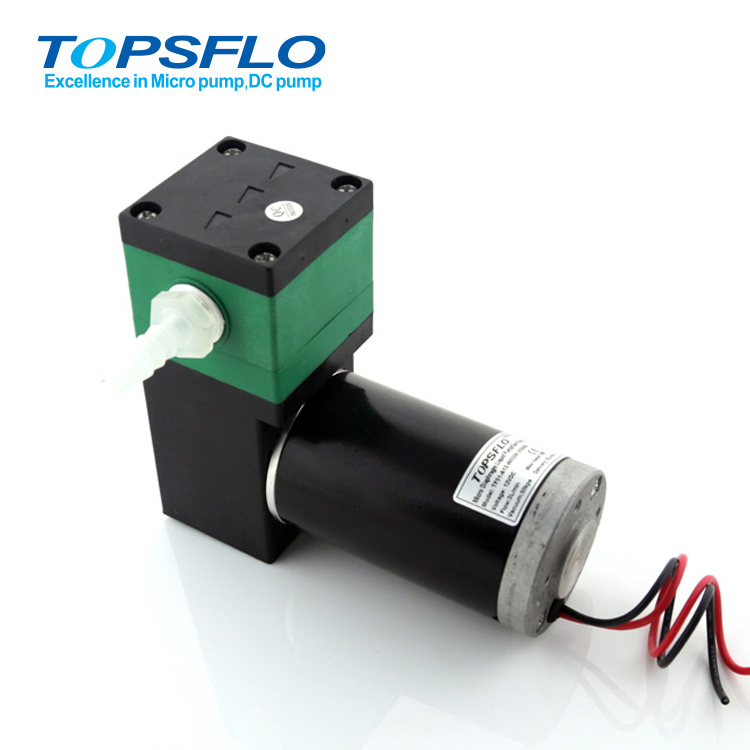

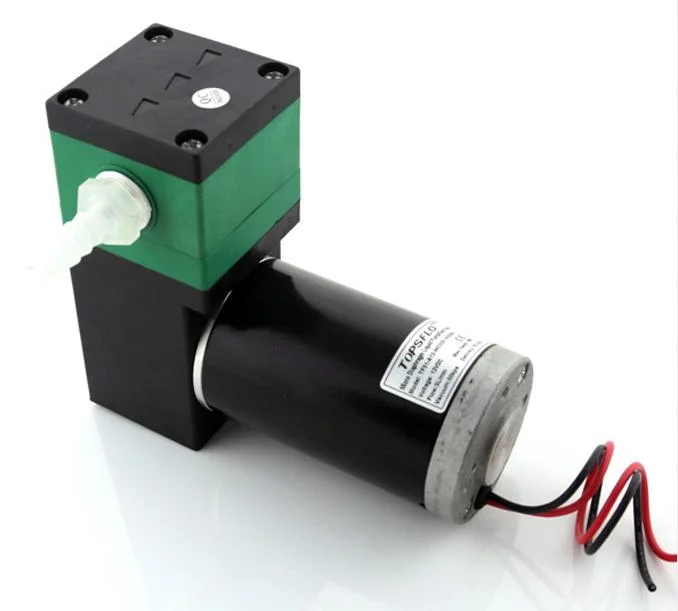

The TF51 Series offers multiple component configurations allowing them to be used for vacuum operation, liquid transfer, or alternating operations. The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter, and longer with high efficiency.

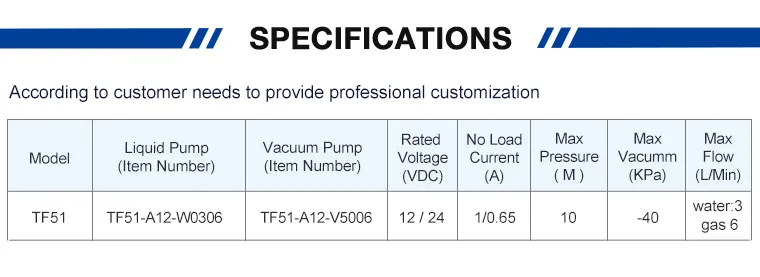

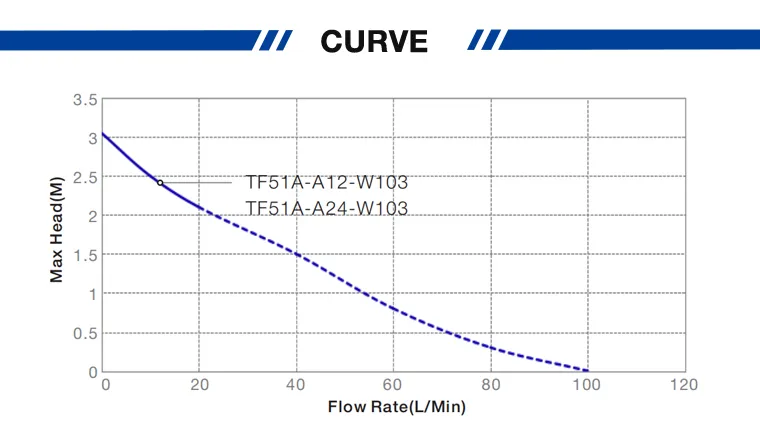

These pumps can be mounted in any position and deliver up to 3 l/min depending on the model, operating against pressures of up to 10M.
The versatility of these pumps allows for a wide field of applications including:
