Basic Info.
Output Signal
Digital Type
Package
Standard Export Package
Product Description
Excavator Weighing System Overview
The system is suitable for excavators operating in various demanding environments, offering multiple weighing modes to ensure accuracy and efficiency:
Manual Stroke: Default digging low, high, and standard gears are selectable or customizable.
Automatic Travel: Automatically recognizes the boom height and switches gears seamlessly.
Static Weighing: Designed to meet the requirements of extreme working conditions.
Technical Parameters
✓ Instrument Power: DC 15-30V & 3A
✓ Oil Pressure Signal: 0-20mV

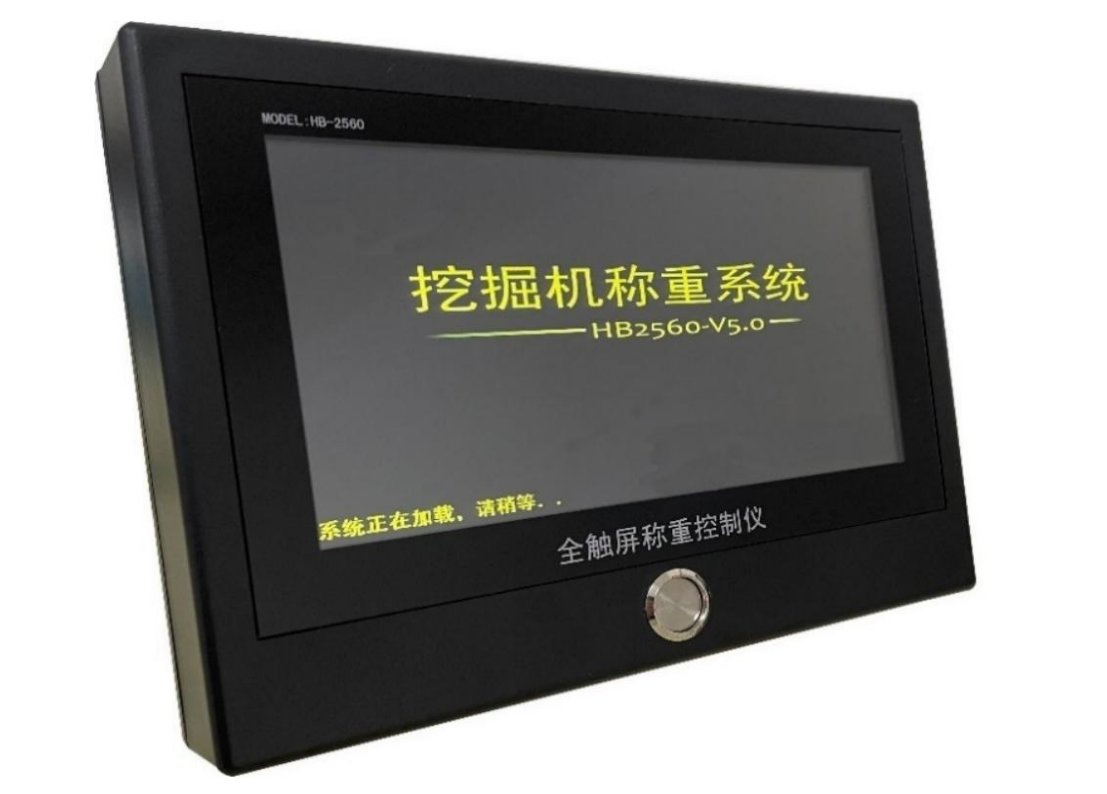

✓ Touch Display: 7-inch 24-bit color capacitive screen
✓ Voice Function: Soft voice broadcast for weights and operations
✓ Keyboard Input: Specialized vehicle weighing input (English/Chinese)
✓ Data Storage: Query up to 80 vehicle loading records
✓ Protection: Real-time monitoring of voltage, sensor data, and temperature
✓ Alarm System: Limit alarms for excavator joints and loading weight

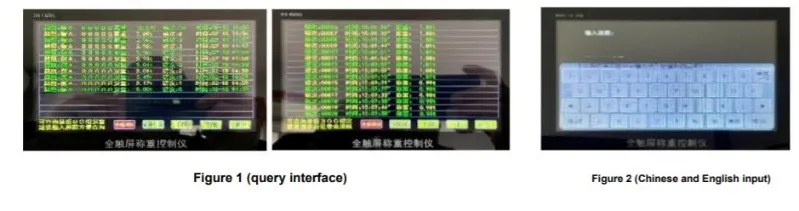

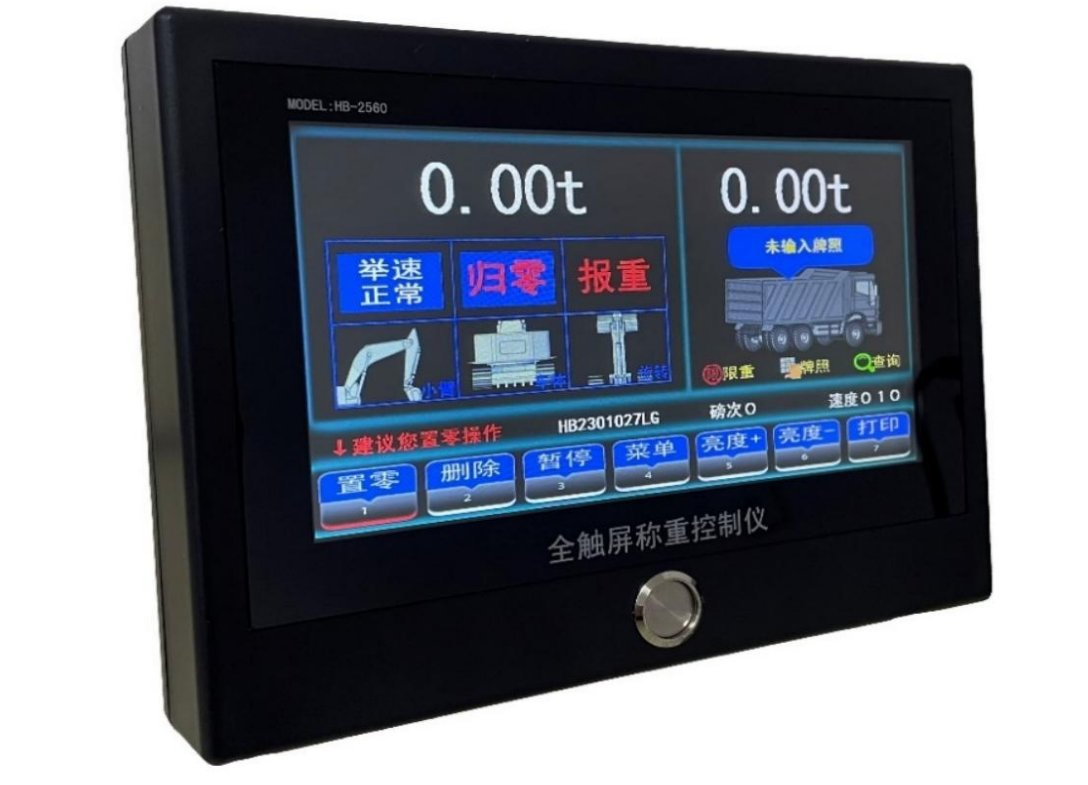

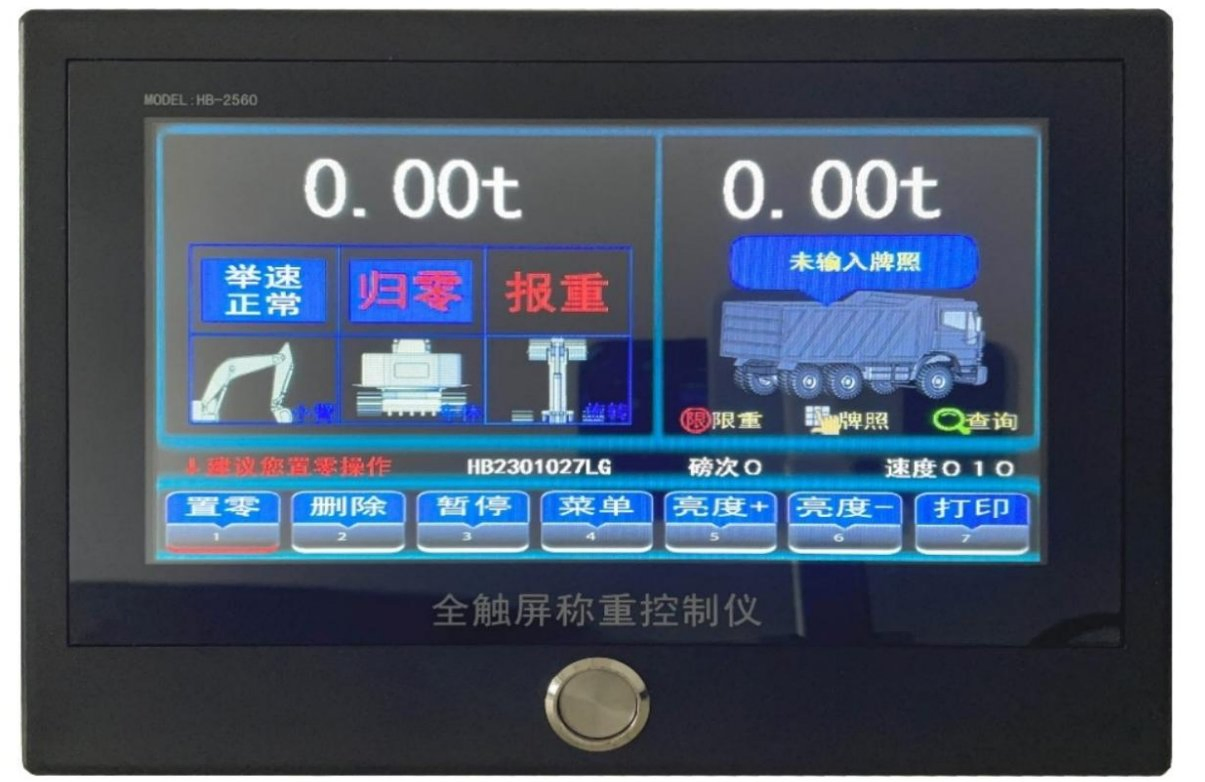

The Main Interface of the Instrument
Simple drawing theme interface
Real-time status and weight display

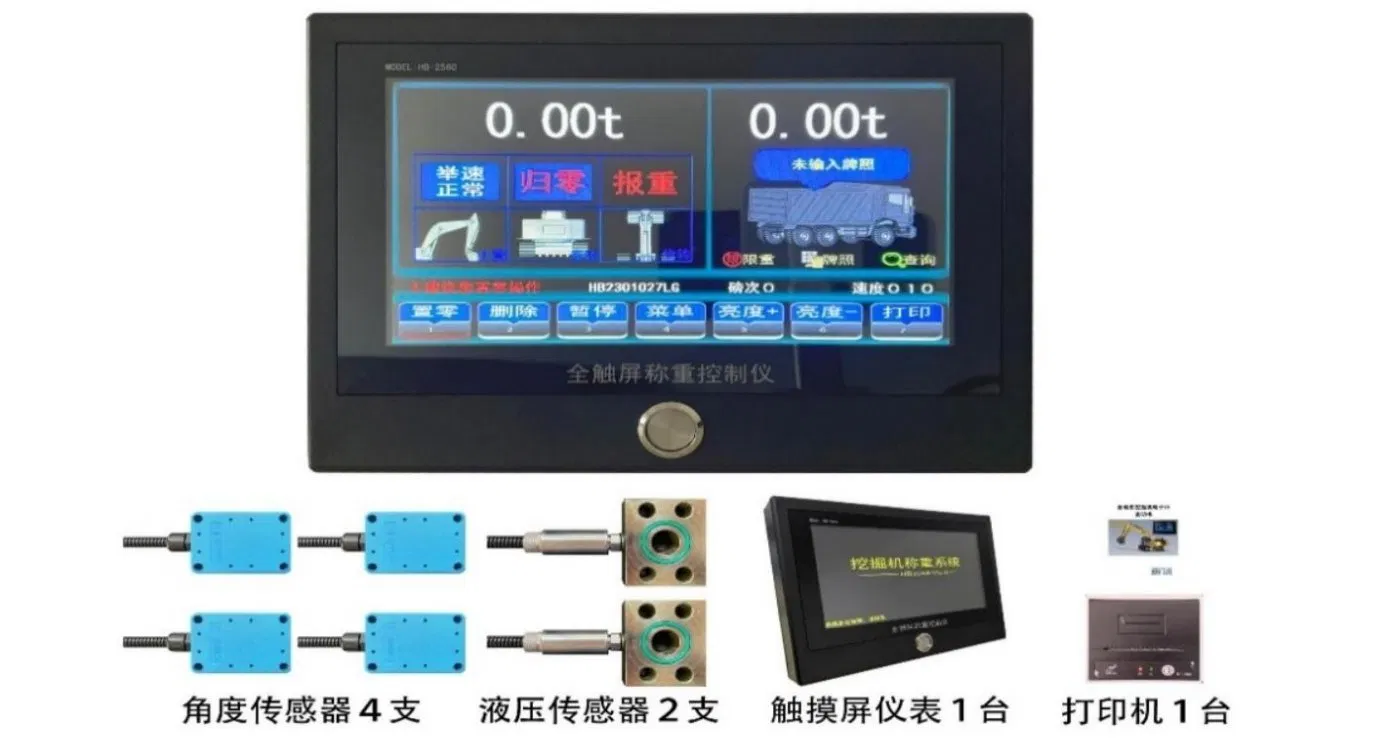

System Accessories & Components
Frequently Asked Questions
What are the power requirements for the weighing instrument?
The instrument operates on a DC power supply of 15-30V with a 3A current.
Does the system support automatic weighing during operation?
Yes, the system features an "Automatic Travel" mode that recognizes the boom height and switches gears automatically for seamless weighing.
How many loading records can be stored in the device?
The system can store and query loading records for approximately 80 vehicles, which can also be filtered and printed.
Is the display readable during night-time operations?
Yes, the 7-inch color touch screen includes a fast brightness adjustment feature to make it more eye-friendly for night use.
What kind of alarms or alerts does the system provide?
The system provides voice reminders for weight limits, zero-setting prompts, and alarms if the excavator body or joints exceed safety limits.
What is the environmental protection rating of the hardware?
The system carries an IP65 rating, ensuring protection against dust and water ingress in typical working environments.
