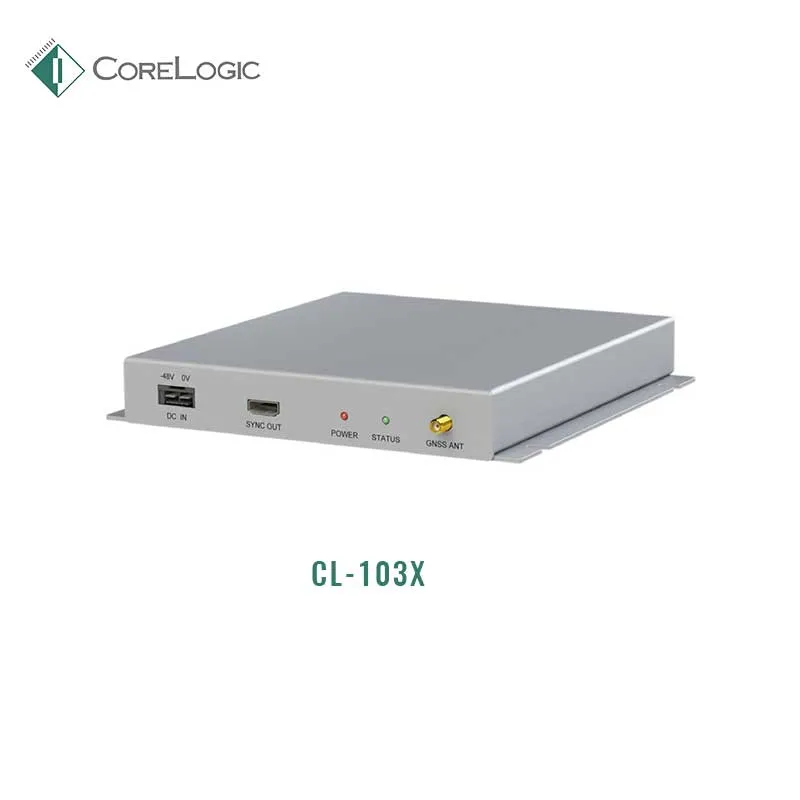

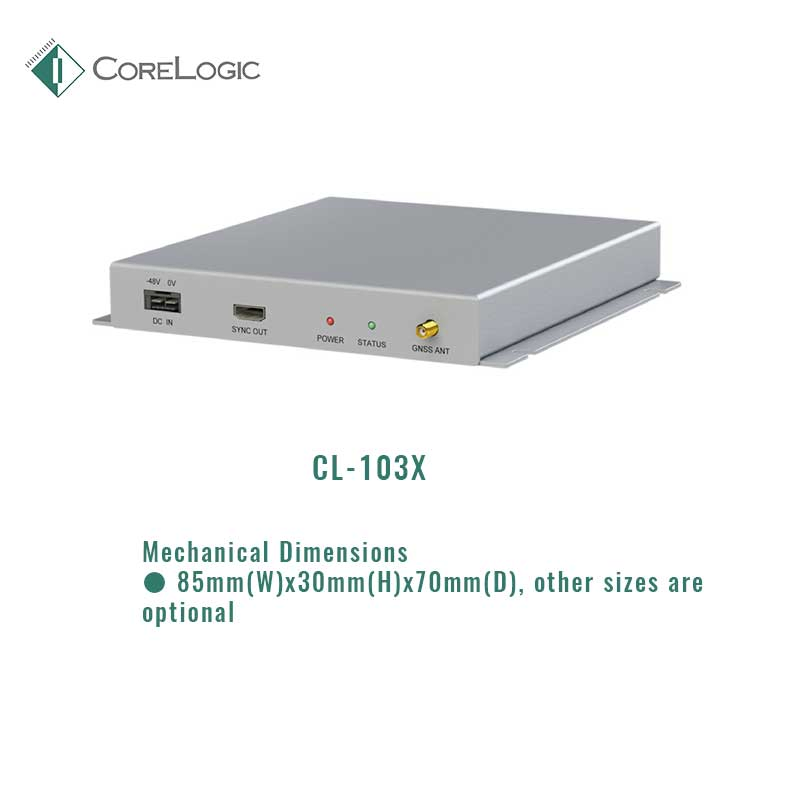

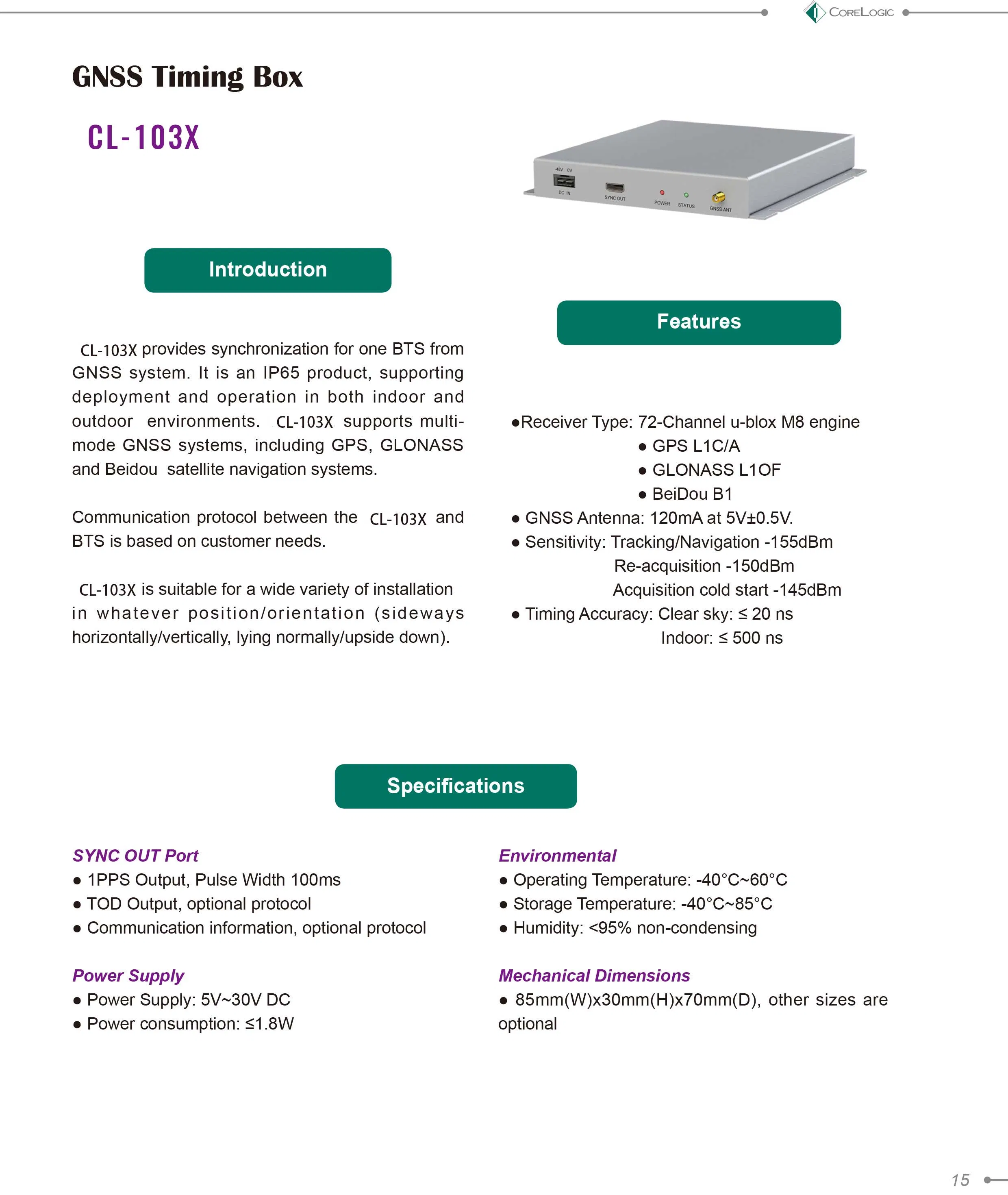

CL-103X provides synchronization for one BTS from GNSS system. It is an IP65 product, supporting deployment and operation in both indoor and outdoor environments. CL-103X supports multi-mode GNSS systems, including GPS, GLONASS and Beidou satellite navigation systems.
Communication protocol between the CL-103X and BTS is based on customer needs.
CL-103X is suitable for a wide variety of installation in whatever position/orientation (sideways horizontally/vertically, lying normally/upside down).
Features:
| SYNC OUT Port | Environmental |
| * 1PPS Output, Pulse Width 100ms * TOD Output, optional protocol * Communication information, optional protocol |
Operating Temperature: -40°C~60°C Storage Temperature: -40°C~85°C Humidity: <95% non-condensing |
| Power Supply | Mechanical Dimensions |
| * Power Supply: 5V~30V DC * Power consumption: ≤1.8W |
85mm(W)x30mm(H)x70mm(D), other sizes are optional |

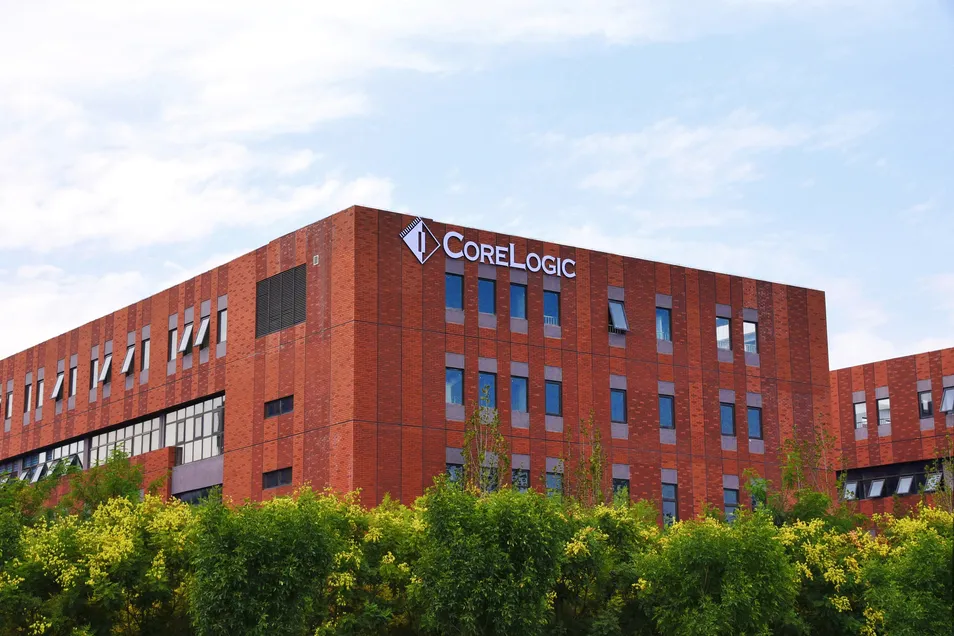

Founded in 1998, the company is a specialized manufacturer of telecommunications equipment and electromagnetic components, supported by an experienced in-house R&D team.
The company began its journey in the wireline telecom sector, starting with ISDN technology. Over the years, a diverse portfolio has been developed including ISDN access terminals, xDSL filters and splitters, electromagnetic components, and media converters.
Since 2012, focus has strategically shifted from wireline telecom to wireless networking solutions. The current product range includes:

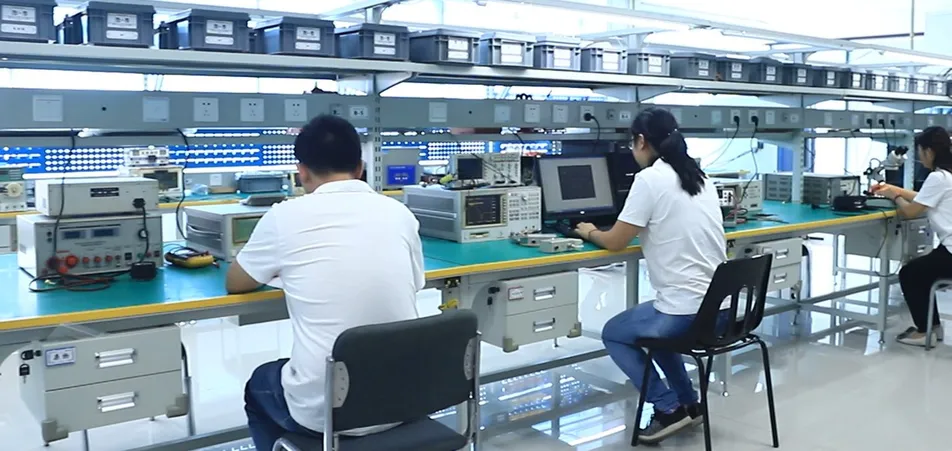

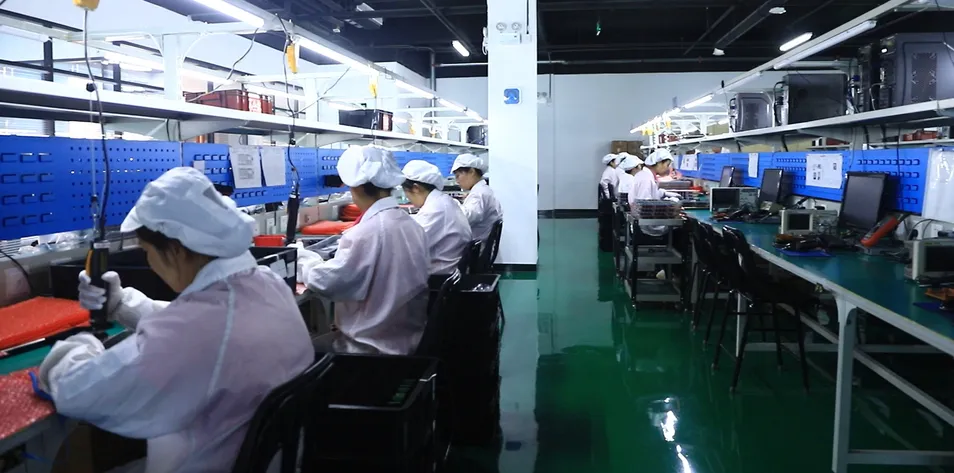

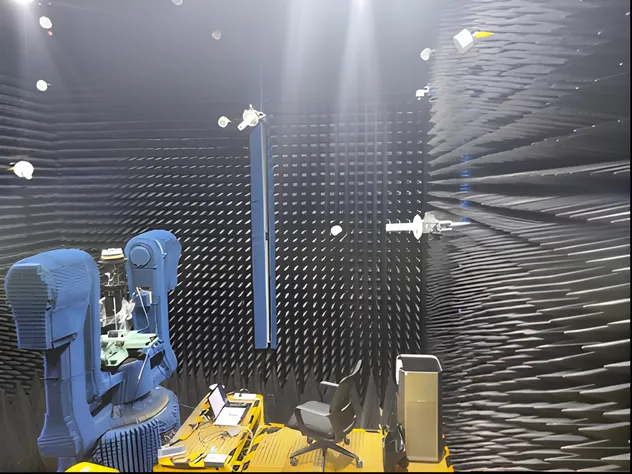

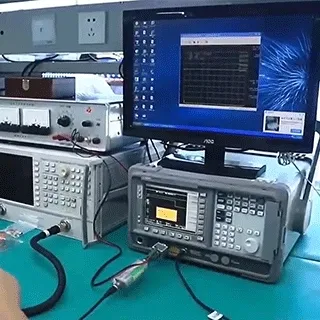

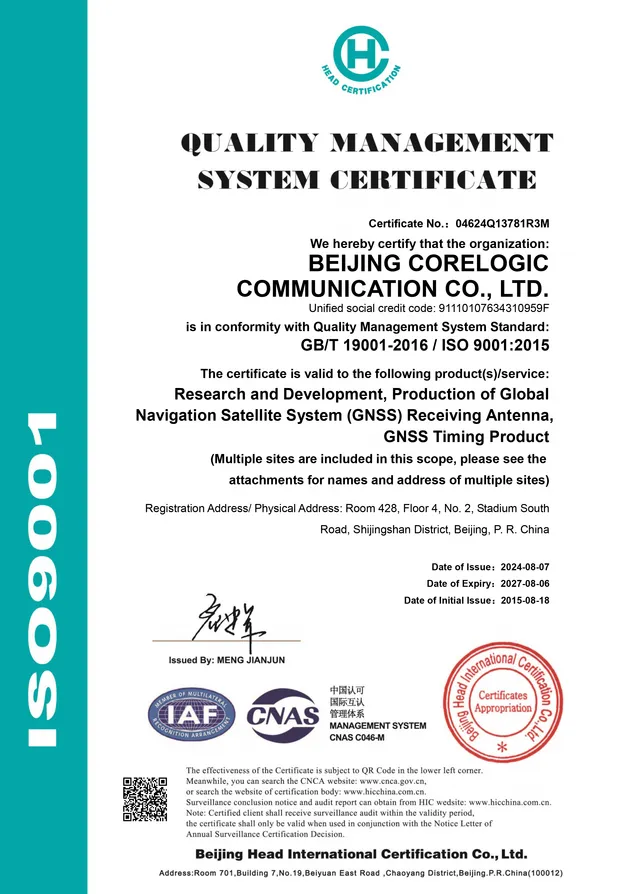

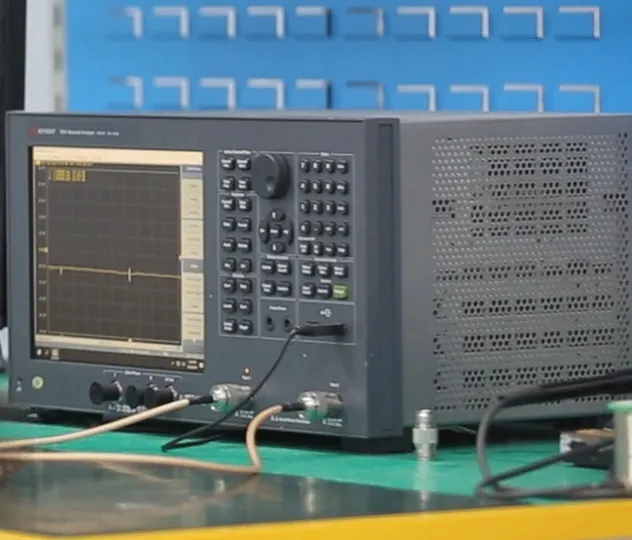

The production facilities are equipped with advanced manufacturing lines and operate under a comprehensive quality assurance system certified to ISO 9001, ISO 14001, and ISO 45001.
A successful business is built on responsibility, respect, and a shared sense of belonging. Commitment to protecting the environment, conserving energy, and reducing emissions is paramount, while maintaining a clean, well-organized, and safe production environment.
For nearly three decades, a workplace where colleagues feel like family has been fostered. Annual team-building events—ranging from sports activities to cultural outings—have become a cherished tradition, strengthening bonds across the company.
