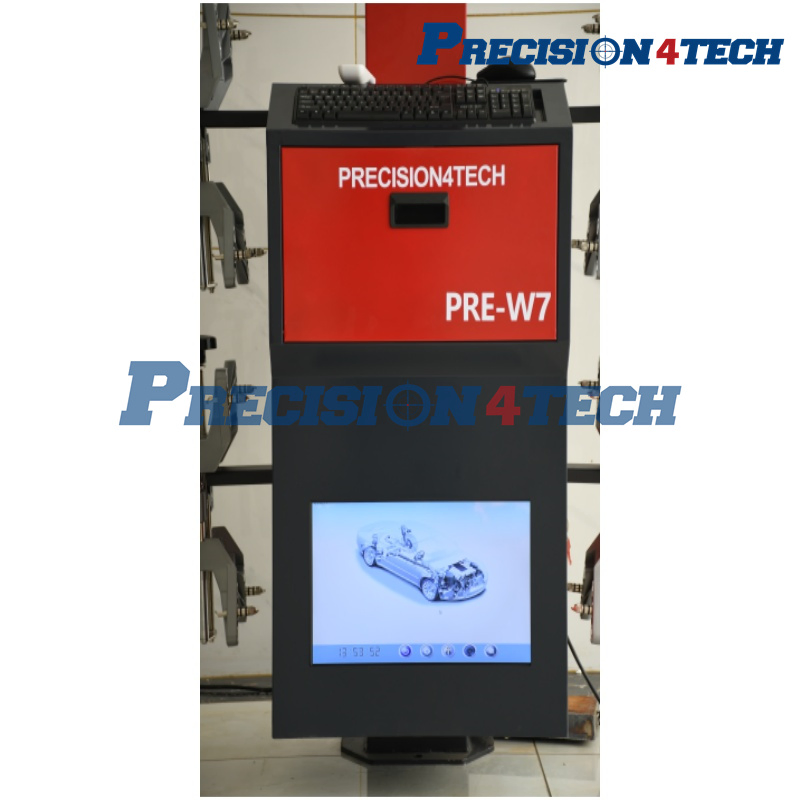

New Promotion High-Definition Wheel Balancing and Alignment Equipment

1 / 5

New Promotion High-Definition Wheel Balancing and Alignment Equipment

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.	PRE-W7
Type	3D Wheel Alignment
Certification	CE, ISO
Communication Mode	Infrared Wireless Communication
Structure	Electronic
Standard	Standard
Condition	New
Power Supply	380V/220V
Weight	200kg
Application	4s Shop/Garage/Service Station
Software	Independent
Language	Multi-Language
Package	Wooden Case
Package Size	290.00cm * 70.00cm * 140.00cm
Gross Weight	245.000kg

📦 Product Description

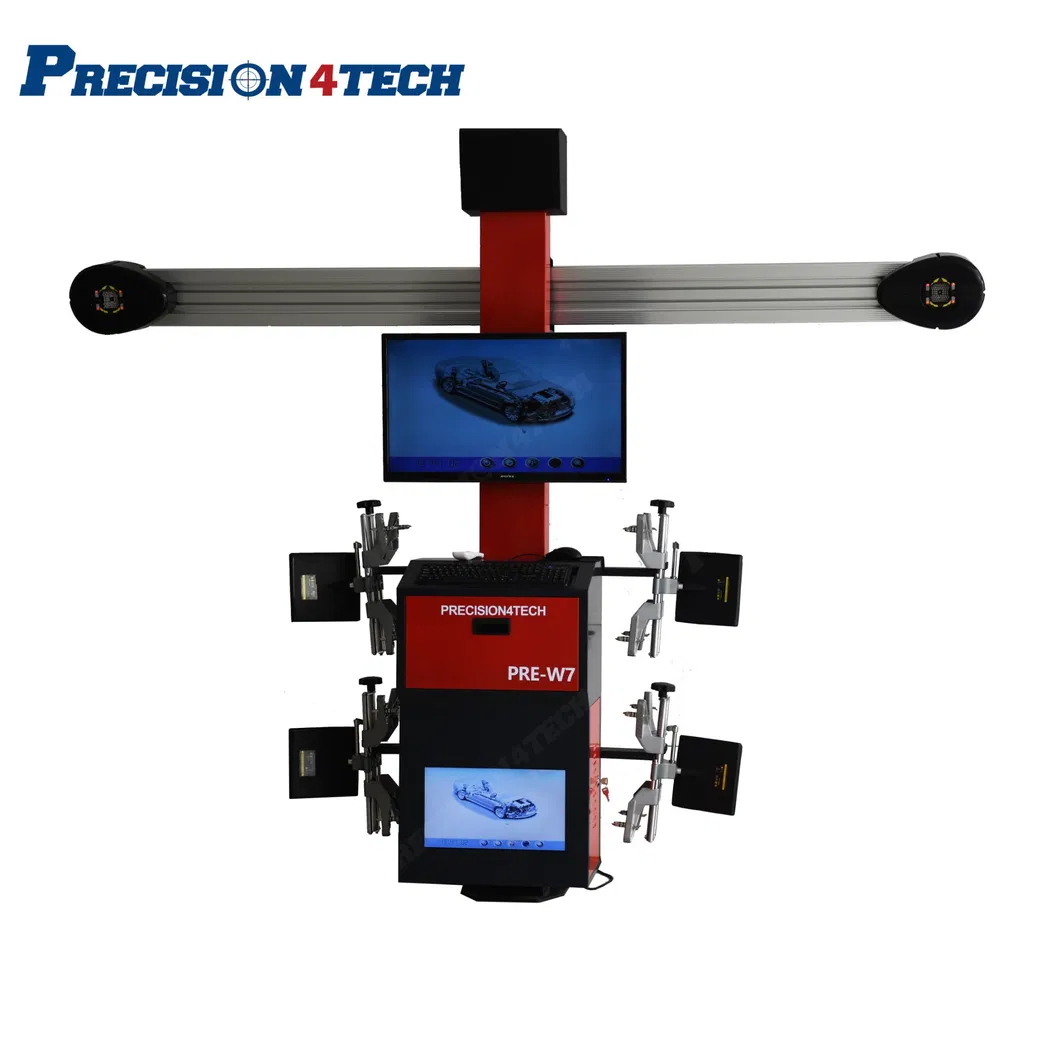

Standard Configuration

5 million pixels camera

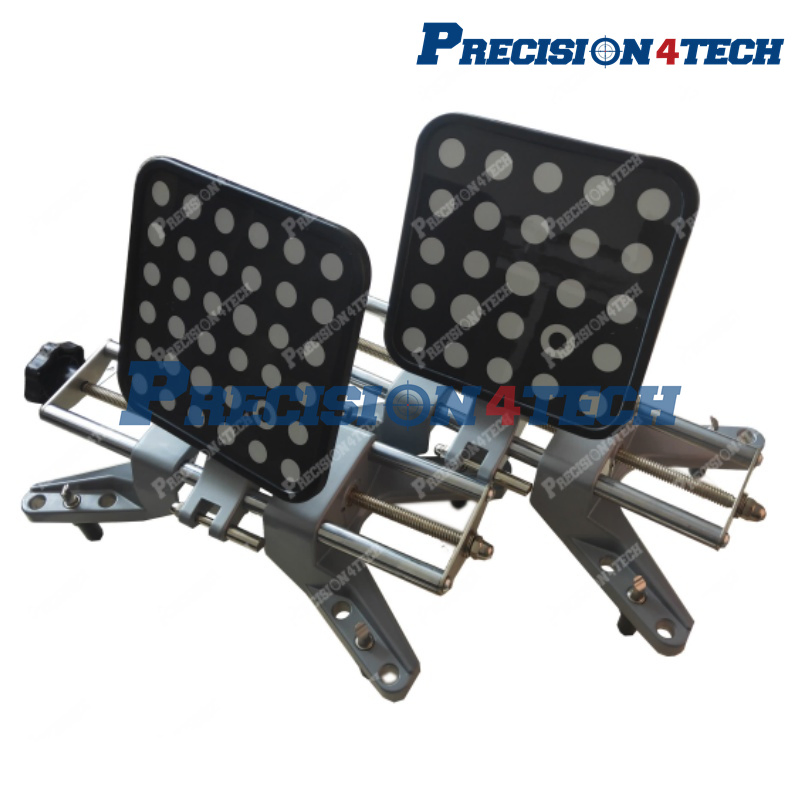

Waterproof target plates
Dell computer
Luxury cabinet with two screens (32 inch LED TV and 19 inch monitor)

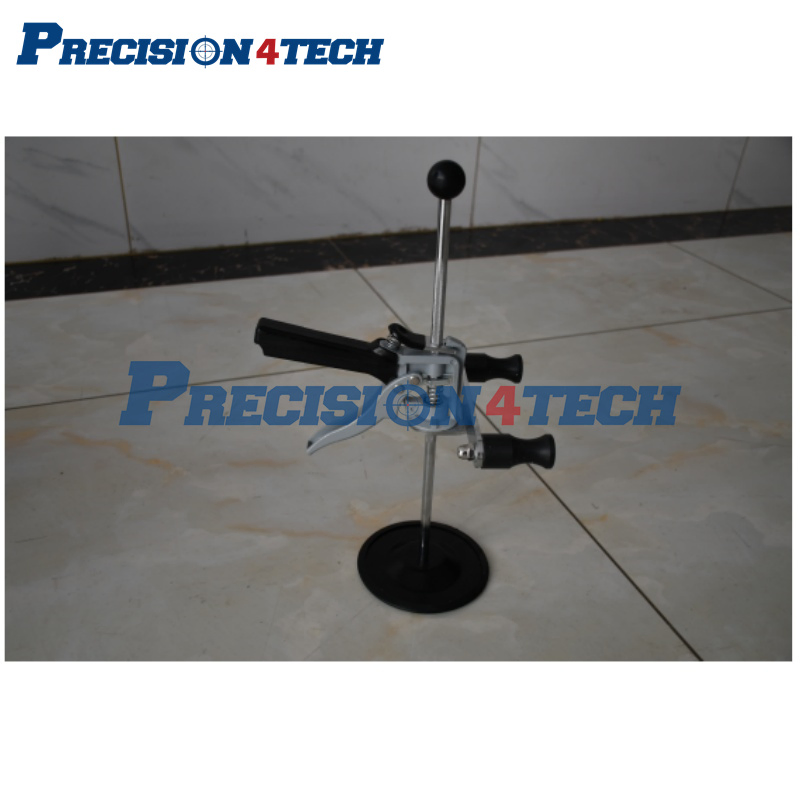

4-points clamp, Brake fixer, Steering Wheel fixer, Wedge pads

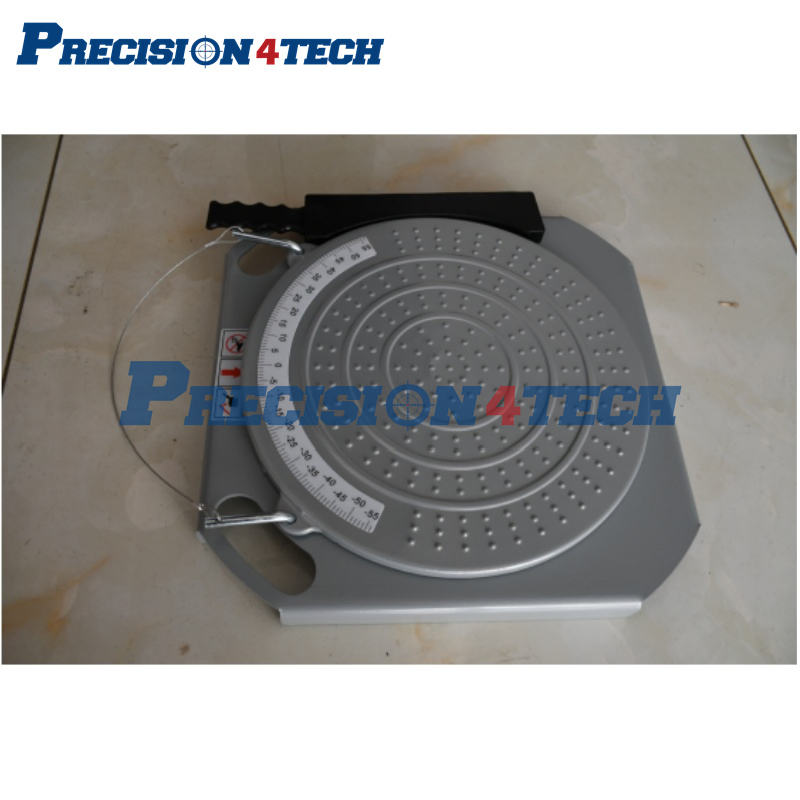

Steel Turntables, Turntable transition blocks, voltage stabilizer
Printer (optional)
Packing: Wooden case

Basic Functions

Measurement of parameters: Toe-in & Toe-out, Camber, Caster, SAI, Total Toe, Kingpin inclination, Set back, Thrust angle.

Extensive Functions

Free to push cars, setting cars distance
Up adjustment function
Body Dimension Measurement
Axle distance measurement, Removing Tire Adjustment
Steering Wheel Adjustment, Engine Bay Adjustment
Toe Curvature Measurement, Lock Toe Adjustment

Product Advantages

Small compact cabinet for flexible placement
Economical standard installation with two screens (19" LCD and 32" TV)
Manual Movable Camera beam
New slide-type back hanging design: Beam height adjustable (80-120cm or 200-240cm)
Double camera combined with four target disks for revolutionary measurement
Target disk device: No electronic components, eliminating circuit failure
One-time calibration after installation, simple process
No steel ring compensation needed, shortening measurement time
Easy software operation, data read within two minutes
One-click restore system and free software upgrades

📊 Technical Specifications

Item	Accuracy	Range
Total toe	±0.01°	±40°
Camber	±0.01°	±45°
Caster	±0.02°	±45°
SAI	±0.02°	±45°
Thrust angle	±0.01°	±45°
Set back	±0.01°	±40°
Max turn angle	±0.02°	±50°

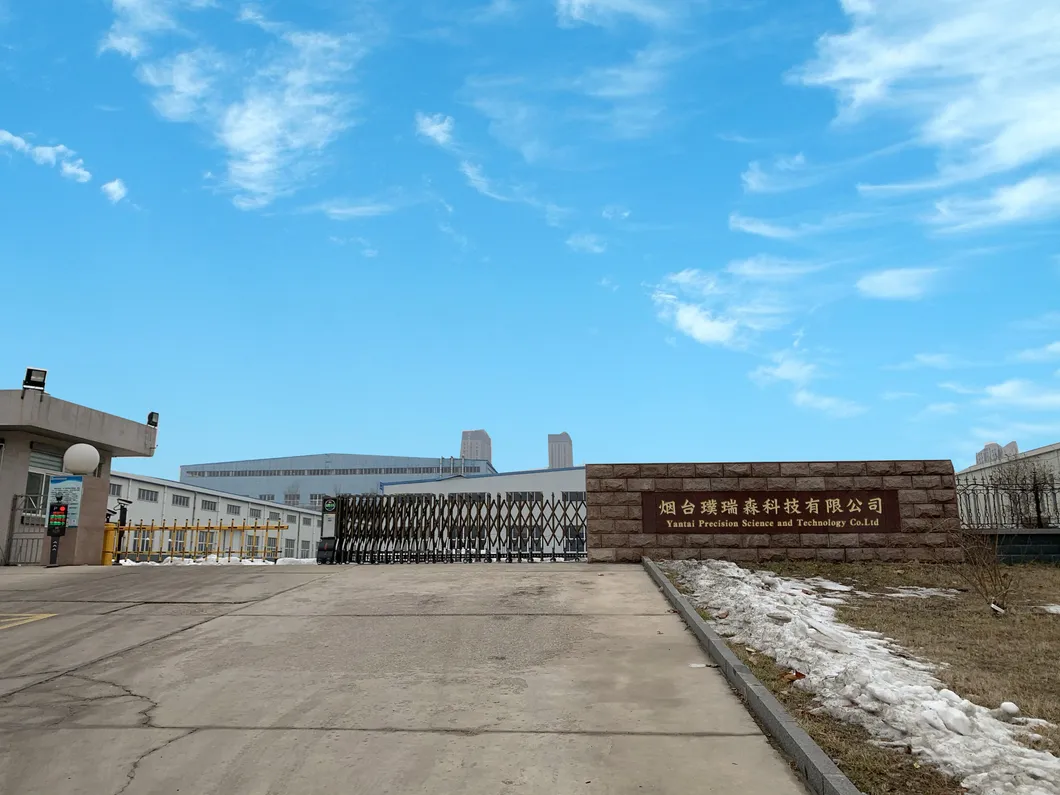

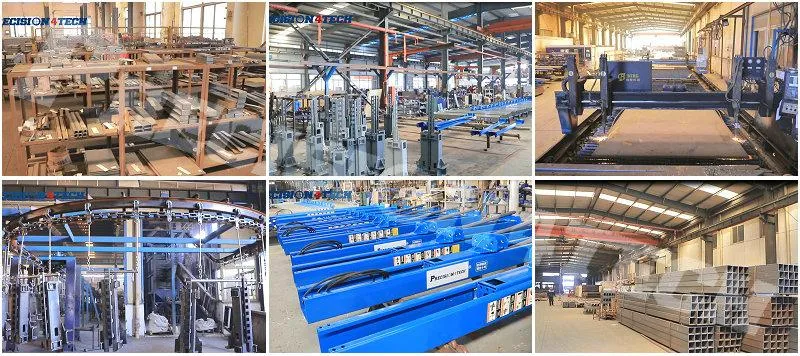

🏭 Factory Overview

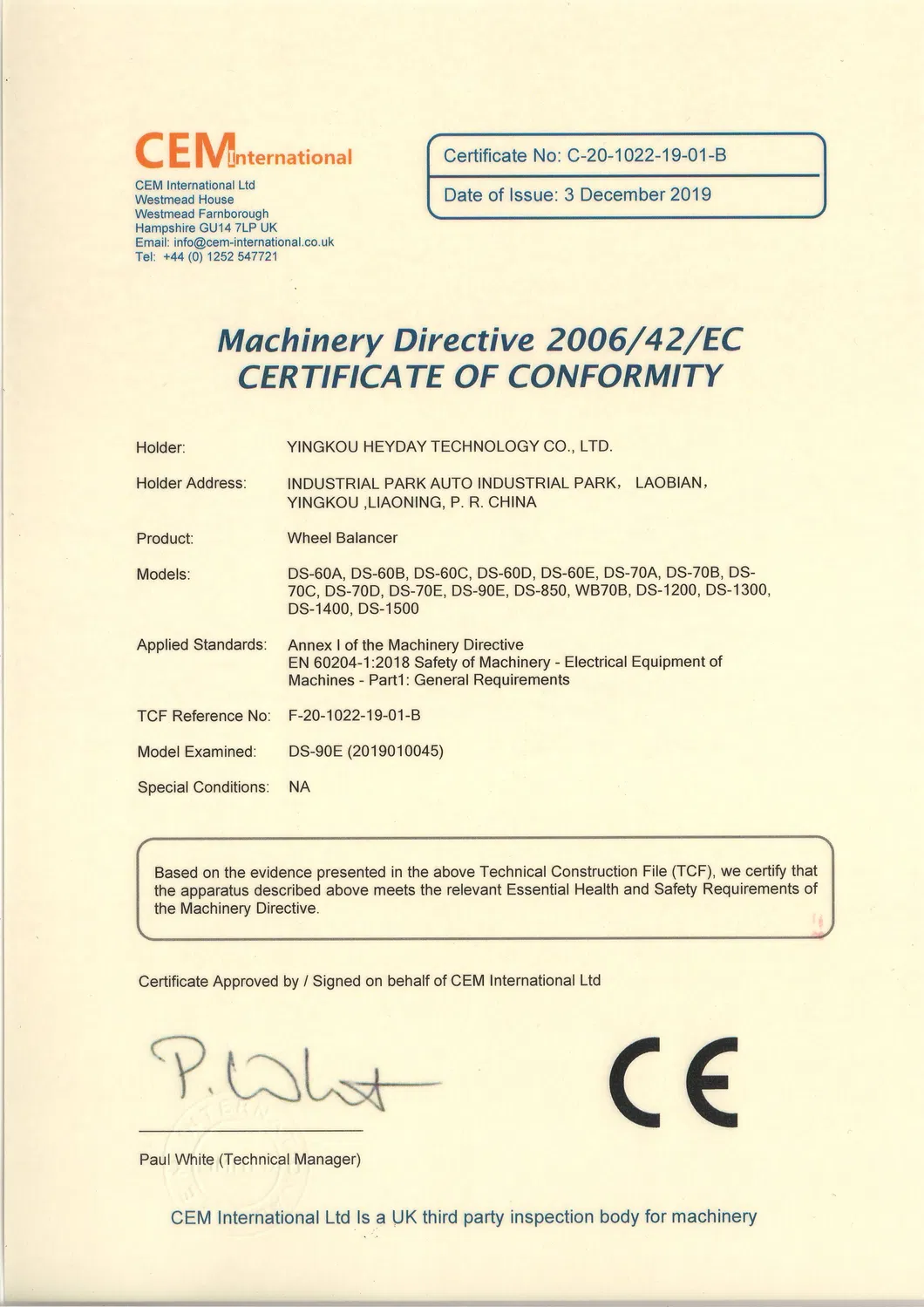

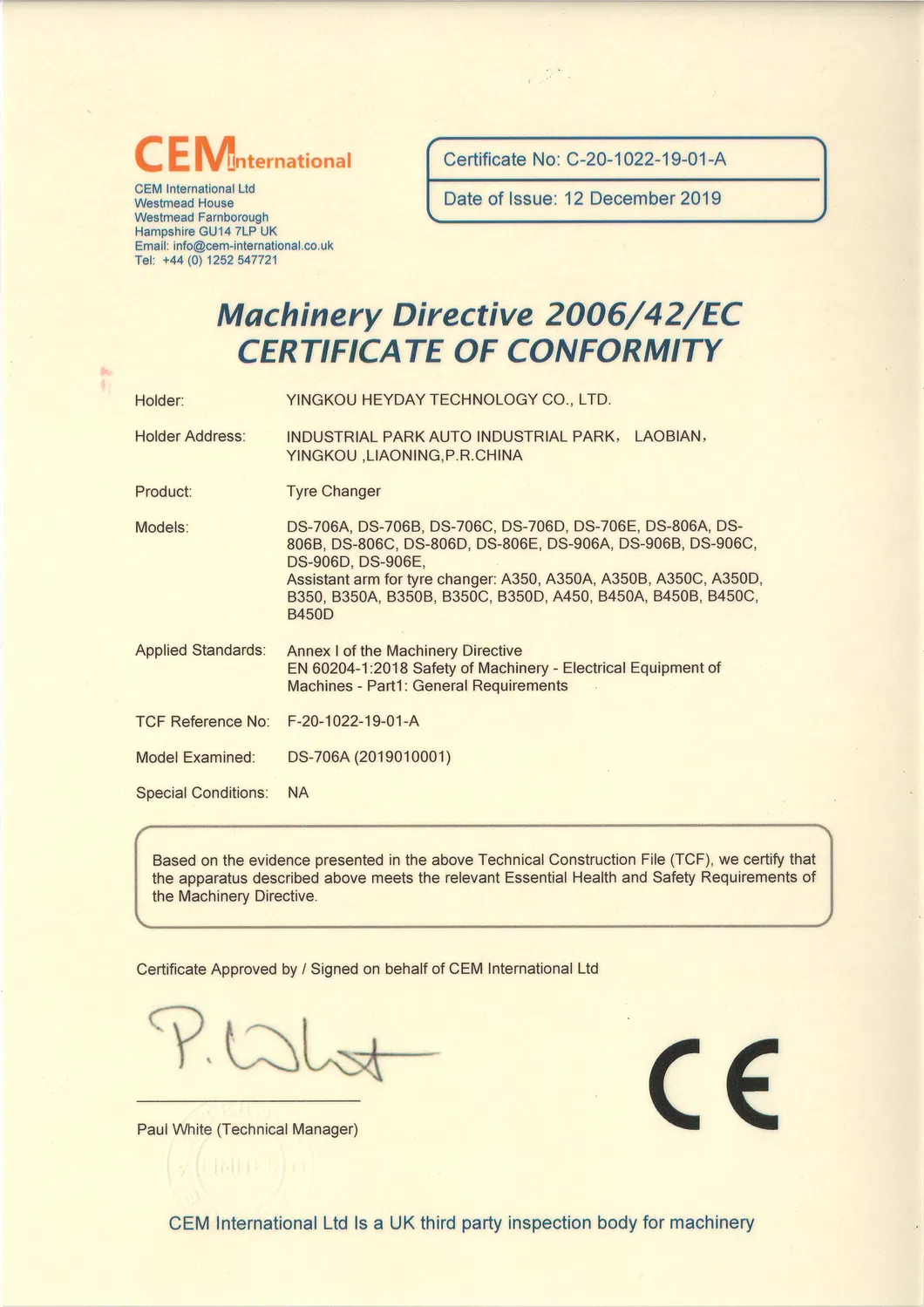

📜 Certifications

🏢 Profile & Experience

Starting as machinery manufacture in 2003, focus has remained on manufacturing auto lifts and auto body collision repair benches and parts. Over time, standard and customized paint booths have been integrated into the business line.

Experience is the most competitive factor. With experienced consultants having over 50 years in garage workshop design and after-sale service, practical solutions are provided for both end users and producers. The team is spread across technique, production, sales, and export departments to ensure high-quality products and correct procedures.

Tested by CE and ISO9001, products have been shipped globally to North/South America, South East Asia, Africa, Middle East, Europe, and Asia. Both OEM and ODM are acceptable.

⭐ Our Advantages

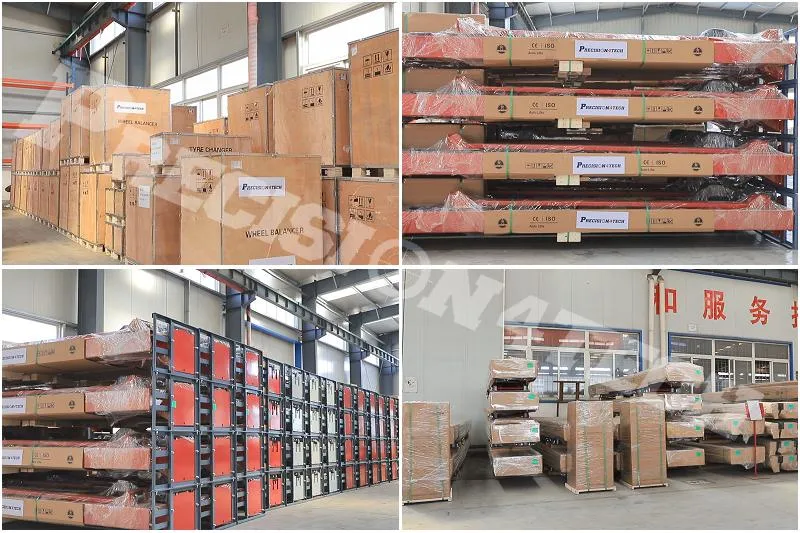

🚢 Packaging & Shipping

🤝 Exhibition History

Frequently Asked Questions

Q1: What is the main advantage of the 3D wheel alignment system? A: The 3D system uses high-definition cameras to capture target movements, providing higher accuracy and faster measurement speeds than traditional CCD systems. It also requires less maintenance as the targets have no electronic components.

Q2: How does the double screen system benefit the technician? A: The dual-screen setup (32" TV and 19" monitor) allows the technician to view live data and adjustments from various angles around the vehicle, making the alignment process more efficient and user-friendly.

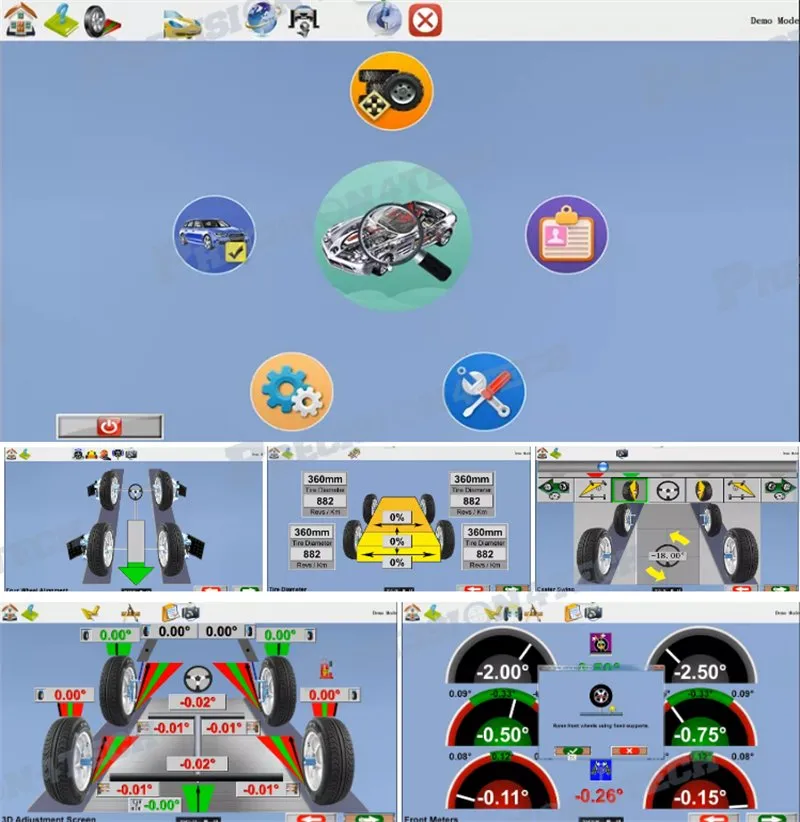

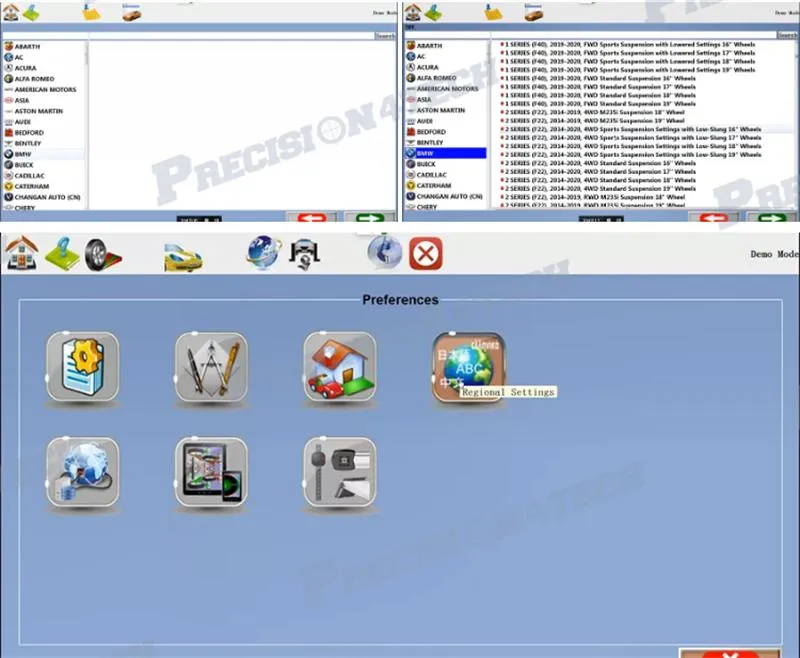

Q3: Is the software difficult to operate? A: No, the software is designed for ease of use. It features an intuitive interface and a built-in one-click restore system, allowing technicians to read four-wheel positioning data within two minutes.

Q4: Does this equipment require frequent calibration? A: After the initial installation and calibration, the equipment typically does not require frequent recalibration, making it a reliable choice for high-volume workshops.

Q5: Can the camera beam height be adjusted? A: Yes, the PRE-W7 features a manual movable camera beam with a slide-type back hanging design, allowing height adjustments in ranges suitable for different types of lifts and platforms.

Q6: What kind of vehicles can this system handle? A: It is suitable for a wide range of vehicles typically serviced in 4S shops, garages, and service stations, offering comprehensive body and axle dimension measurements.
