| Model NO. | GA-B128-6 | Type | Vacuum Centrifugal Concentrator |
|---|---|---|---|
| Load Way | Electronic Load | Loading Method | Dynamic Load |
| Display | Digital | Control | Computer Control |
| Weight | 0-100Kg | Power Source | AC220V |
| Transport Package | Wooden Package | HS Code | 9024800000 |

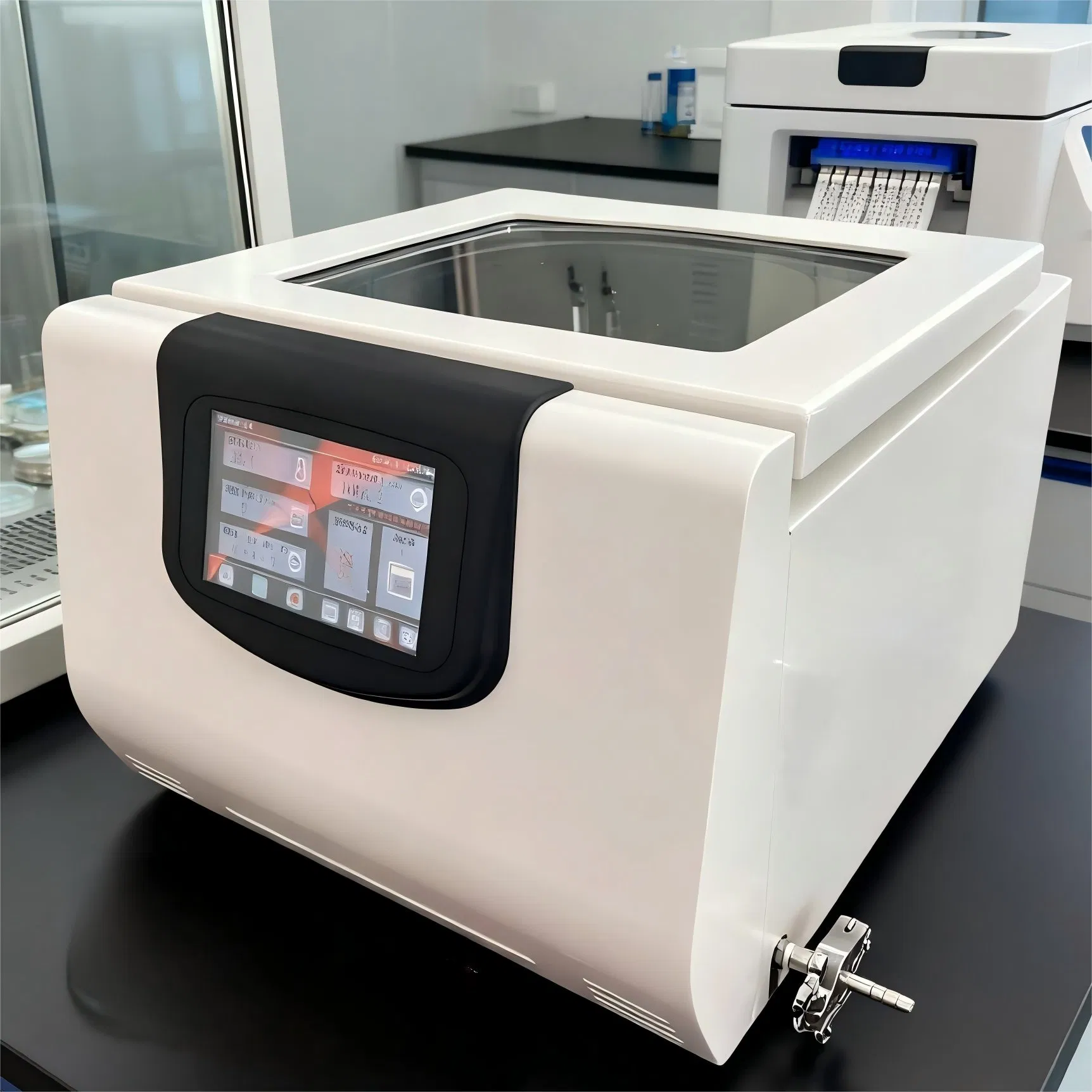

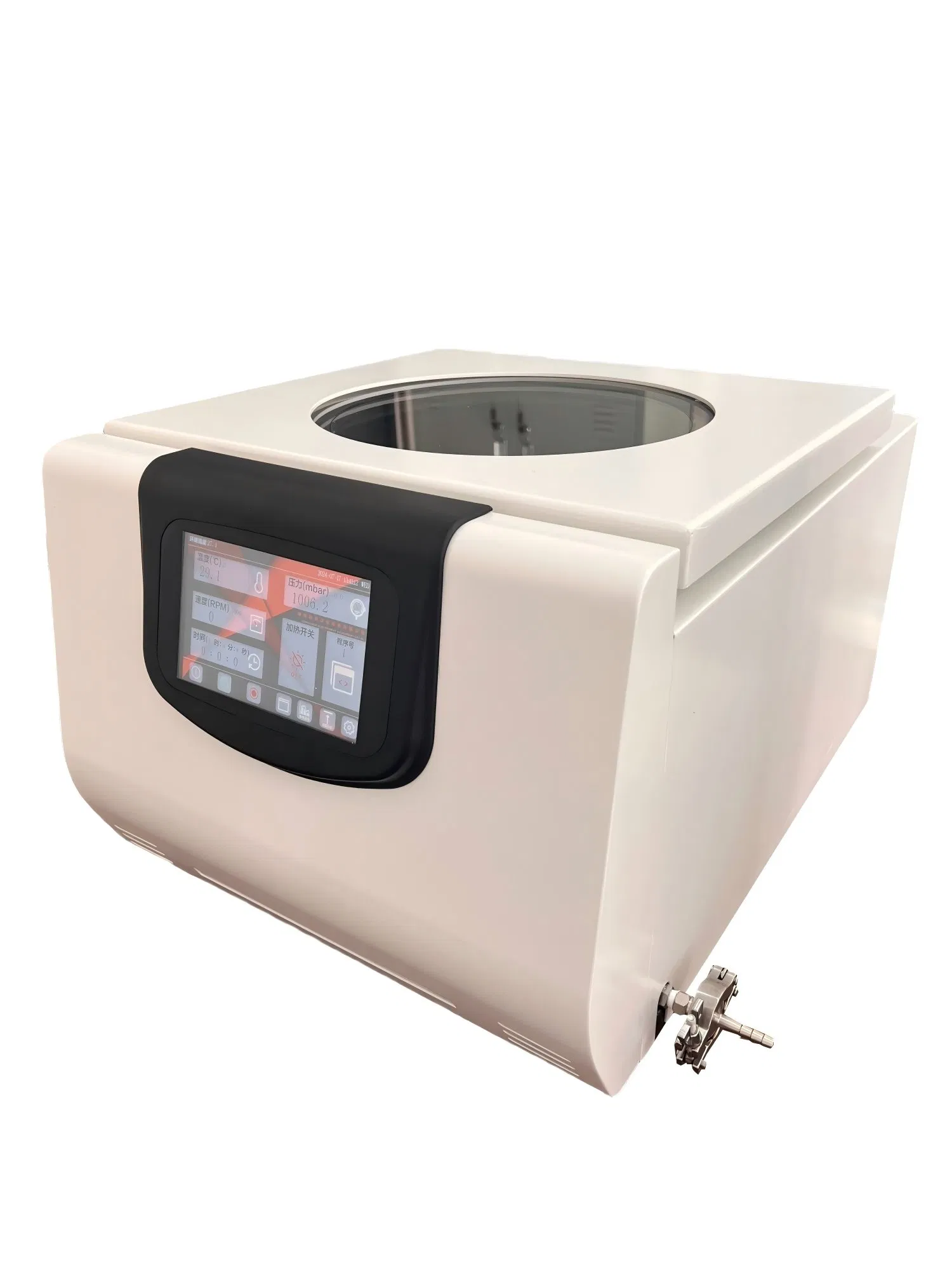

ISO 9001 ISO 13485 Vacuum Centrifugal Concentrator System
The GA-B128 series vacuum centrifugal concentrators are designed to quickly and safely evaporate water and organic solvents from samples. These systems are suitable for chemistry, biochemistry, bioanalysis, food safety, and residue analysis. Key applications include immunoglobulin concentration, drug metabolite concentration, SPE solid-phase extraction, and DNA/RNA purification.
| Host Technical Parameters | |
|---|---|
| Model | GA-B128-6 |
| Speed | 2000 rpm |
| Maximum Power / Current | 3.5 kW / 11 A |
| Temperature Control Range | -20°C ~ +80°C |
| Timer Range | 1 min - 23 h 59 min 59 s |
| Final Vacuum Level | 0.1 mbar |
| Vacuum Port | Φ10 mm |
| Noise Level | ≤60 dB(A) |
| Weight | 90 kg |
| Dimensions (L×W×H) | 490 mm × 660 mm × 380 mm |
| Optional Rotors | |||
|---|---|---|---|
| 62 × 1.5mL | 12 × 5mL | 12 × 10mL | 6 × 50mL |
| 62 × 0.2mL | 24 × 5mL | 18 × 10mL | 2 × 96-well |
| 102 × 1.5mL | 204 × 1.5mL | 20 × 15mL | - |
| Note: Default standard rotor is 62×1.5mL; others available on demand. | |||
