Laboratory Water Purification Systems Ultra Pure Water System

1 / 5

Laboratory Water Purification Systems Ultra Pure Water System

Customization:	Available
Certification:	ISO9001, RoHS, CE
Transport Package:	Standard Export Packing

Send Inquiry

Product Description

MSLUP03 Laboratory-Grade Ultrapure Water Systems

Highest Water Quality for Successful Analyses

Model: MSLUP03 Type: Ultrapure Water Machine

🚀 Product Features

Applicable to various water quality, the case is with powder coating.
Filter element adopts open mold injection technology.
Korean quick-insert filter column for easy replacement and maintenance.
Electrical and waterways are completely separated to avoid circuit failure.
Online water quality monitoring system for immediate measurement.
Automatic RO membrane anti-scaling flushing and automatic stop programs.
Pipeline designed for upgrading water quality and quantity.
Includes portable TDS pen for content, conductance, and temperature testing.
Double electric water intakes (RO and UP water quality), ready to use.
Tool-free filter replacement with front and back open door design.

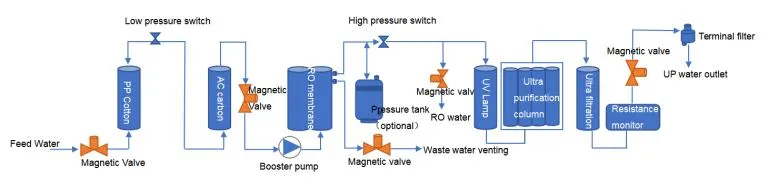

⚙️ Product Principle

📊 Product Parameters

MSLUP03 Specification Details
Type Classification	Standard	Low Endotoxin	Low TOC	Comprehensive
Production Capacity	10/20/30 L/H
Water Requirements	Urban tap water, Inlet pressure: 0.15-0.5mpa, Temp: 5-40ºC
RO Water Parameters
Ion Rejection Rate	97%-99% (with new RO membrane)
Organic Matter Rejection	>99% when MW>200 Dalton
UP Water Parameters
Resistivity (25ºC)	18.2 M Ω/cm @ 25 ºC
Heavy Metal Ion	< 0.01 ppb
Total Organic Carbon (TOC)	< 10 ppb		< 3 ppb
Bacteria	< 0.01 cfu/ml
Pyrogen (Endotoxin)	N/A	< 0.001 Eu/ml	N/A	< 0.001 Eu/ml
Dimensions & Weight	312×475×475mm; Weight: Approx 30Kg
System Configuration	Host machine, 12L pressure tank, TDS pen, Accessories

🔬 Clinical Application

Application Field	Details and Usage
Standard	Physical and chemical testing, biochemical analysis, blood examination, HPLC, IC, GC analysis.
Low Endotoxin	Atomic absorption/emission spectrometry, mass spectrometry, environmental monitoring, trace organic analysis.
Low TOC	High sensitivity ICP/MS, PCR, PPT level analysis, isotope analysis, molecular biology, life science.
Comprehensive	Gene research, cell culture, amino acid analysis, protein purification, toxicology, medical testing.

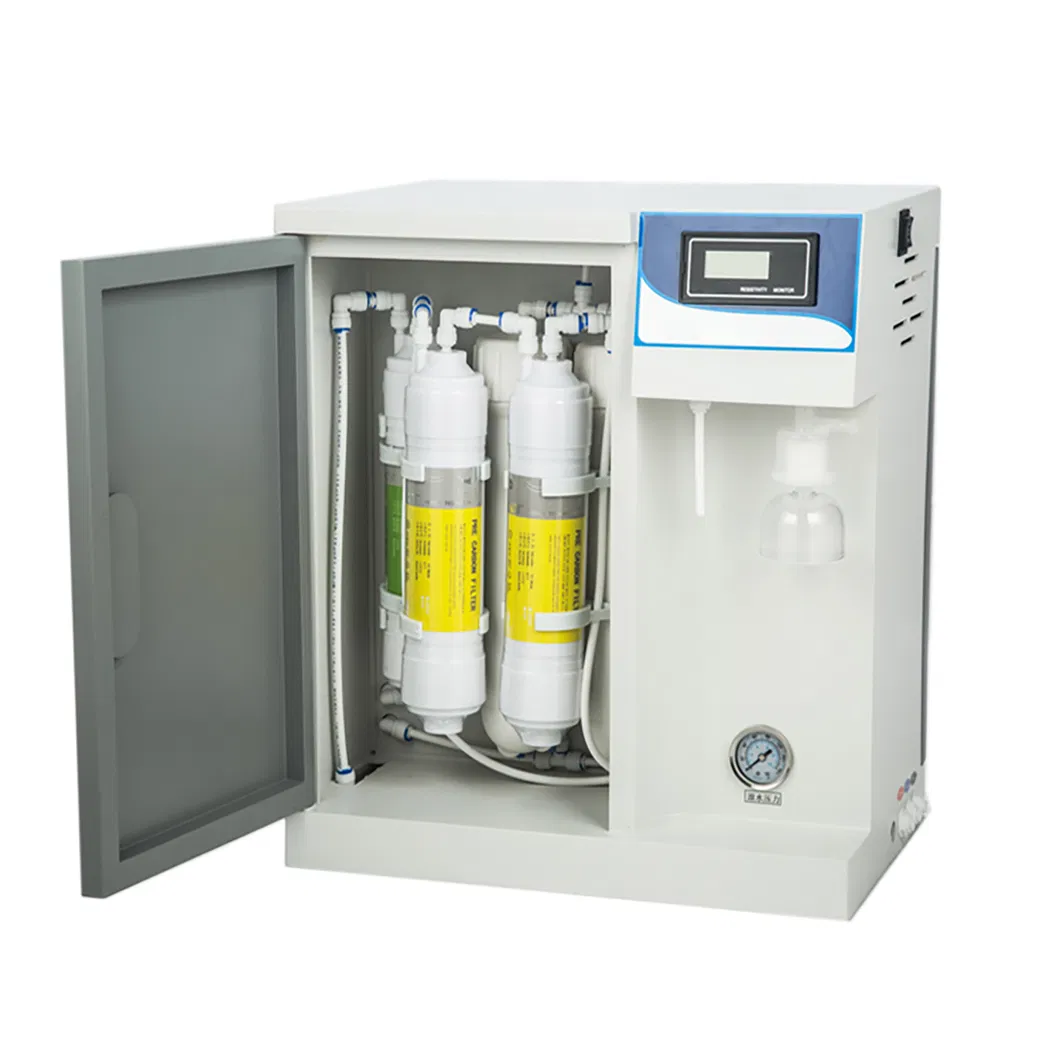

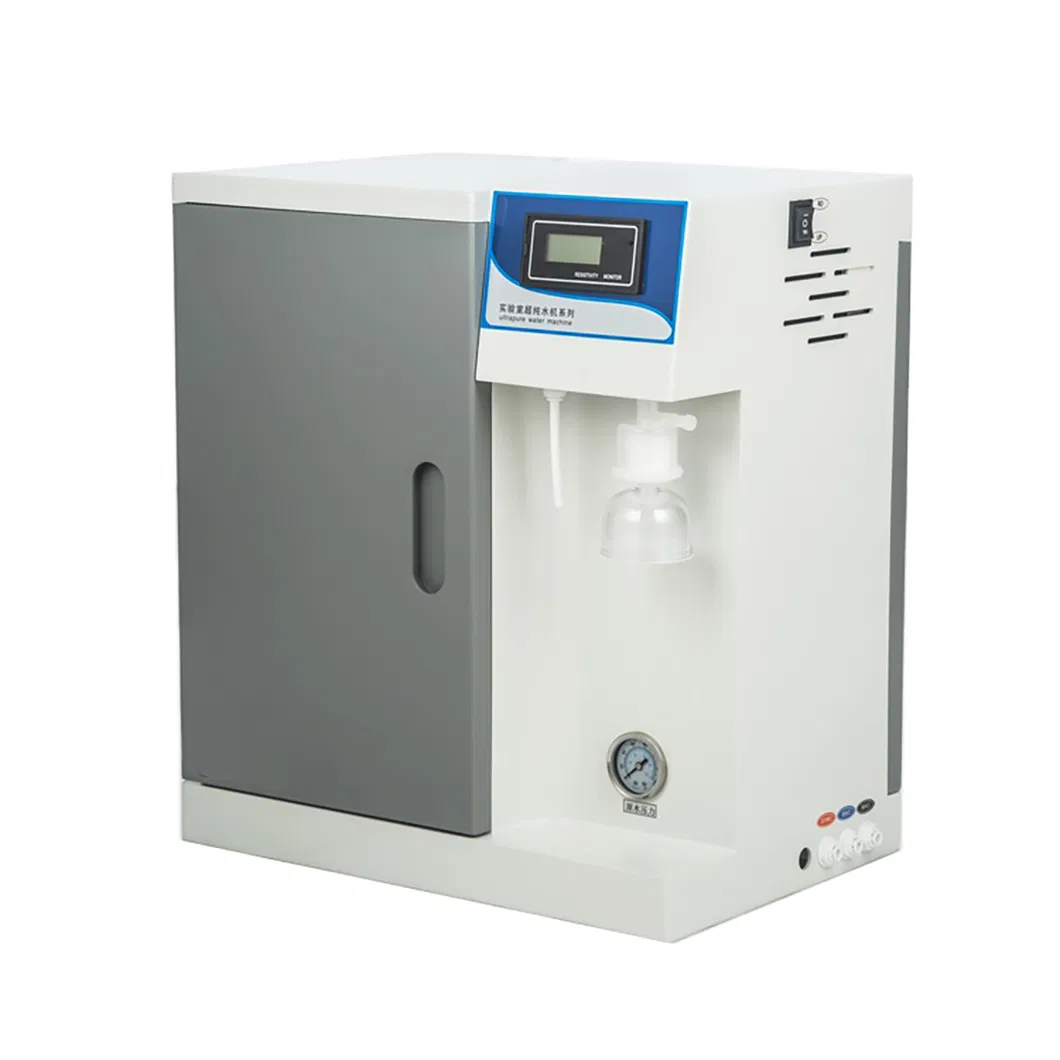

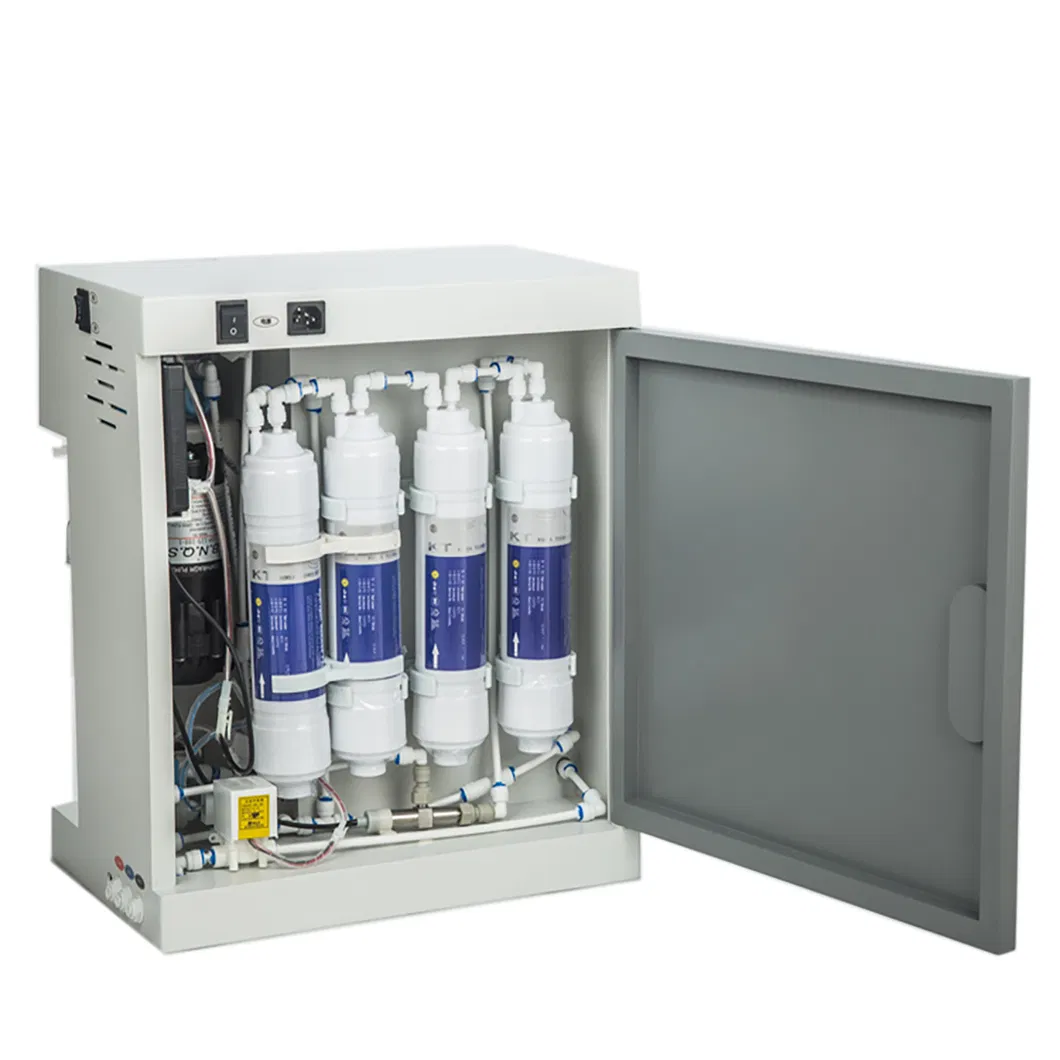

🖼️ Detailed Photos

Frequently Asked Questions

What is the output water quality of the MSLUP03?

The system provides Ultrapure (UP) water with a resistivity of 18.2 MΩ/cm at 25ºC and heavy metal ion content below 0.01 ppb.

What kind of source water does the system require?

The MSLUP03 is designed to use urban tap water with an inlet pressure of 0.15-0.5mpa and a temperature range of 5-40ºC.

Is it difficult to replace the filter elements?

No. The system uses Korean quick-insert filter columns and features an open-door design at the front and back, allowing for tool-free replacement.

Does the system monitor water quality in real-time?

Yes, it features an online water quality monitoring system and comes with a portable TDS pen for manual testing of TDS and temperature.

What safety features are included in the design?

The electrical appliances and waterways are completely separated to prevent moisture-related circuit failures. It also includes automatic flushing and water-break stopping programs.

What applications is this system suitable for?

Depending on the model, it is ideal for HPLC, PCR, mass spectrometry, cell culture, protein purification, and various clinical or physical-chemical analyses.
