| Model NO. | LC-7050 |
| Display | Digital |
| Weight | 0-100Kg |
| Injection Speed | <85s |
| Wavelength Range | 200-800 Nm |
| Temperature Range | 5-85°c |
| RI Range | 1.00-1.75 Riu |
| Transport Package | Wooden Package |
| Origin | China |
| HS Code | 9024800000 |
| Production Capacity | 200 |

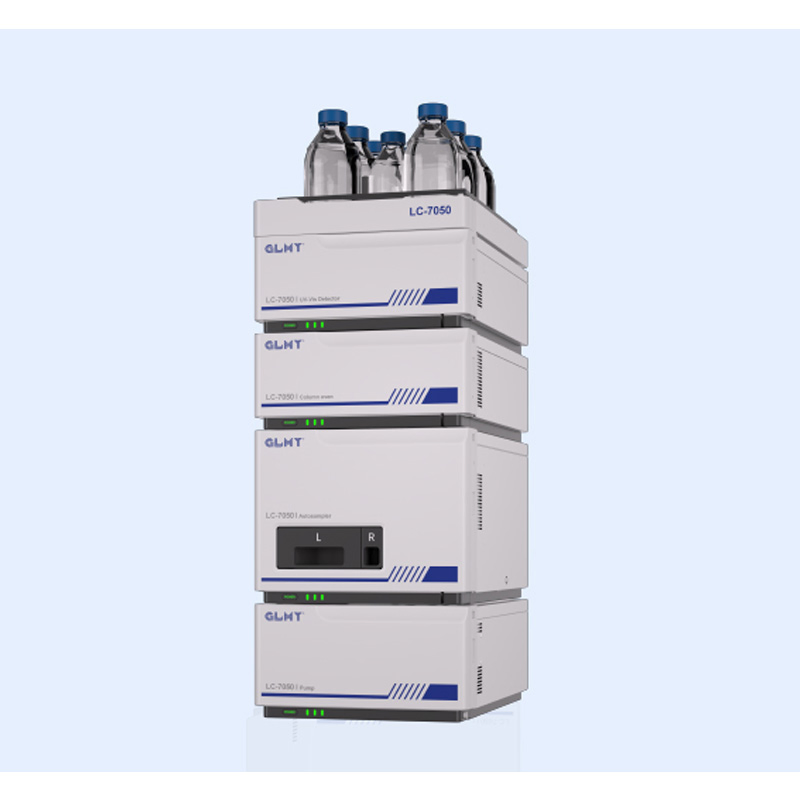

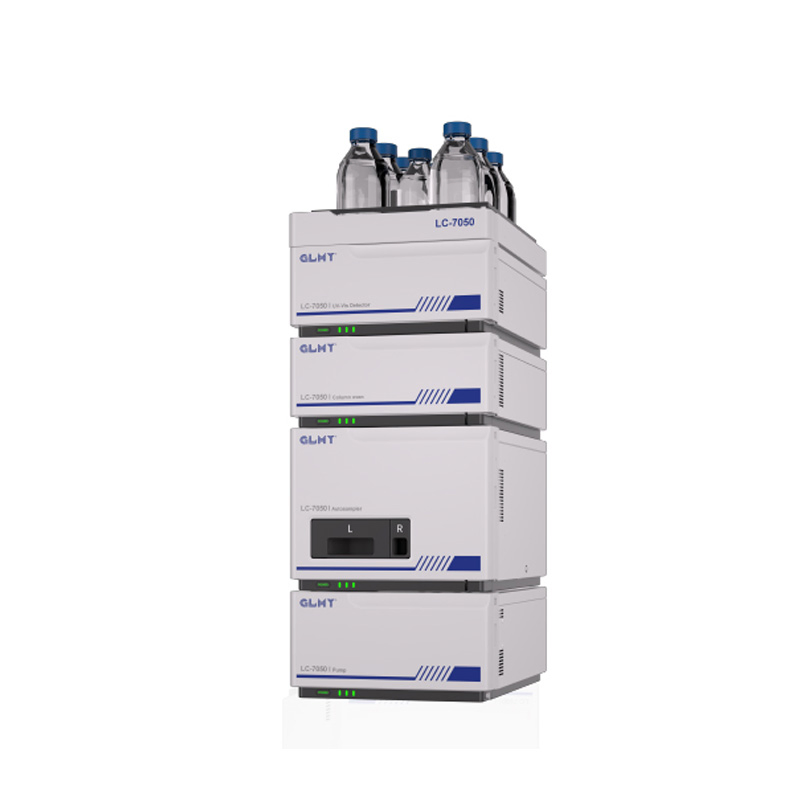

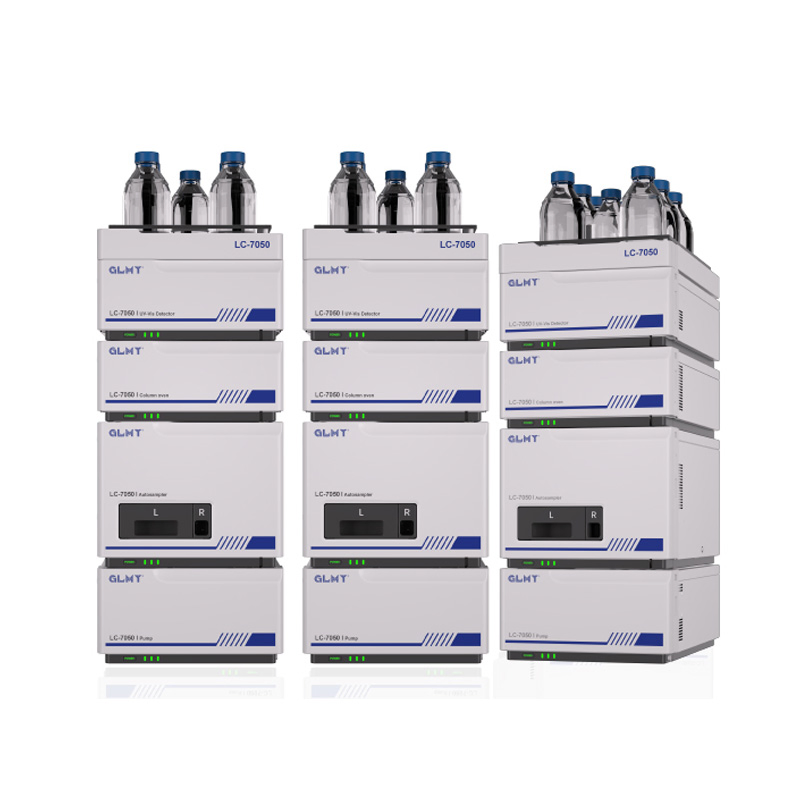

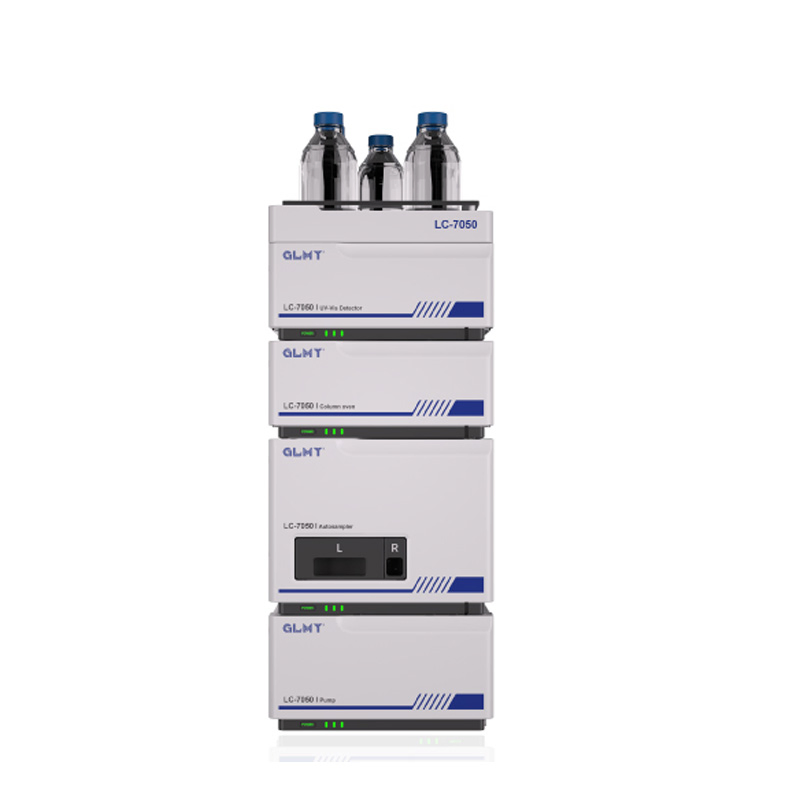

The LC-7050 high-performance liquid chromatography system is a highly precise analytical instrument that adopts modern industrial design concepts. In its design, emphasis is placed on the harmonious unity of the whole, and in terms of functionality, it showcases the flexibility of modular design. Users can make quick and simple configuration adjustments according to specific experimental requirements.
The intelligent dual-triple-fluid infusion pump system offers great flexibility in solvent selection and automated operation, making the complex gradient elution process simple and accurate. The full network communication capability enables users to establish a local area network, allowing for human-machine separation operation. An optional 10.1-inch central controller provides intuitive and convenient operation.
| Module | Parameter | Specification |
|---|---|---|
| LC-7050 Pump | Degasser | Built-in 6-channel online degasser |
| Purge Function | One-key bubble purge | |
| Pump Options | Binary HP / Quaternary LP (upgradable) | |
| Automation | Auto purge valve control | |
| Column Oven | Temperature Control | Peltier system |
| Safety | Leak/humidity alarms, overheat cutoff | |
| Temperature Range | 5-85°C (at 23°C ambient) | |
| DAD Detector | Wavelength Range | 200-800 nm |
| Light Source | D2 & W lamps | |
| Diode Array | 512 physical (4096 effective) | |
| Flow Cell | 8 μL (optional 1μL/16μL) | |
| Central Controller | Display | 10.1" HD touchscreen |
| Features | Real-time monitoring, error alerts, online help | |
| Autosampler | Injection Speed | <85s (full cycle) |
| Sample Tray | Pull-out dual trays | |
| Automation | Auto-shutdown, consumables tracking | |
| RID Detector | Principle | Refractive index |
| RI Range | 1.00-1.75 RIU | |
| Detection Range | 0.25-512 μRIU | |
| Auto-zero | Optical/electronic |
