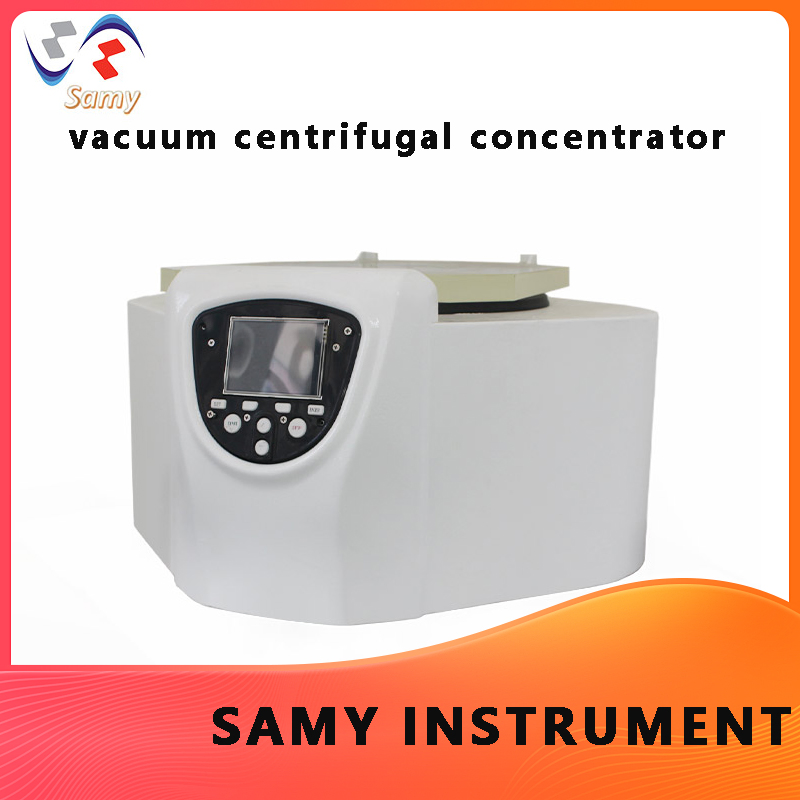

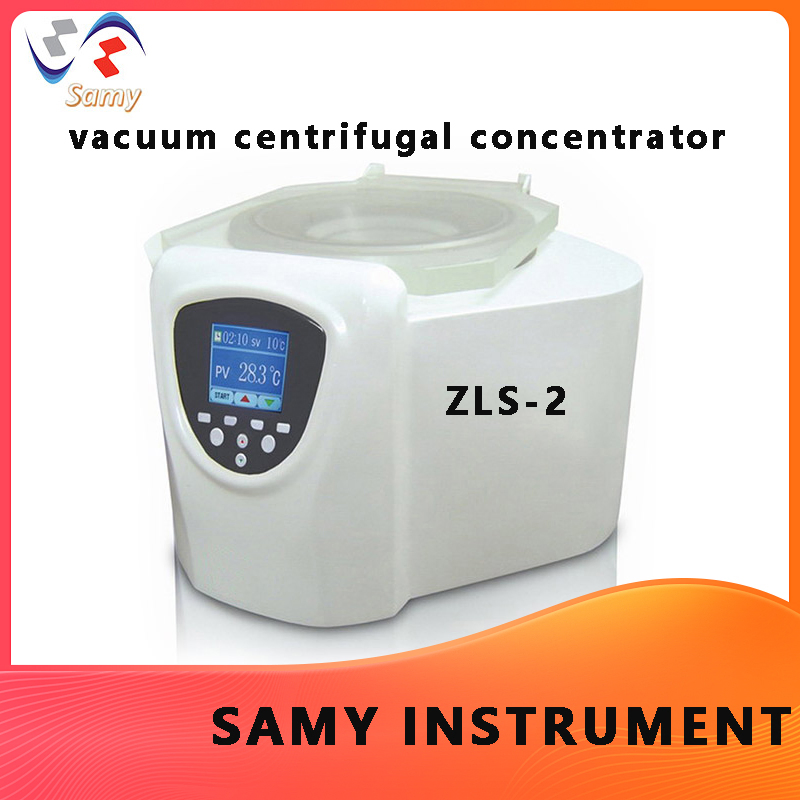

One-Click Pre-Cooling Vacuum Centrifugal Concentrator Zls-2 Used for Toxicological Identification

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info.
Model NO.
ZLS-2
Application
Chemical Industry
Condition
New
Max Speed
2000r/Min
Max Power
2.4kw
Max Current
11A
Timer Range
1min-23h59min59s
On/Off Switch
Automatic
Power
AC220V/50Hz
Weight
42kg
Specification
400× 540× 350
Origin
China
Packaging & Delivery
Package Size
100.00cm * 90.00cm * 80.00cm
Gross Weight
70.000kg
Product Description

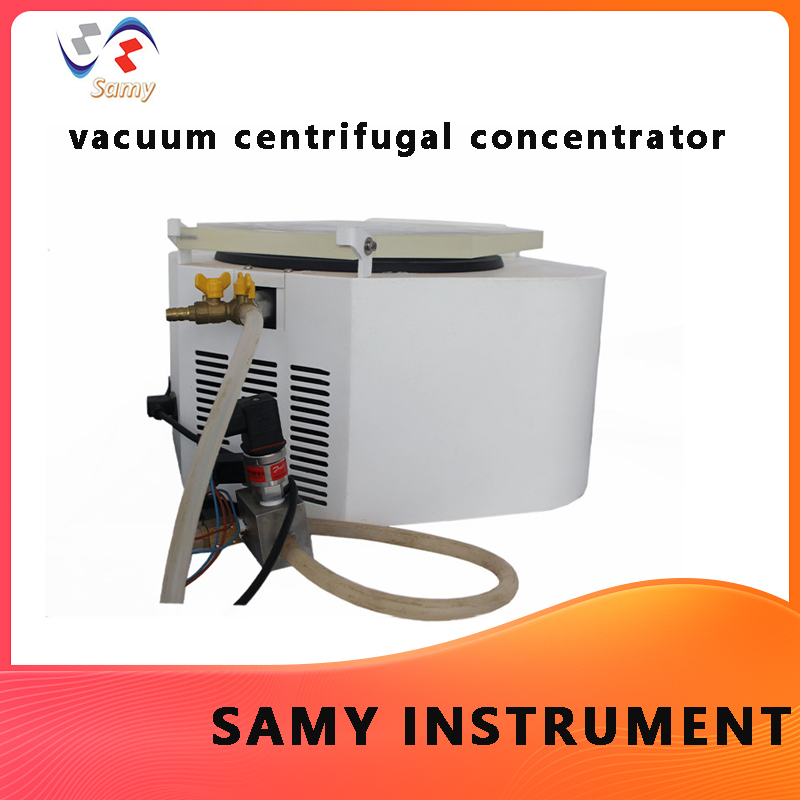

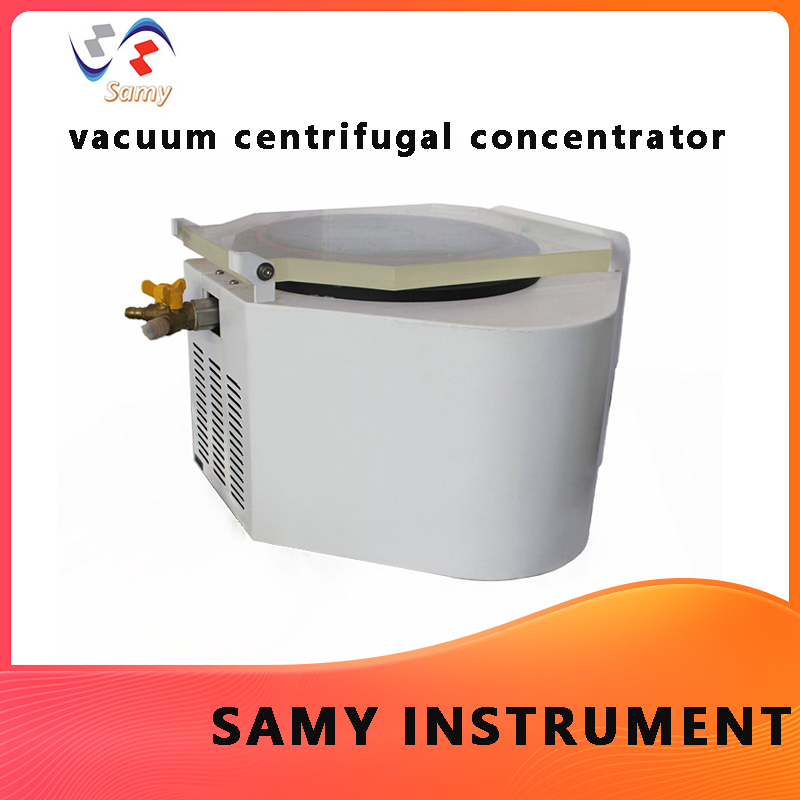

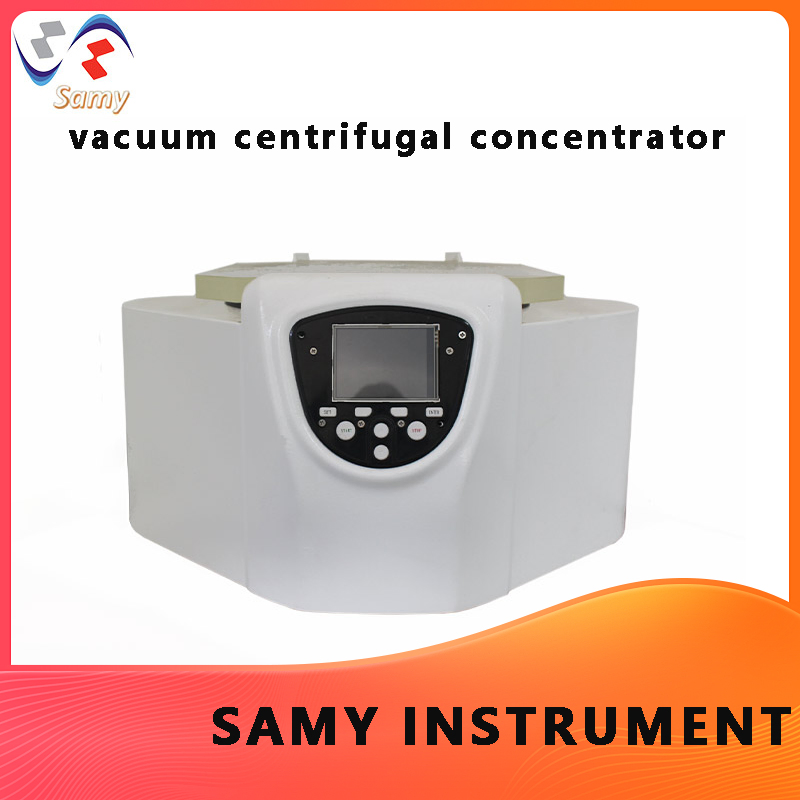

One-click pre-cooling Vacuum Centrifugal Concentrator ZLS-2 Used For Toxicological Identification
The ZLS series vacuum centrifugal concentrator has the function of quickly and safely evaporating the water and organic solvents in the sample. The treated samples can be conveniently used for various qualitative and quantitative analytical chemistry, biochemistry, biological analysis, immune screening, food safety, residue analysis, etc.
Vacuum Centrifugal Concentrator

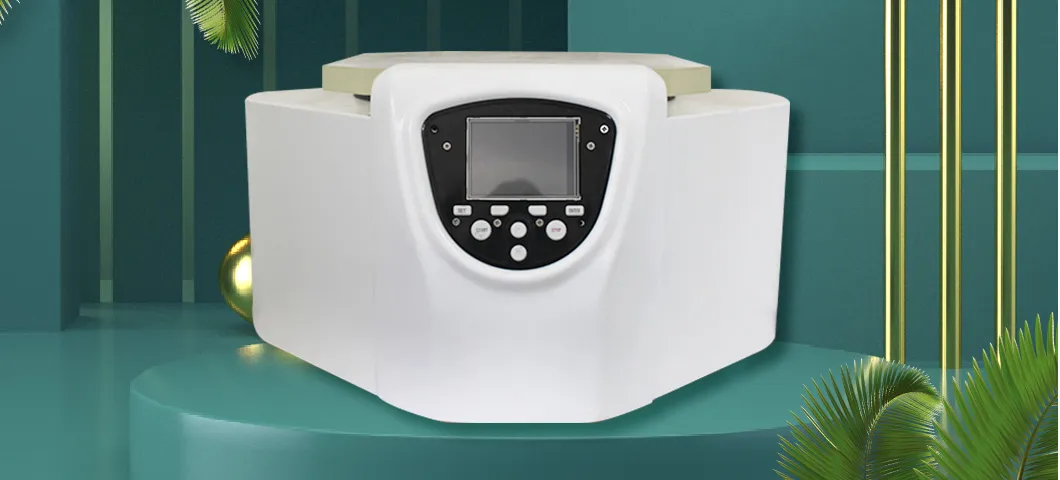

Concentrator Details
Product Feature
  • Operating system adopts microcomputer control, programmable operation, direct drive of DC frequency conversion brushless motor.
  • 7-inch wide viewing angle LCD touch screen, digital input, real-time display of cavity pressure (mBar).
  • One-button preheating: Accurate temperature control, fast heating up to 60ºC.
  • One-click pre-cooling: Imported fluorine-free refrigeration compressor set (R404a), range -20ºC to +60ºC.
  • Vacuum degree setting: Rotational speed linkage start for vacuuming.
  • Automatic vacuum unloading: Protects samples during power outages or end of cycle.

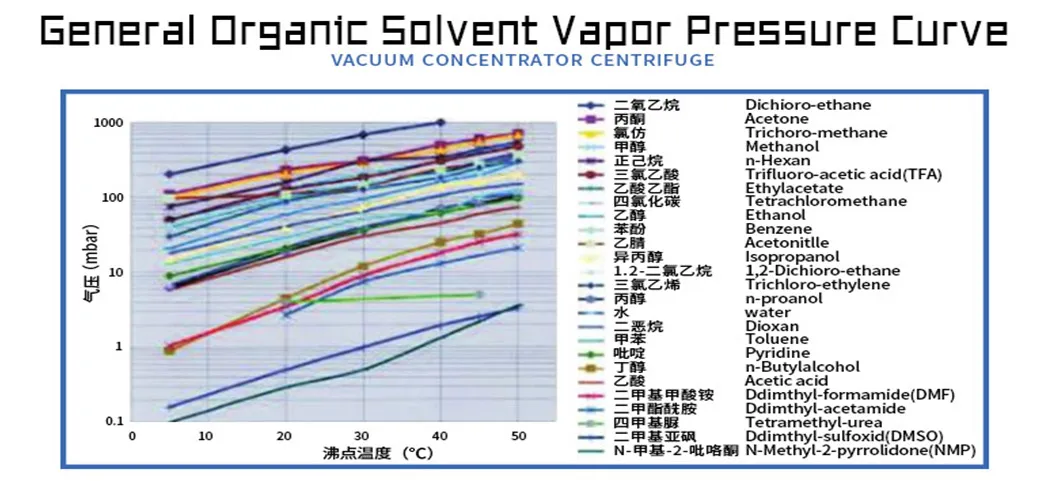

  • Built-in organic solvent vapor pressure curve for safe operation reference.
  • 304 stainless steel seamless molding centrifugal cavity, corrosion-resistant.
  • Split design: Independent accessories for flexible matching.

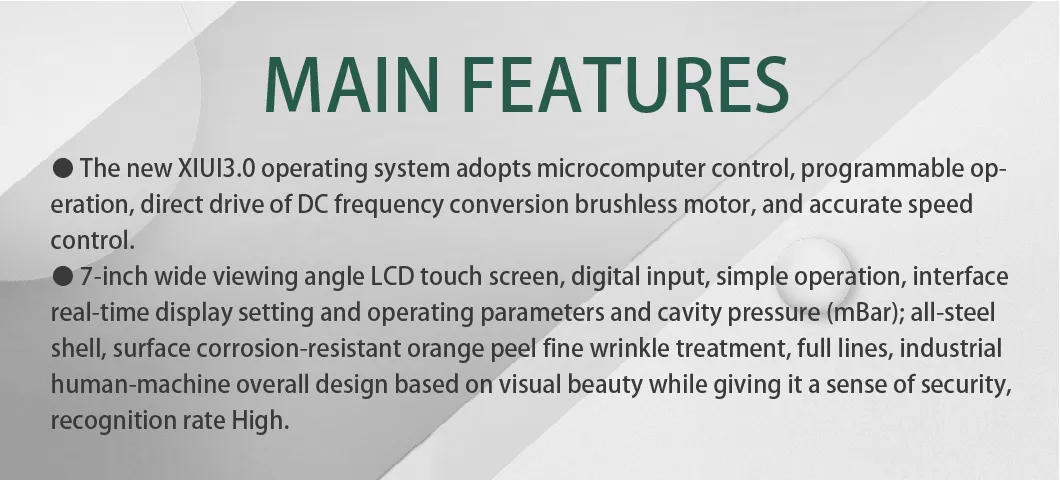

Feature Display 1
Feature Display 2

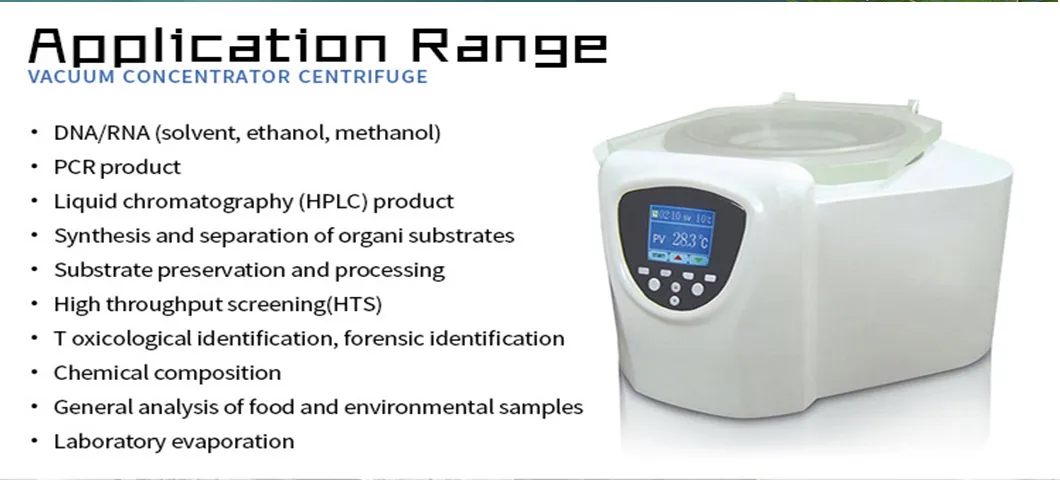

Feature Display 3
Scope of Application
  • DNA/RNA (water, ethanol, methanol solvents)
  • Oligopolymer or peptide / PCR products
  • High performance liquid chromatography (HPLC) products
  • Protein concentration / Chemical compounds
  • Toxicological identification, forensic identification
  • High-throughput screening (HTS)
Application Image 1

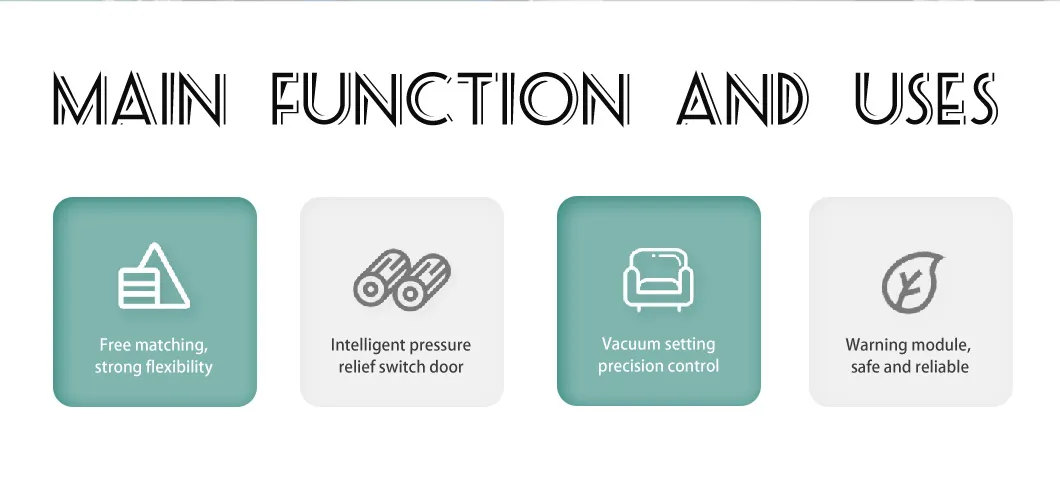

Application Image 2
Product Parameters
Product Name ZLS-1 ZLS-2 ZLS-3 ZLS-4 ZLS-6
Max Speed 1500r/min 2000r/min 2000r/min 2000r/min 2000r/min
Max Power 1kW 2.4kW 2.5kW 0.5kW 3.5kW
Temp Control RT~+60ºC RT~+60ºC RT~+60ºC -20ºC~+40ºC -20ºC~+80ºC
One-click Linkage No No No Yes Yes
Weight 21kg 42kg 55kg 70kg 90kg

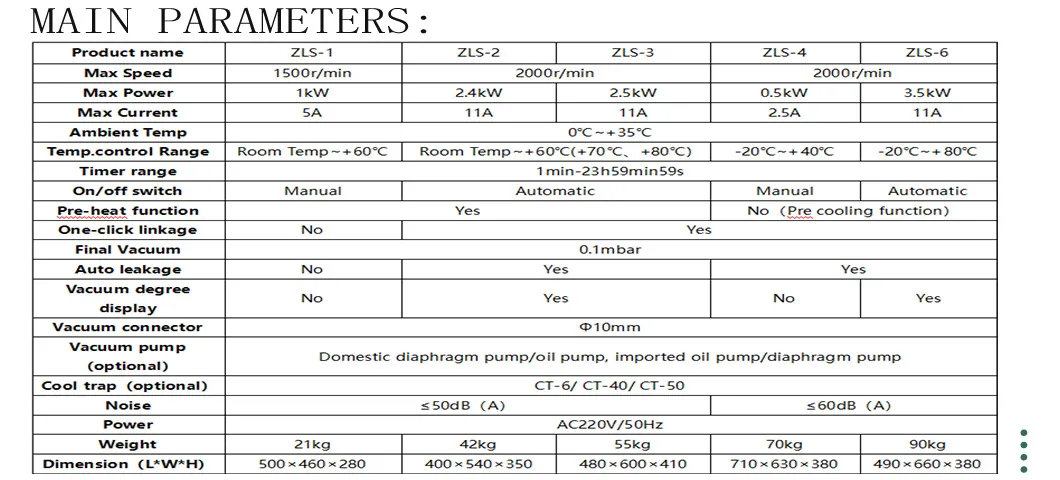

Parameter Chart
Parameter Detail
Company Profile
The enterprise is a high-tech manufacturer specializing in powder equipment, integrating research and development, production, and sales. Core products include ball mills, crushers, and vacuum centrifugal concentrators. The company has passed ISO9001 and CE certifications, providing essential devices for geology, metallurgy, chemical industry, and environmental protection departments.

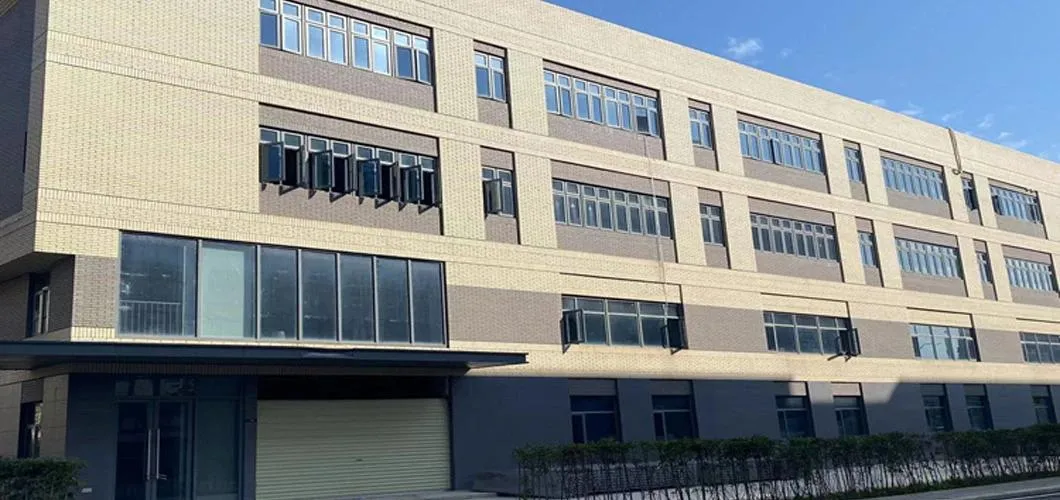

Production Facility
Office Area

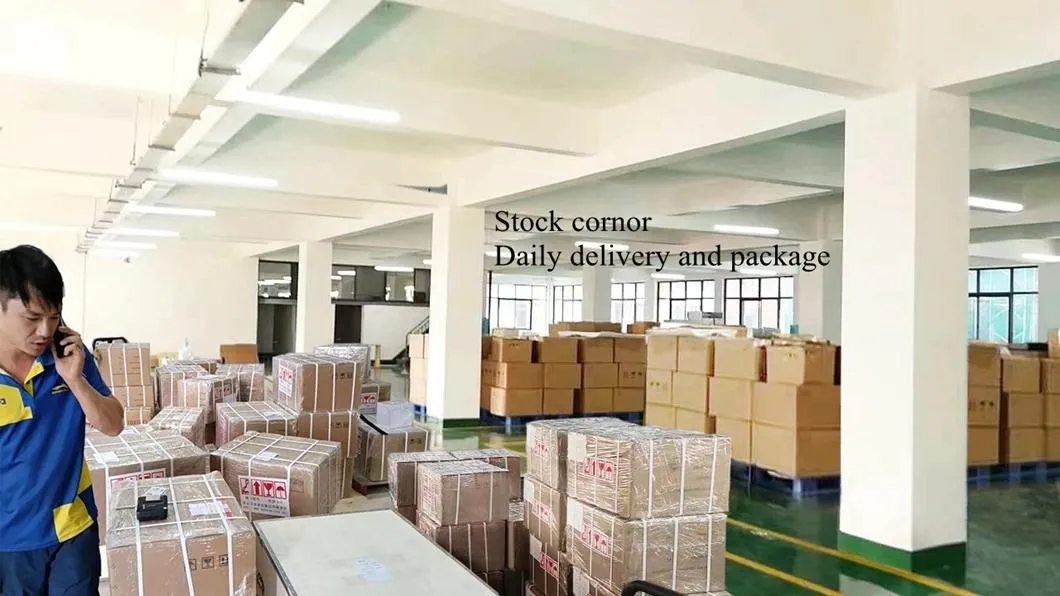

Warehouse
Frequently Asked Questions
What models of Centrifugal Concentrators are available?
We offer a complete range including ZLS-1, ZLS-2, ZLS-3, ZLS-4, and ZLS-6 to meet different experimental needs.
What is the primary function of the ZLS series?
The ZLS series is designed to quickly and safely evaporate water and organic solvents from samples for analytical and biochemical applications.
What are the key safety features of these concentrators?
The equipment features independent body design, vacuum setting precision control, over-temperature/low-voltage warnings, and an intelligent emergency pressure relief system.
Can these units be used for DNA/RNA purification?
Yes, the ZLS-2 and other models are widely used for DNA/RNA purification, protein concentration, and toxicological identification.
What is the typical lead time for delivery?
Standard units are typically delivered within 10 workdays after payment is confirmed.
Does the system support refrigeration?
Models like ZLS-4 and ZLS-6 include an imported fluorine-free refrigeration compressor set with a temperature range of -20ºC to +60ºC.
