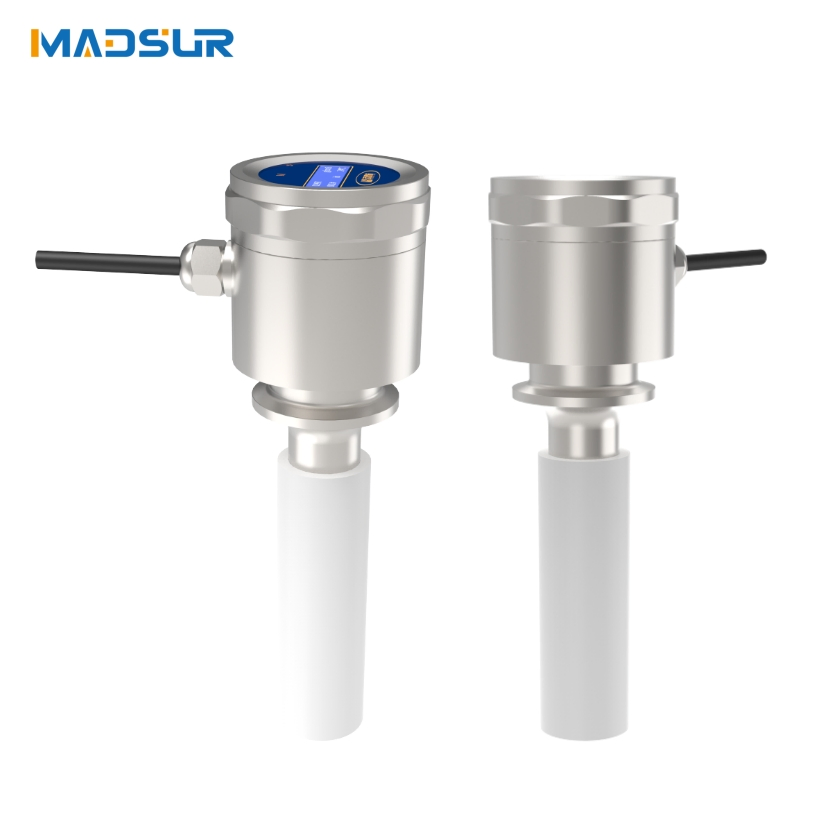

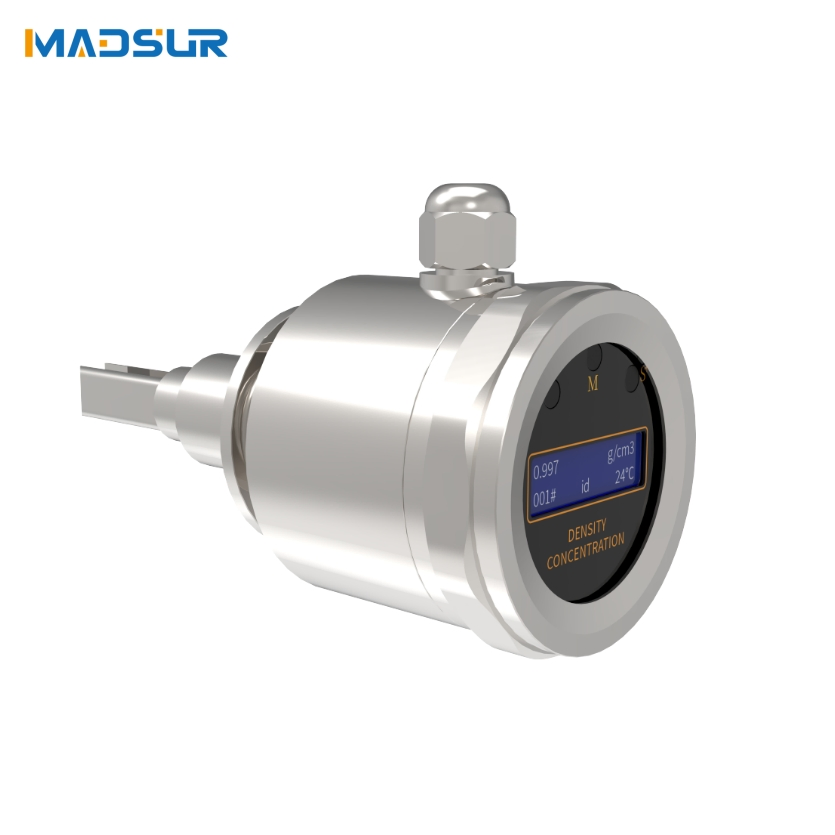

This product is an online tuning fork density meter designed for real-time, continuous monitoring of liquid media in industrial processes. It operates based on the vibration principle of a tuning fork, measuring density by analyzing changes in the vibration frequency within the liquid, and incorporates temperature compensation to improve accuracy.

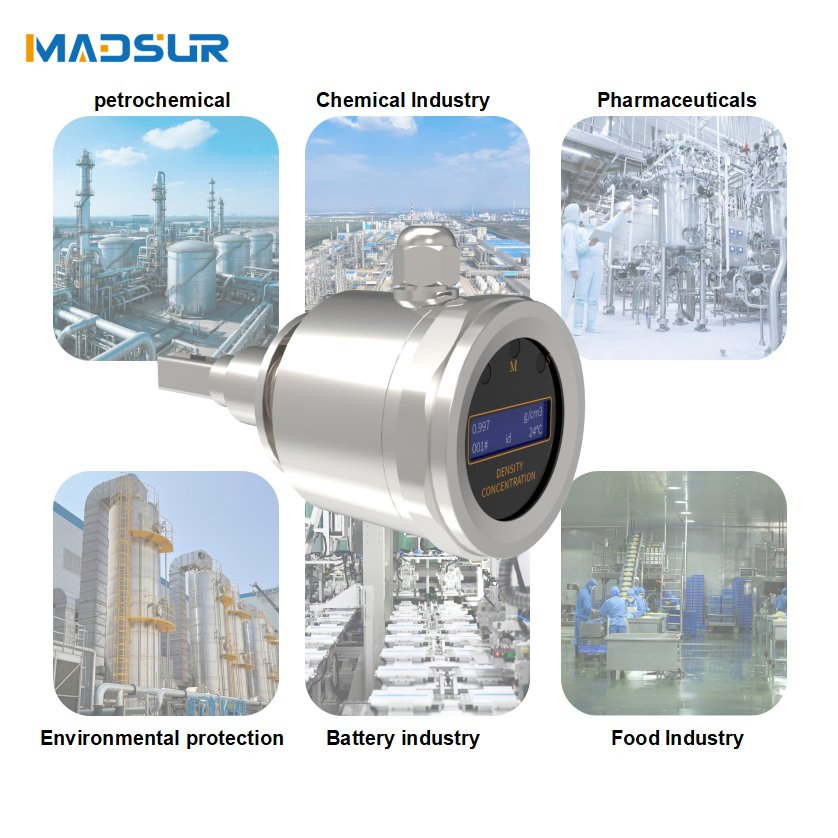

The instrument can convert and output various concentration-related parameters, such as percentage concentration, Baumé degree, and saccharification. It is suitable for petrochemicals, chemicals, pharmaceuticals, food and beverage, and environmental protection industries.
| Accuracy | 0.2-level (2‰) | Signal Type (Ch 1) | 0.5~4.5V/0V~5V/1~5V |
| Operating Voltage | 3.6VDC | Signal Type (Ch 2) | 4~20mA/0~20mA |
| Humidity Range | 0~95%, Non-condensing | Digital Input | 3 Channels |
| Protection Rating | IP68 | Pulse Count | Forward/Reverse counting supported |
| Comm. Interface | RS485 (1200~115200BPS) | Comm. Protocol | MODBUS-RTU / CJ-188 |
| Wireless Comm. | GPRS/4G Optional | Uplink Protocol | Low-power RTU protocol |
| Power Output | 2 Channels (5V, 12V, 24V) | Output Current | 100mA (Ch 1) / 10mA (Ch 2) |
