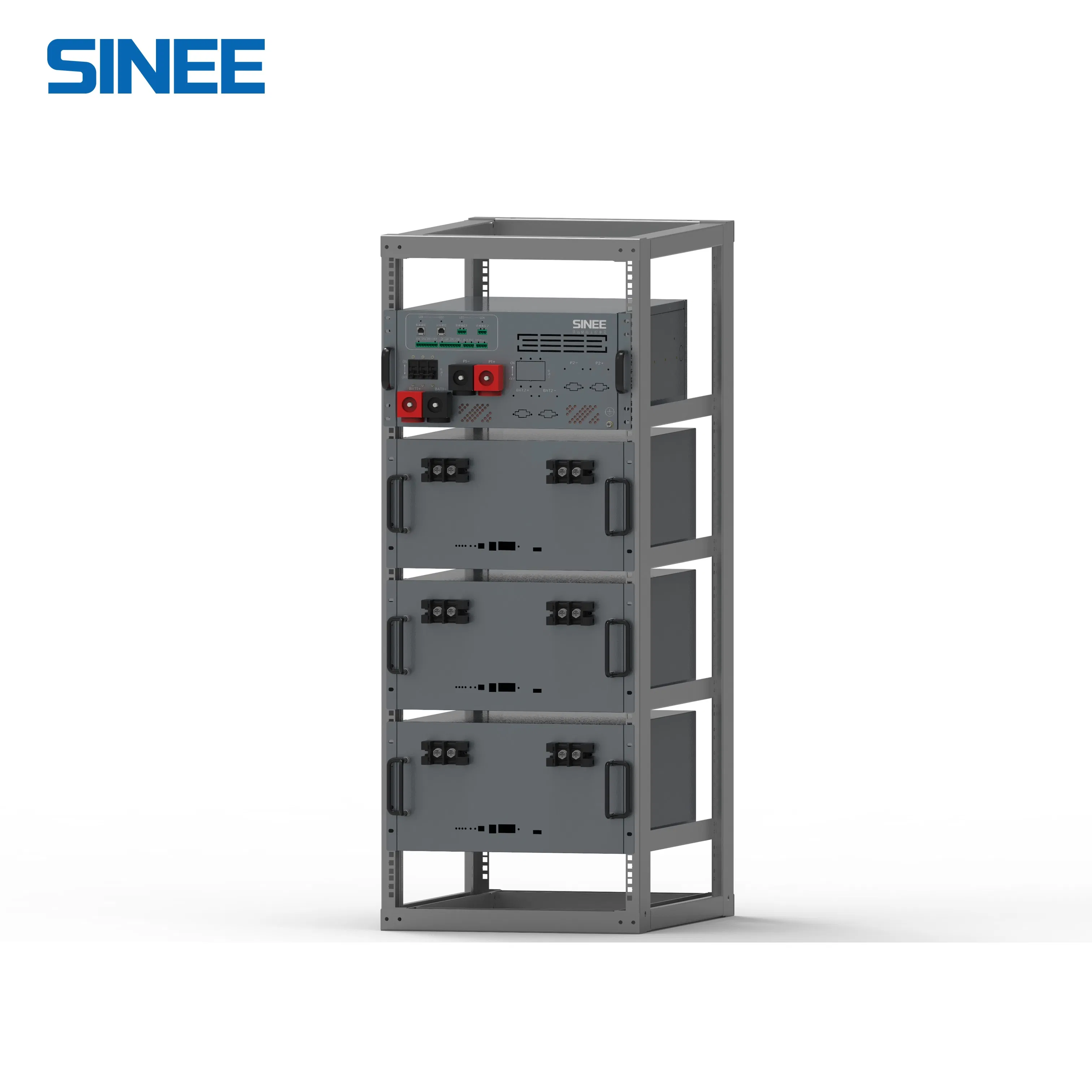

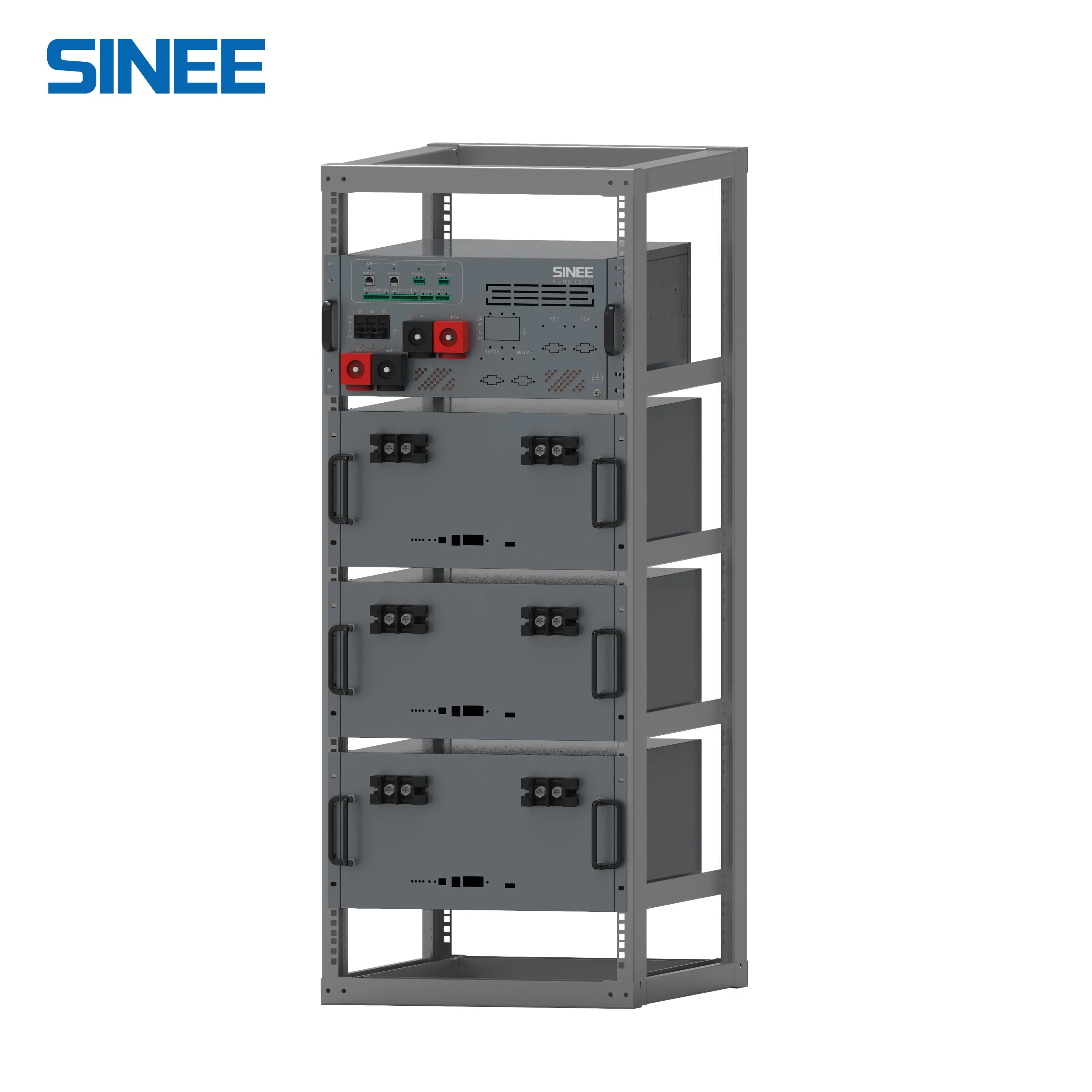

Resilient Power Storage System for Connectivity Gateways
The one-stop energy storage system for communication base stations is specially designed for base station energy storage. Users can use the energy storage system to discharge during load peak periods and charge from the grid during low load periods, reducing peak load demand and saving electricity costs.
| Category | Lead Carbon System | Lithium Battery System | |
|---|---|---|---|
| Mechanical Properties | Weight | 860kg (2V500Ah 22 pieces/group) | 370kg (3.2V230Ah 15 pieces/group) |
| Size (L*W*H) | 1040mm*540mm*1485mm | 680mm*489.5mm*1528mm | |
| Cooling | Air Cooling | Air Cooling | |
| Electrical characteristics | Power Capacity | 22kWh | 33.12KWh |
| Voltage Range | DC 42VDC~58VDC | DC 42VDC~58VDC | |
| Efficiency | ≥95% | ≥95% | |
| MTBF | >100000 Hours (25ºC) | >100000 Hours (25ºC) | |
| Environment | Temperature | -20 to 50ºC | -20 to 50ºC |
| Protection | IP21 | IP21 | |
A: It is specifically designed for communication base stations to provide backup power and participate in peak load regulation to reduce electricity costs.
A: The system features a triple protection design: thermal runaway warning, integrated DC circuit breakers, and an explosion-proof structural design.
A: Yes, the system is compatible with mainstream batteries and allows batteries of different types, capacities, and batches to be used in parallel.
A: Thanks to its modular design, the system supports quick assembly, typically taking only 15 minutes to complete a base station installation.
A: The system supports full frontal maintenance, meaning no additional maintenance channels are required, which helps save space in the base station.
A: The system operates at over 95% efficiency and has an MTBF (Mean Time Between Failures) of more than 100,000 hours at 25ºC.
