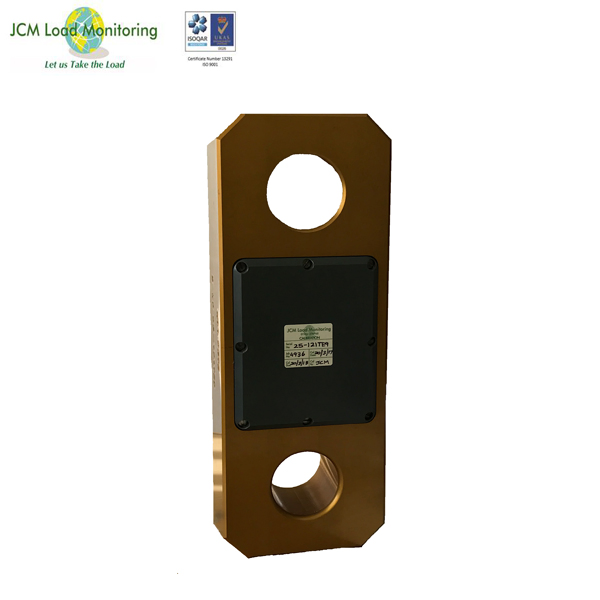

25t/250kn Wireless Pad Eyes Type Compression/Tension Sensor

1 / 3

25t/250kn Wireless Pad Eyes Type Compression/Tension Sensor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model

JCM25T

Out-Wire

6-Wire

Signal Type

Digital

Material

Aerospace Aluminum

IP Rating

IP67

Certification

Accuracy

0.1%

Capacity

2.5t - 500t

360 Gold Telemetry Load Links

The ultimate solution for high-precision tensile load measurement in heavy industrial applications.

Industry-Leading Expertise: We are specialized manufacturers in load monitoring with extensive global experience. Our systems provide accurate solutions for every application, supported by skilled engineers and ISO9001 certified quality systems. All equipment is supplied with calibration and proof test certificates.

Key Features & Advantages

360° (600m) long-range radio signal transfer
Internal antenna & Linear construction
Extended battery life (up to 500 hours)
All-weather performance (Rain, Snow, Dust)
Compact, lightweight aerospace aluminum build
Safety factor 5:1 for maximum security
High accuracy: 0.1% for full range
Overloading alarm system

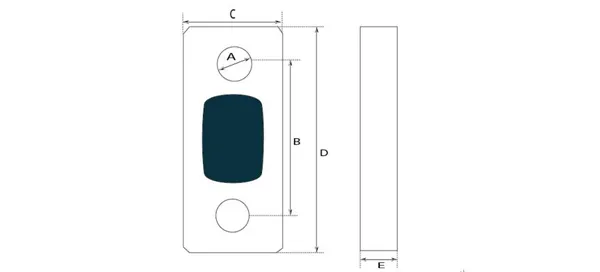

Dimensions & Capacity Table

Capacity	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Weight (kg)
2.5t	23	215	38	270	25	2.4
5t	27	240	38	292	38	2.6
12.5t	44	226	130	324	50	5.3
25t	55	240	134	360	70	7.1
50t	78	298	163	476	85	15.0
100t	100	346	196	556	124	26.1
250t	146	460	300	844	150	TBA
500t	190	600	490	1100	200	TBA

* Please confirm any critical dimensions before ordering.

Application Areas

Specifically designed for quality control and load monitoring in: Shipyards, Crane Manufacturing, Iron & Steel Industries, Metallurgy & Casting, Spacecraft Assembly, Railway Precast Beams, and Harbor Operations.

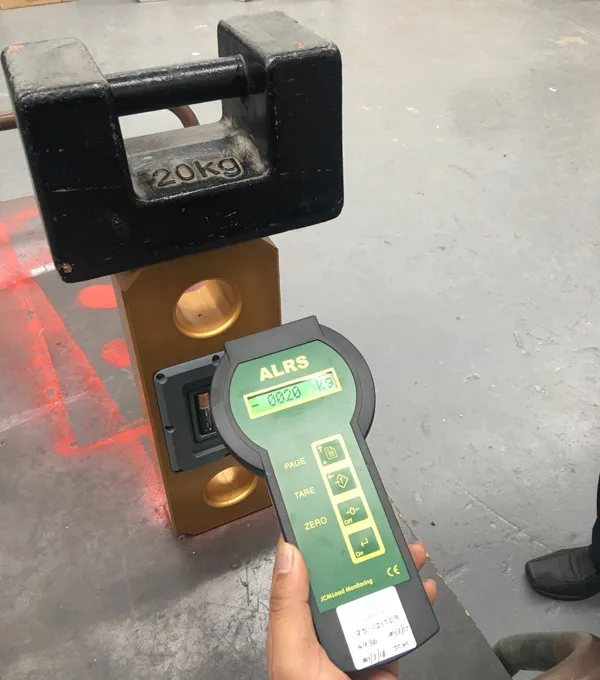

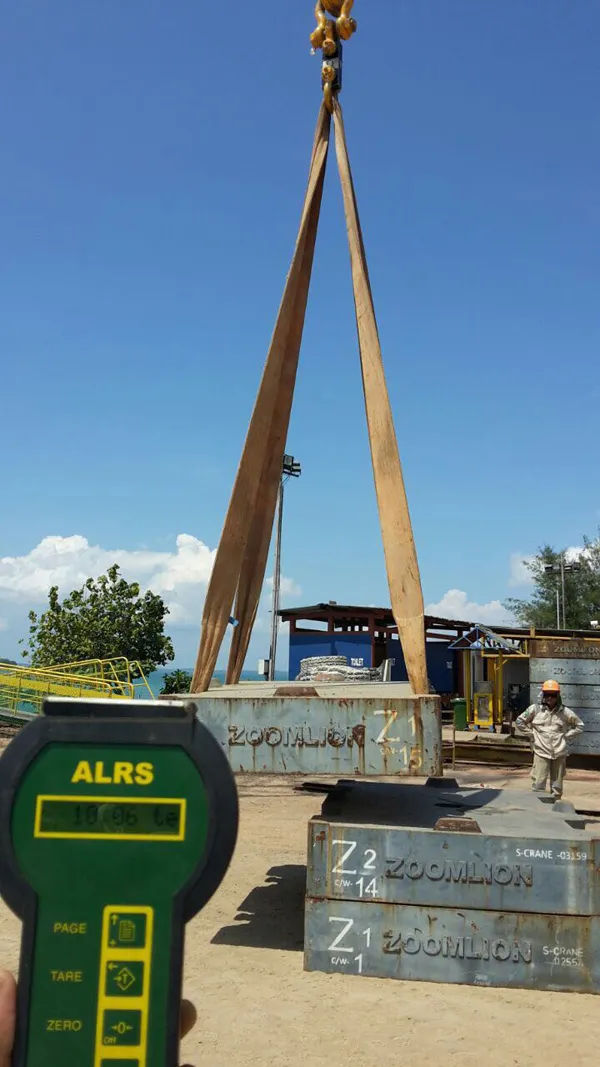

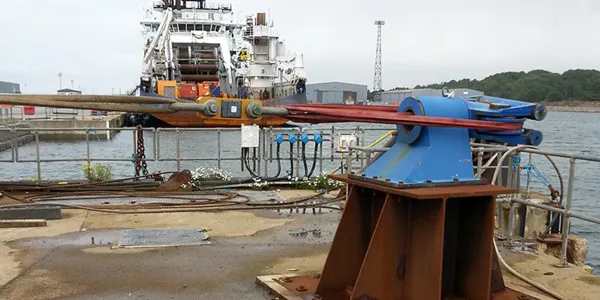

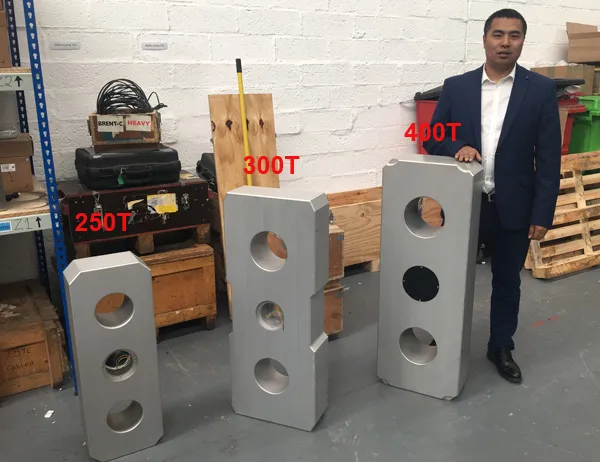

Product Showcase

Frequently Asked Questions

1. What is the wireless transmission range of the load link?

The system features a 360° radio signal transfer capability with a stable range of up to 600 meters, allowing for safe remote monitoring.

2. Can these load cells be used in outdoor or harsh environments?

Yes, they are built with an IP67 protection rating and O-ring sealing, making them fully operational under heavy rain, snow, and dusty conditions.

3. How accurate are the telemetry load links?

Each load cell is calibrated to provide an accuracy of 0.1% for the full range, and every unit comes with a specific calibration report.

4. What material is used in the construction?

All load links are manufactured from anodized aerospace-grade aluminum, which ensures high durability while maintaining a very light weight for portability.

5. What is the safety factor for these units?

The product is engineered with a safety factor of 5:1 to ensure structural integrity and safety performance during heavy lifting operations.

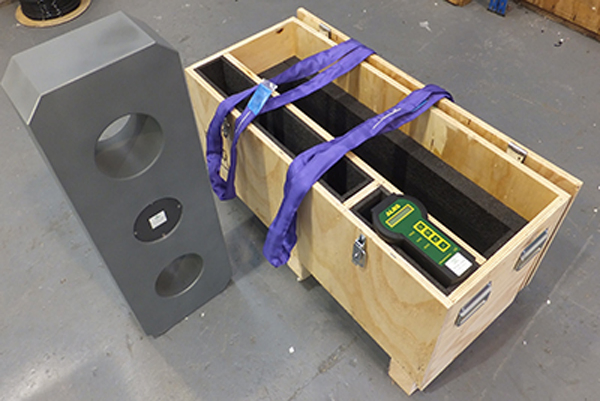

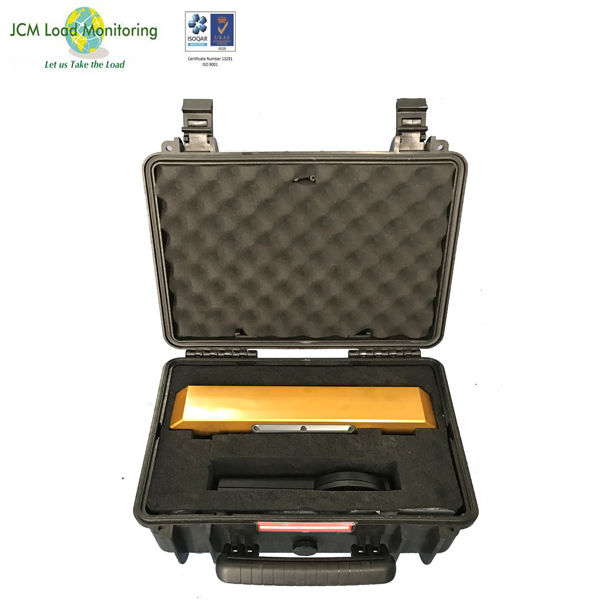

6. How are the products packaged for shipping?

Units from 2.5t to 50t are supplied in an IP67 transit case. Larger units (75t to 500t) are shipped in a heavy-duty hinged wooden transit case for maximum protection.
