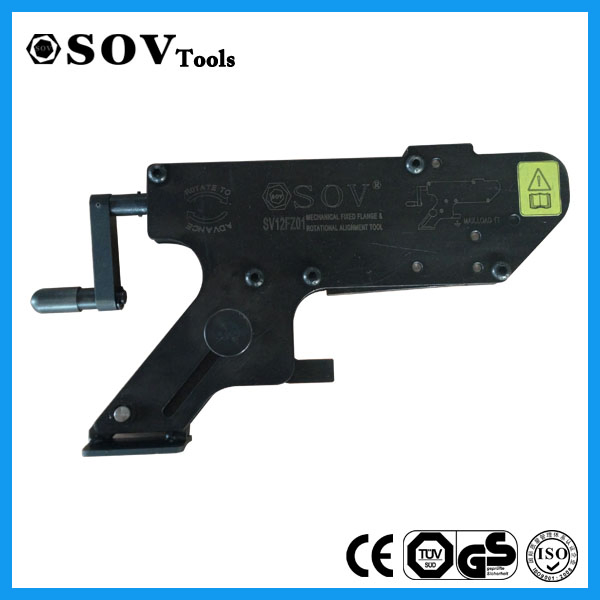

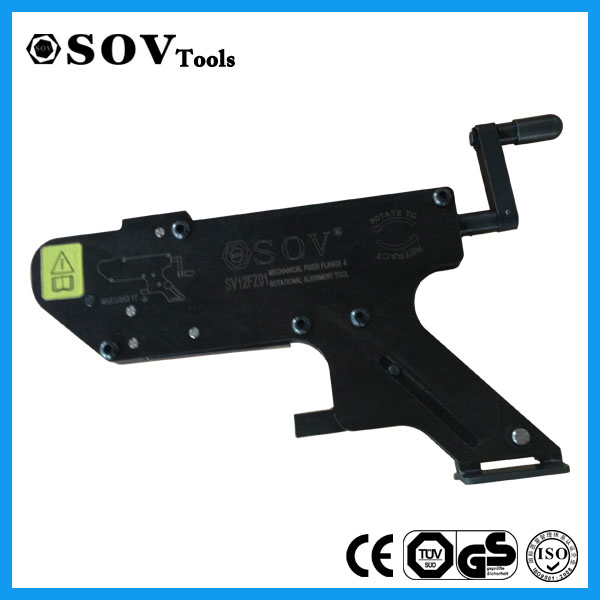

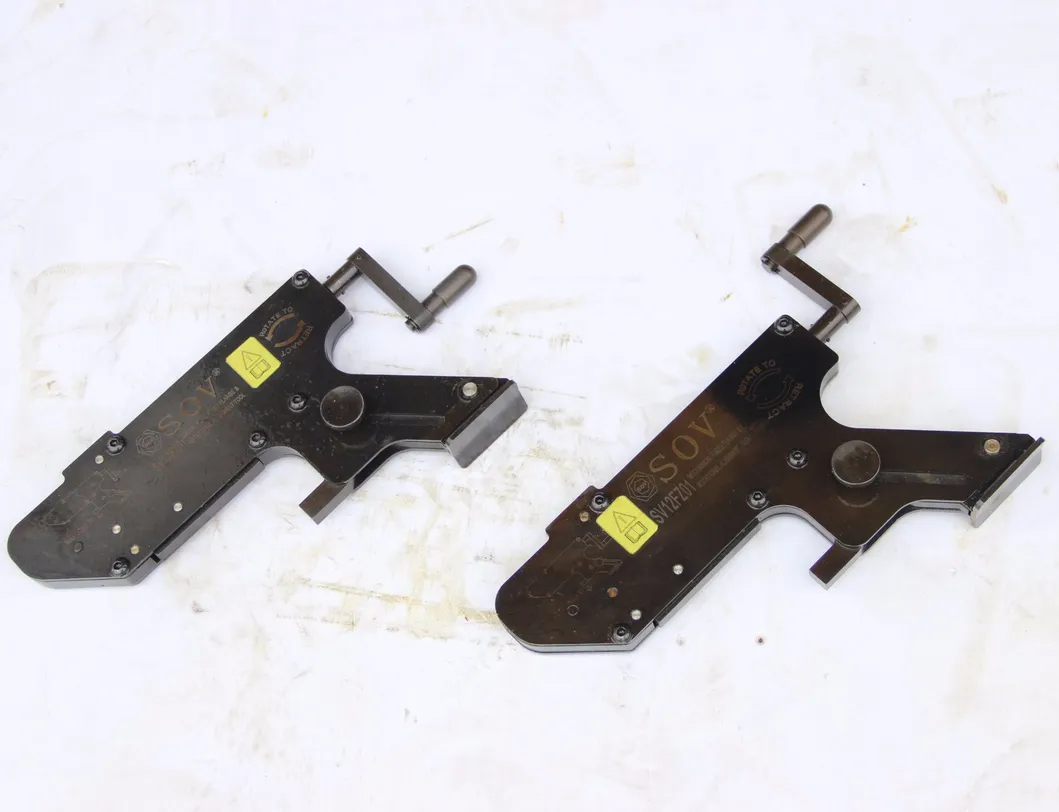

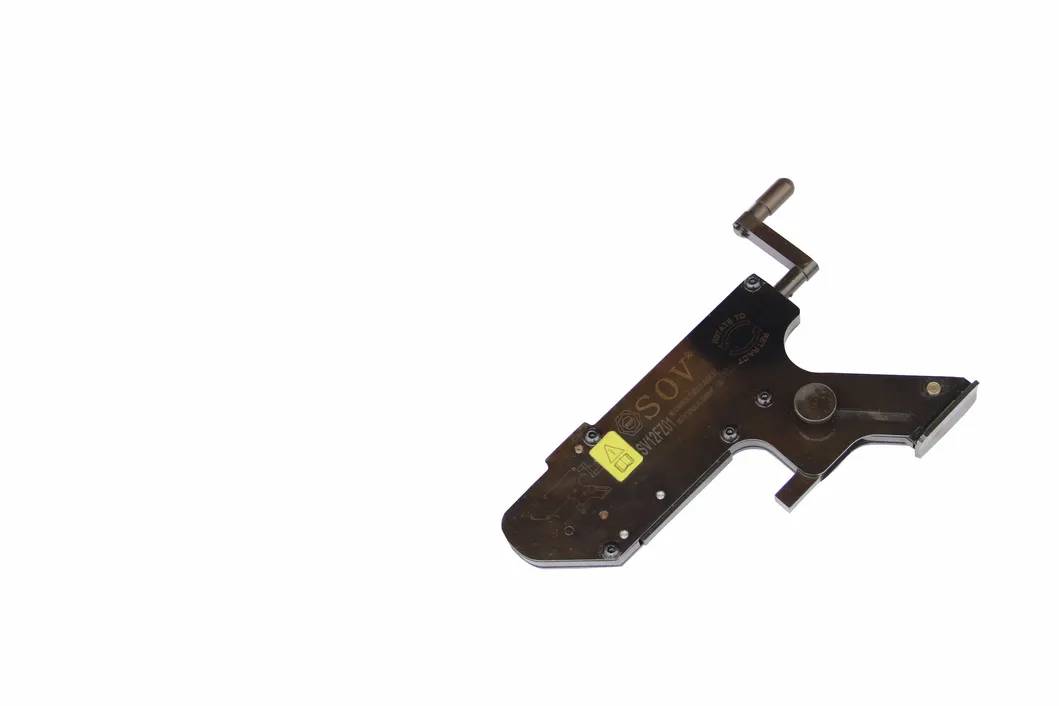

Mechanical Flange Alignment Tools
The mechanical flange alignment tools apply to middle size and low pressure flanges' alignment, providing the simplest solution. These tools offer a simple, safe, and modern alternative to traditional vertical displacement and rotational misalignment methods, effectively reducing risks and saving costs.
| Model | Capacity(T) | Min. Bolt hole dia.(mm) | Max. Alignment Distance(mm) | Weight(kg) | Remark |
|---|---|---|---|---|---|

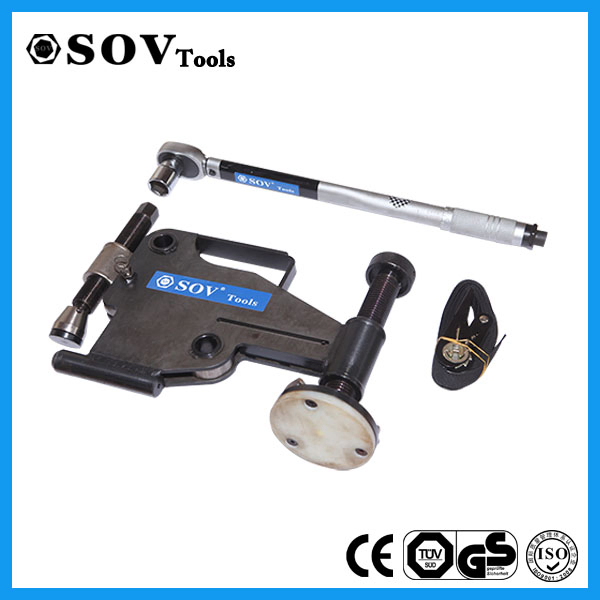

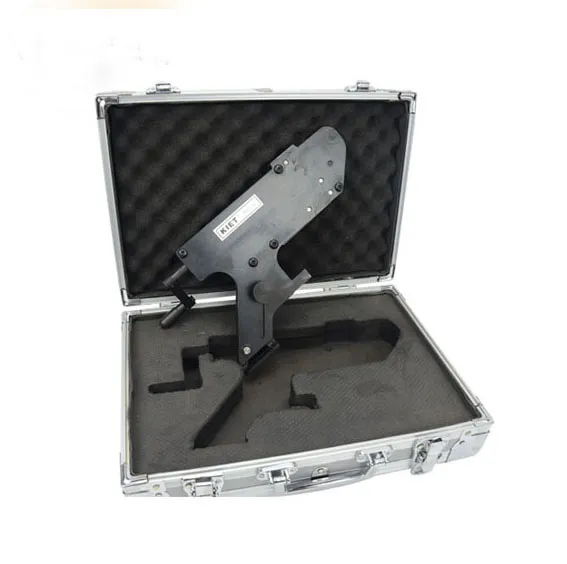

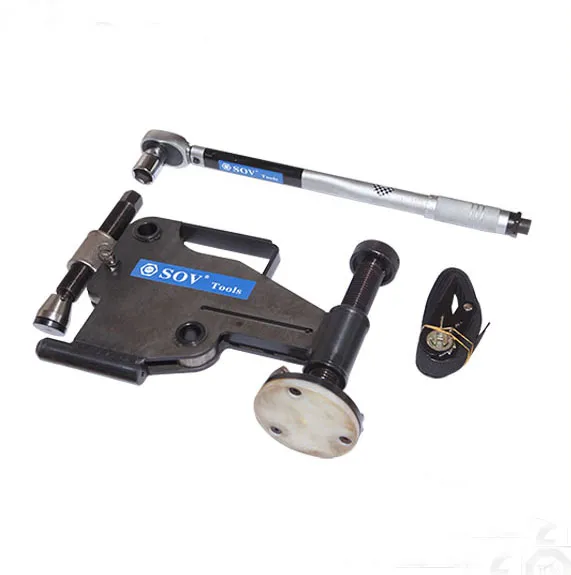

| SOV-FA1TM | 1 | 16 | 26 | 4.3 | Including one flange alignment tool, one hand wrench (22mm socket), and one portable case. |
| SOV-FA4TM | 4 | 24 | 113 | 8.6 |
Package and Delivery:
Shipping Methods:
Product Application: Flange separators are widely used in petrochemical, electric power, steel, liquid, and gas pipeline maintenance. It is the most ideal and secure special tool for repair work.
