Basic Specifications
Valve Body Type
Diaphragm

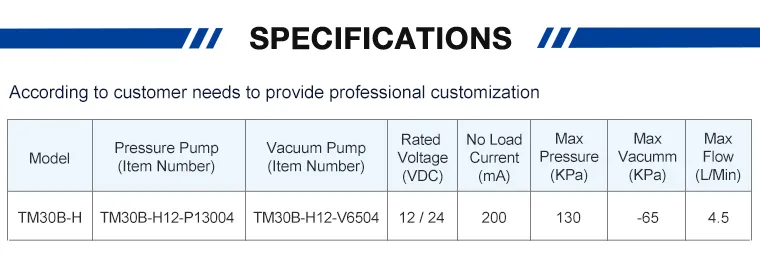

Specification
CE, IEC, RoHS
Production Capacity
100,000 PCS/Month

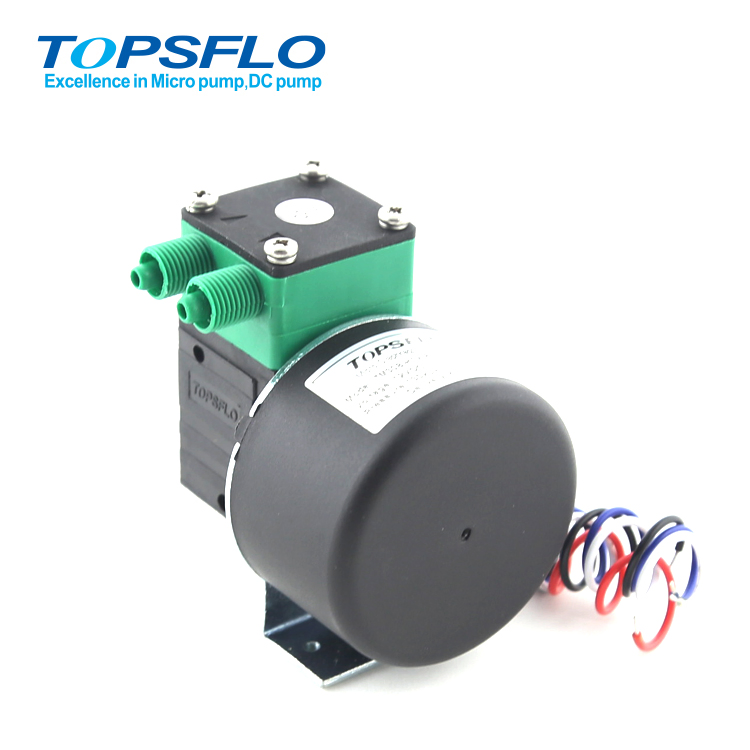

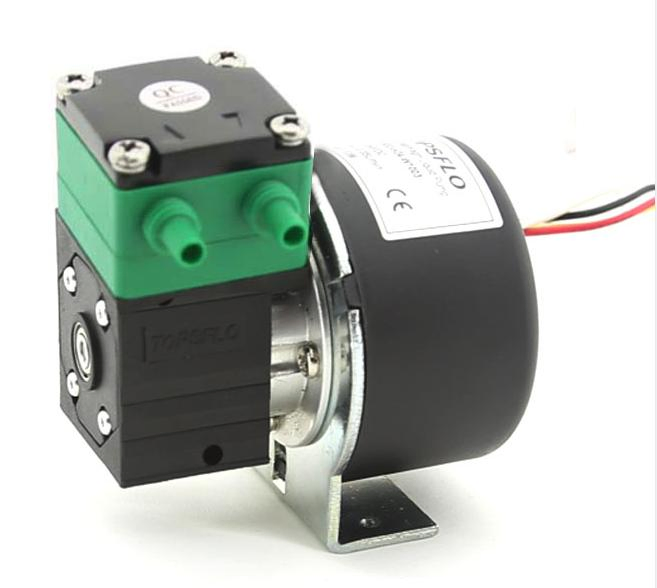

Diaphragm series gas/liquid pumps are the perfect combination of form and function. The use of a special diaphragm allows the pump to transfer both air and liquid efficiently. The compact lightweight unit offers optimum sizing for analytical equipment.
⚙️Ease of integration

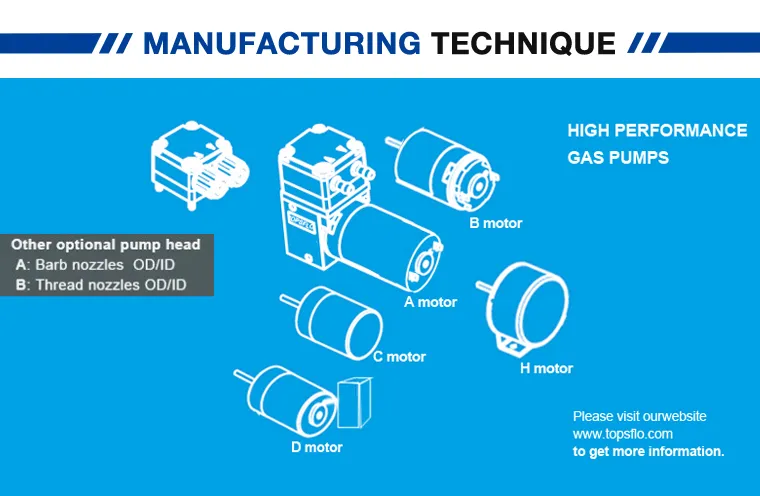

Equipped with compact brushed or BLDC motors and suction/discharge ports that can be mounted in any configuration, Diaphragm series is a 'drop-in' upgrade for any competitive vacuum pump.
🔋Device Portability
Miniature 12/24 VDC motors combined with lightweight corrosion-resistant materials promote increased portability of your instrument.
🔇Reduced Noise
Employs structured valve design and enhanced diaphragms for liquid or gas, enlarged bearings for smooth rotation, and external vibration dampeners.
Performance Features
1. Highest Performance/Size Ratio
Innovative and efficient engineering designs enable the Series to push the performance envelope in a lightweight, compact size.
2. Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.
3. Lasts Reliably Longer
Using advanced diaphragm elastomer and superior brushless motor design sets the benchmark for service-free operation exceeding 10,000 hours.
4. Uncontaminated flow
No contamination of the media due to oil-free operation.
5. High level of gas tightness
Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems.
6. Extreme chemical resistance
Optional chemically resistant materials such as FFPM, PTFE, FPM for parts allowing corrosive gas pumping.
Applications
Analysers & Medical
- Medical equipment / pharmaceutical
- Environmental / water treatment
- Food / toxicology
- Sterilizer machine
Industrial & Lab
- Cuvette cleaning
- Filtration & Chromatography
- Industrial washing machines
- Ink jet printing
Others
- Nasal aspirator
- Vacuum preservation
- Aroma machine
- Beauty equipment
Factory & Quality Control

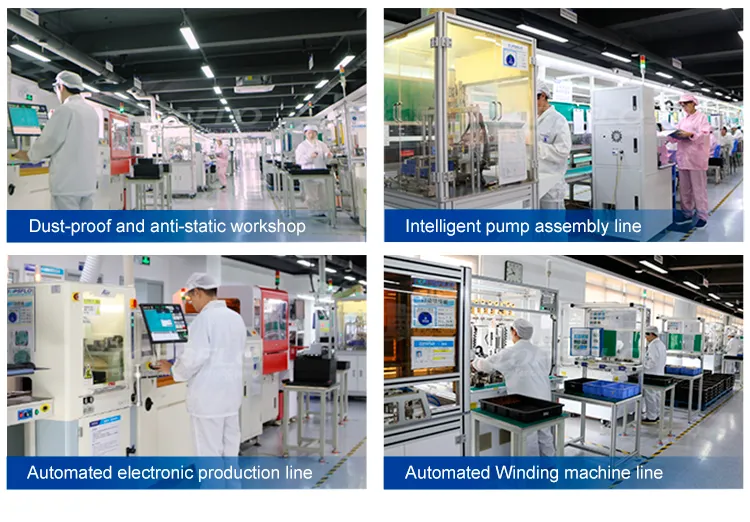

16000M2 modern factory with ESD anti-static control dust-free workshops.
Equipped with 100+ sets of professional imported equipment and 4 precision laboratories meeting national standards.
Holding more than 50 patents and certifications including CE, ROHS, REACH, WRAS, and Food Grade.
Frequently Asked Questions
Q1: What is the expected lifetime of the TM30B-H pump?
The pump features a superior brushless motor design that ensures a service-free operation lifetime exceeding 10,000 hours.
Q2: Can this pump handle both liquid and gas?
Yes, the diaphragm series is specifically designed to transfer both air and liquid efficiently, making it highly versatile for various applications.
Q3: Is the flow produced by this pump oil-free?
Yes, the pump operates oil-free, which ensures an uncontaminated flow of the media, essential for medical and analytical equipment.
Q4: Does the pump support corrosive gas pumping?
We offer optional chemical-resistant materials such as FFPM, PTFE, or FPM for the pump components, allowing for the safe handling of corrosive gases.
Q5: What are the main applications for this miniature pump?
It is widely used in medical equipment, environmental water treatment, laboratory filtration, inkjet printing, and beauty equipment.
Q6: What certifications do these pumps carry?
Our pumps are fully certified and have passed CE, ROHS, REACH, WRAS, and Food Grade accreditation standards.
