Wheel Balancing and Alignment Equipment

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

■

Product Overview & Basic Info

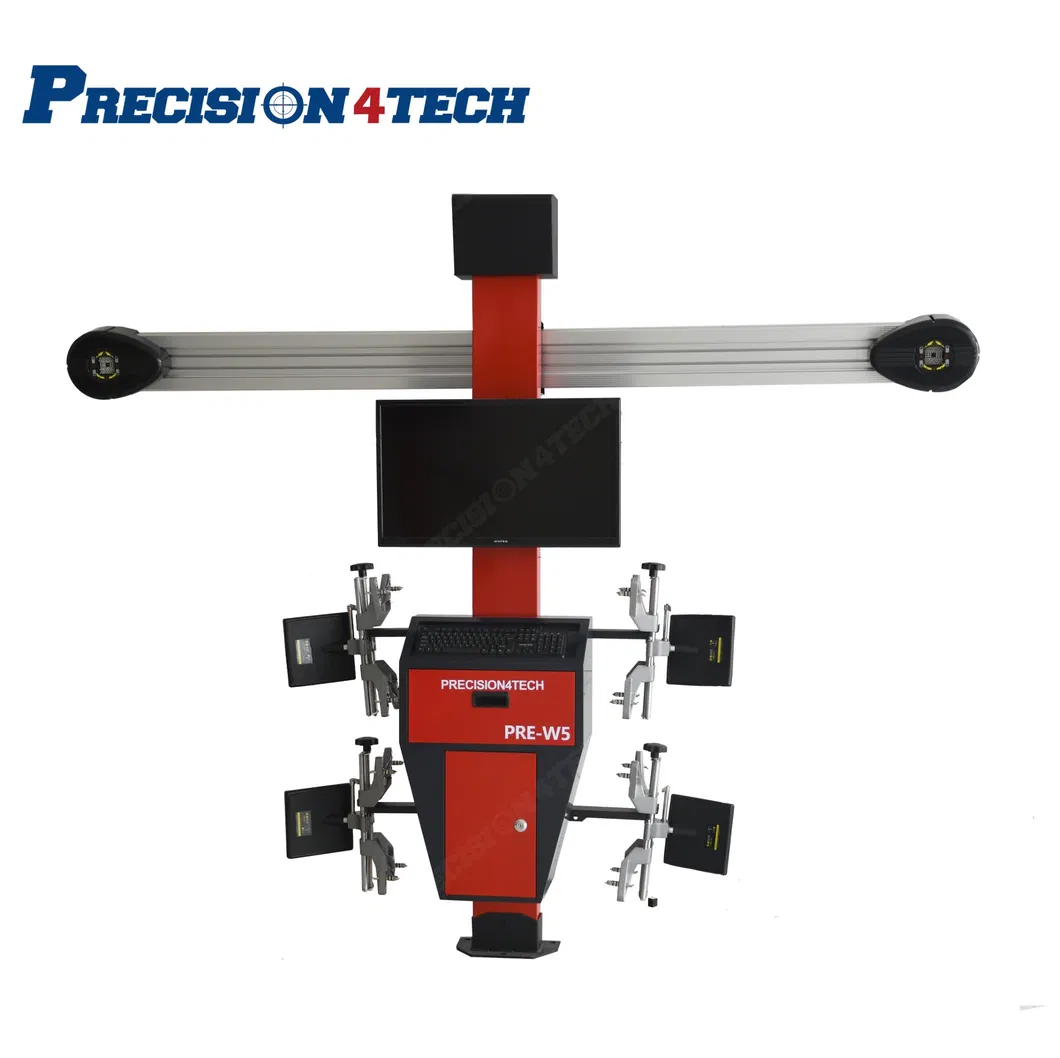

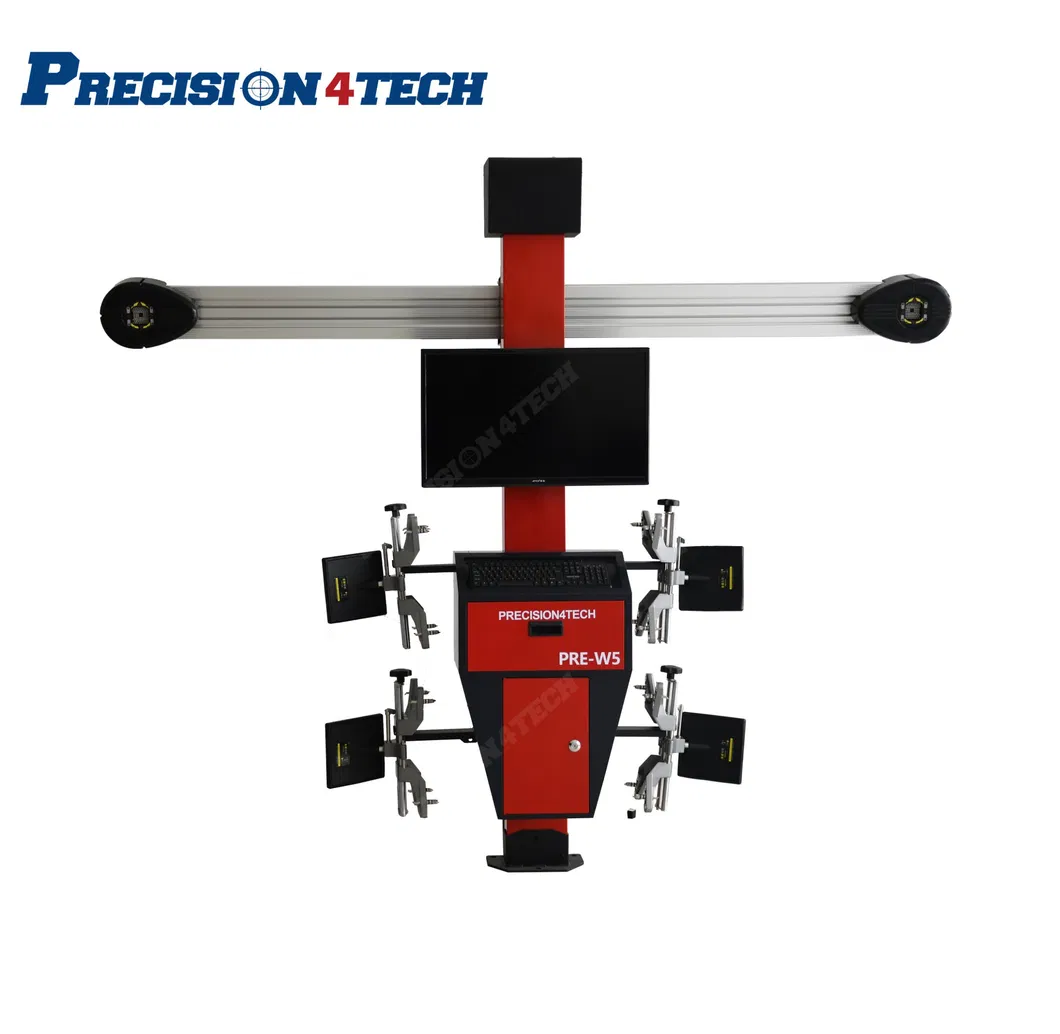

Model NO.:PRE-W5

Type:3D Wheel Alignment

Certification:CE

Communication:Infrared Wireless

Camera:5 Million Pixels HD Industrial Camera

Language:Multi-Language

Database:Updated Once a Year Free

Accuracy:0.01 degree

Power Supply:110V/220V/380V or Customized

Operating Pressure:8-10 Bar

Gross Weight:245kgs

Specification:2920X730X1410mm

■

Standard Configuration & Functions

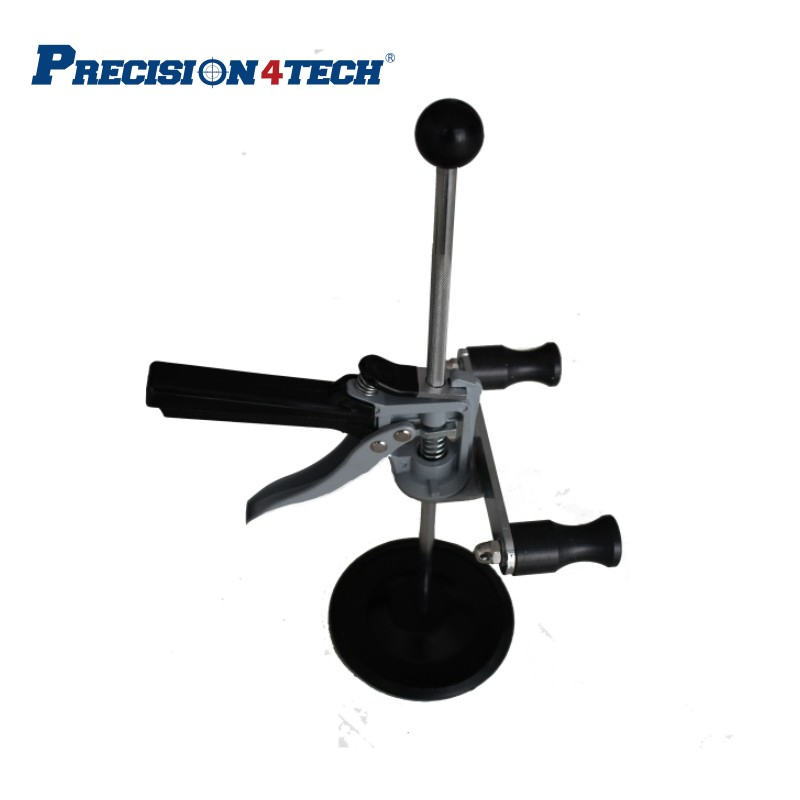

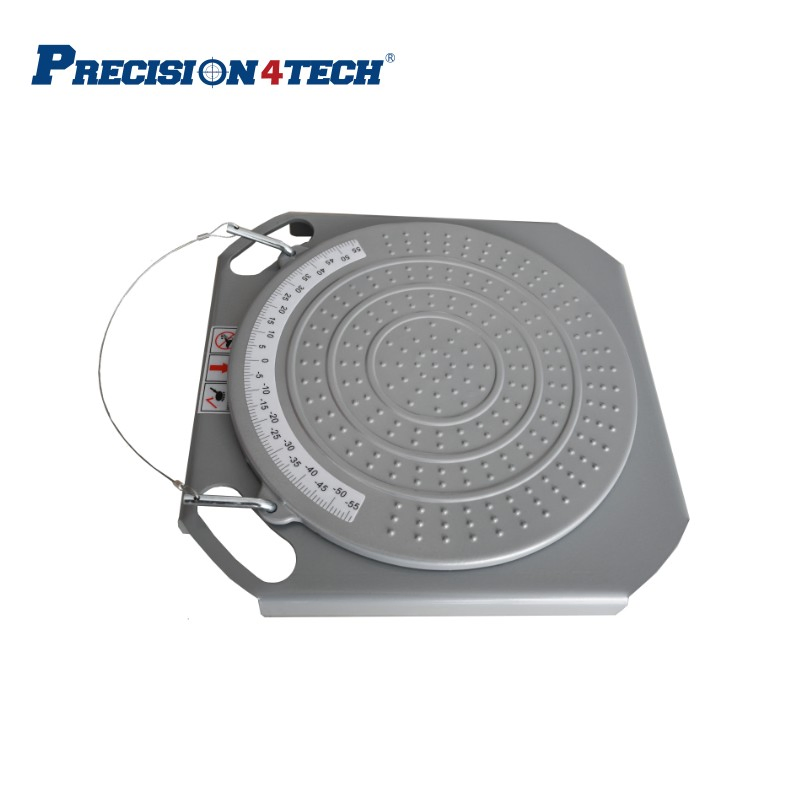

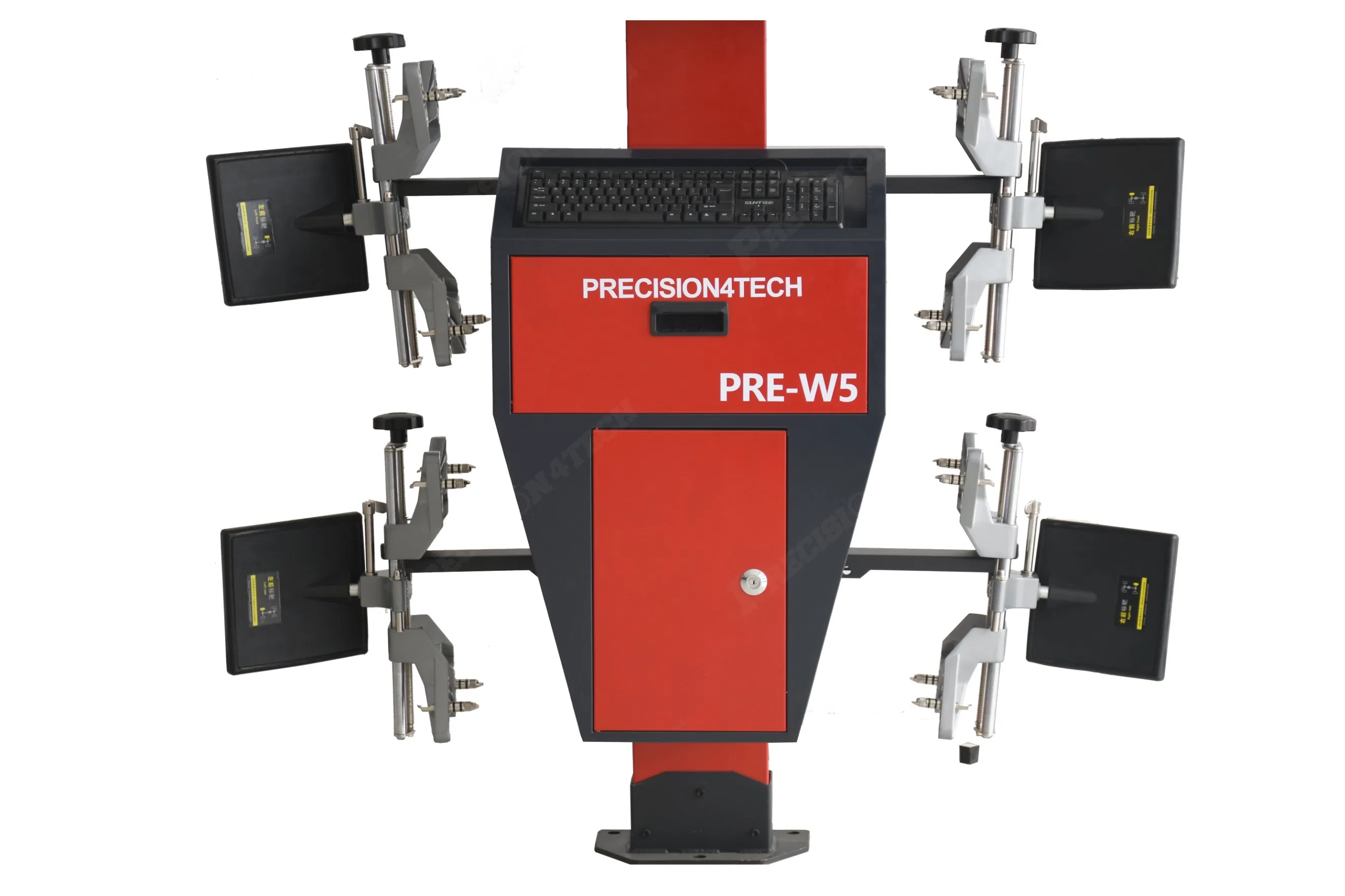

Standard configuration: 5 million pixels camera, Waterproof target plates, Lenovo computer, porcelain cabinet, 32 inch LED TV, 4-points clamp, Brake fixer, Steering Wheel fixer, Wedge pads, Steel Turntables, Turntable transition blocks, voltage stabilizer. Printer (optional). Packing: Wooden case.

Basic Functions: Parameters measurement such as Toe-in & Toe-out, Camber, Caster, SAI, Total Toe, Kingpin inclination, Set back, Thrust angle.

Extensive Functions: Body Dimension Measurement, Axle distance measurement, Removing Tire Adjustment, Steering Wheel Adjustment, Engine Bay Adjustment, Toe Curvature Measurement, Lock Toe Adjustment.

■

Technical Specifications

Item	Accuracy	Range
Total toe	±0.01°	±40°
Camber	±0.01°	±45°
Caster	±0.02°	±45°
SAI	±0.02°	±45°
Thrust angle	±0.01°	±45°
Set back	±0.01°	±40°
Max turn angle	±0.02°	±50°

■

Product Advantages

Compact Installation: Saves more workspace in the garage.

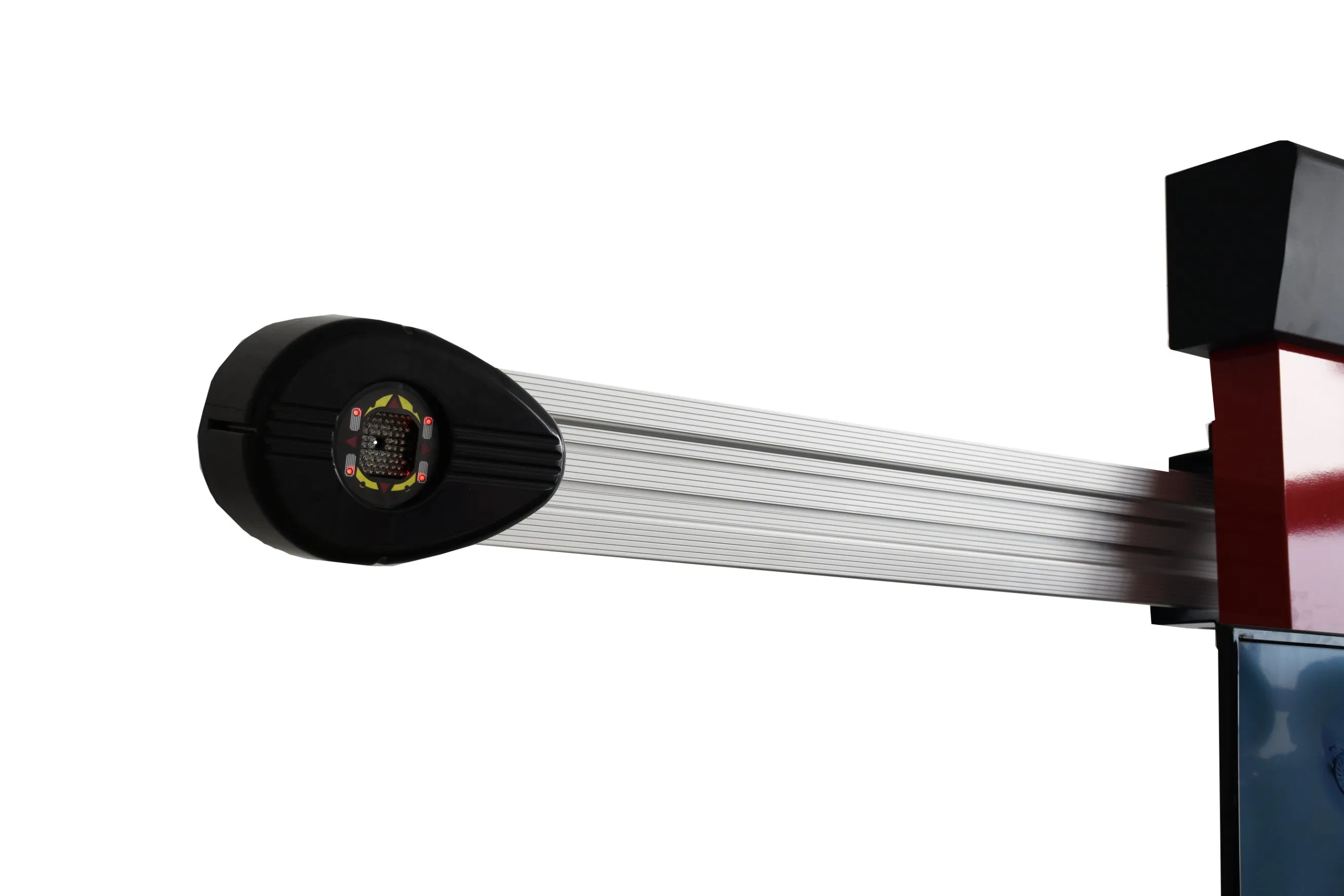

Movable Camera Beam: Manual slide-type back hanging design with adjustable height (80-120cm or 200-240cm).
3D Imaging Technology: Measured with the body as the benchmark for wider field of vision and accurate data.
Fast Measurement: Positioning can be completed within two minutes.
High Accuracy: Three-digital imaging positioning technology with 0.01° accuracy.
High Efficiency: Precision and speed allow for more positioning work daily.

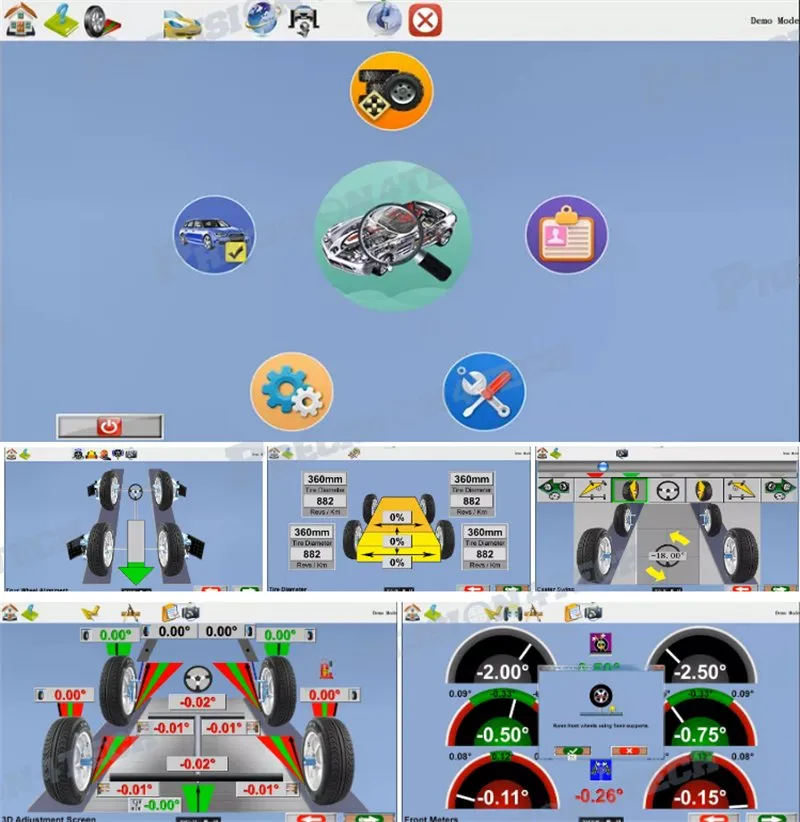

Easy Operation: 3D animation formulation for positioning adjustment.

■

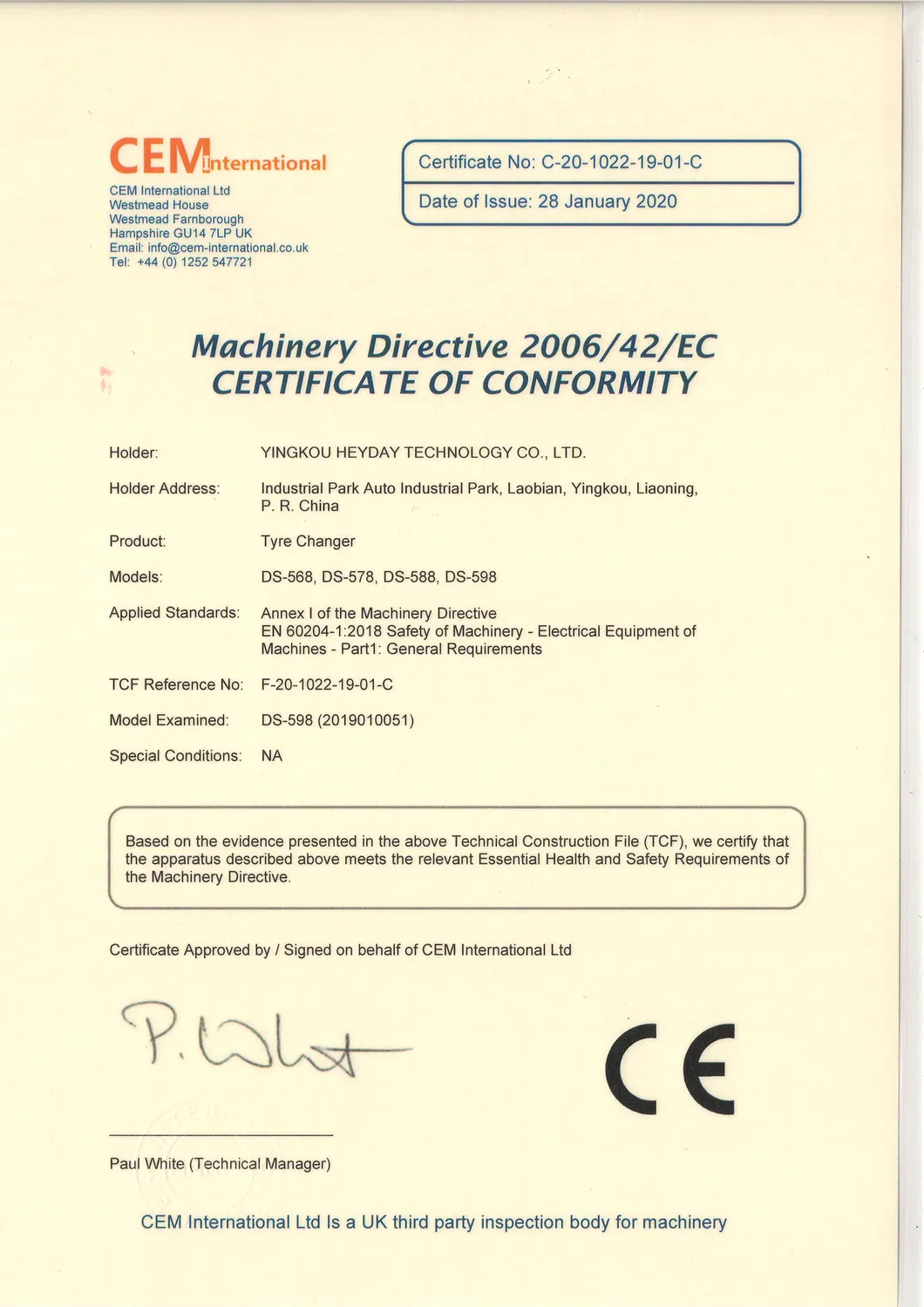

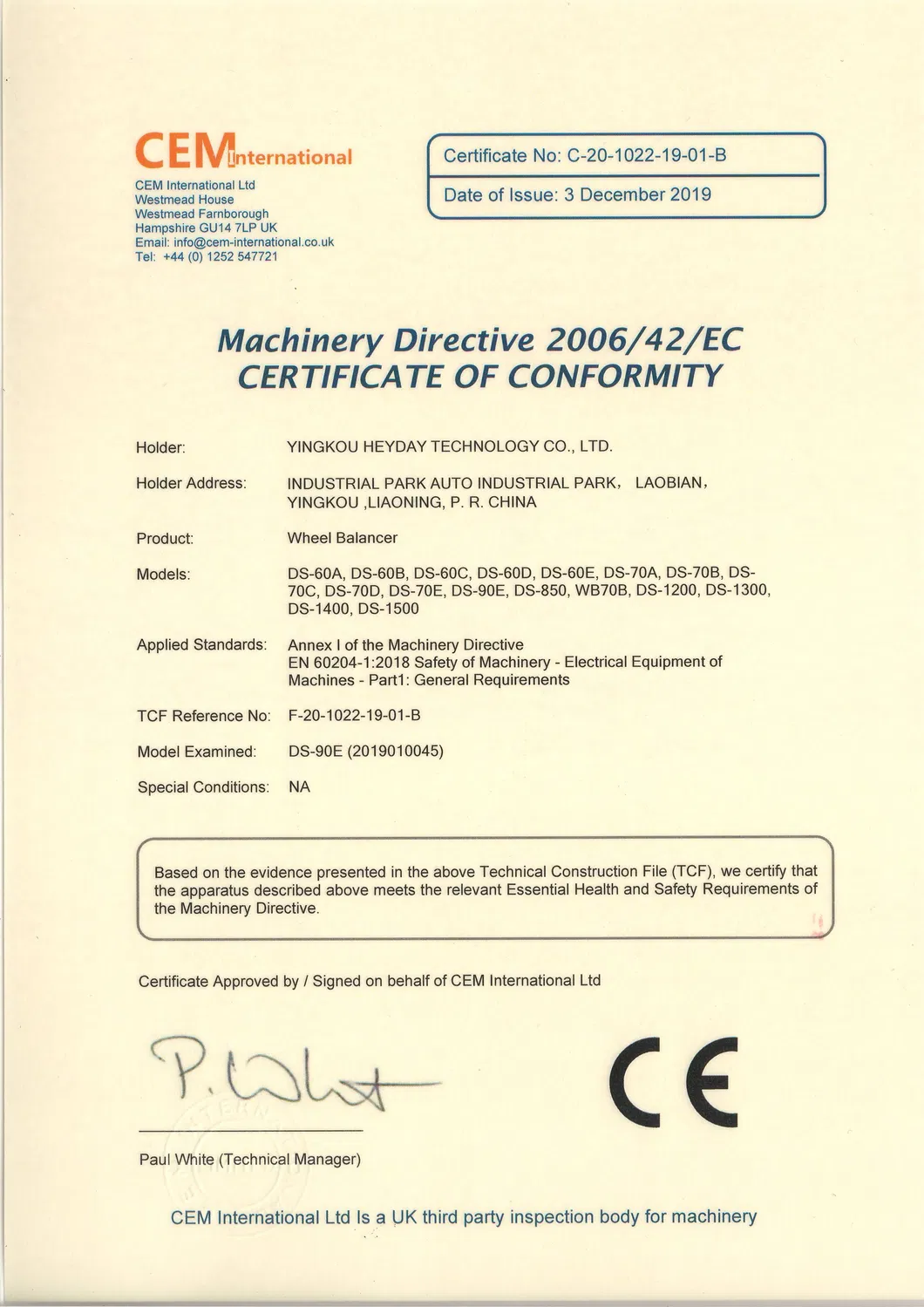

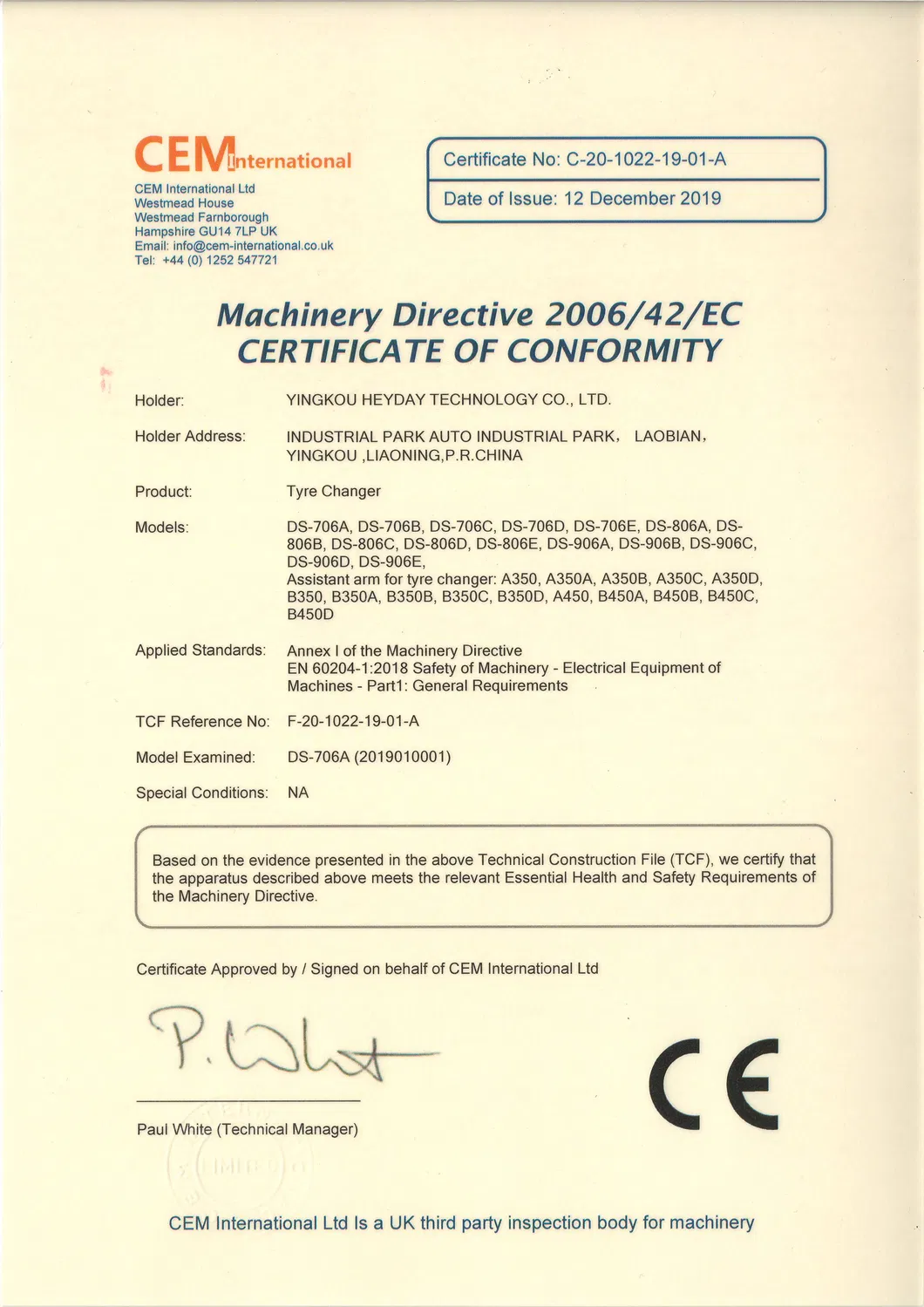

Certifications

■

Company Profile

The machinery manufacturer started in 2003, focusing on auto lifts and auto body collision repair benches. Over time, standard and customized paint booths were included in the business line. We operate two professional international sales teams providing consultancy for customization of car benches, lifts, and spray booths.

Experience is our most competitive factor. We have consultants with over 50 years of experience in garage workshop design and after-sales service, supplying practical solutions for end users. Our production bases cover car lifts, frame machines, and spray booths, ensuring high-quality standards tested by CE and ISO9001.

■

Production Flow & Packaging

Design Customer Solution

Production

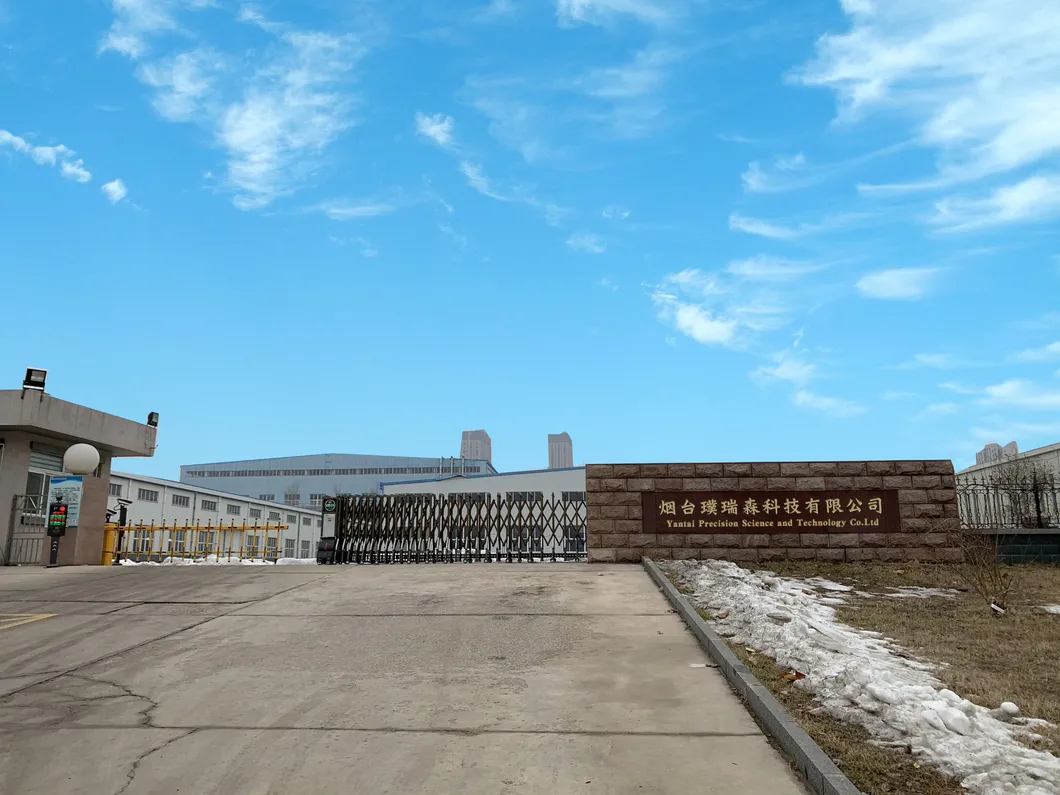

Workshop

Packing

Deliver

Online Service

Frequently Asked Questions

1. What is the measurement accuracy of the PRE-W5 3D Wheel Alignment? The system utilizes three-digital imaging positioning technology, achieving a measurement accuracy of 0.01°.

2. How long does it take to complete a wheel alignment measurement? Positioning measurements are highly efficient and can be typically completed within two minutes.

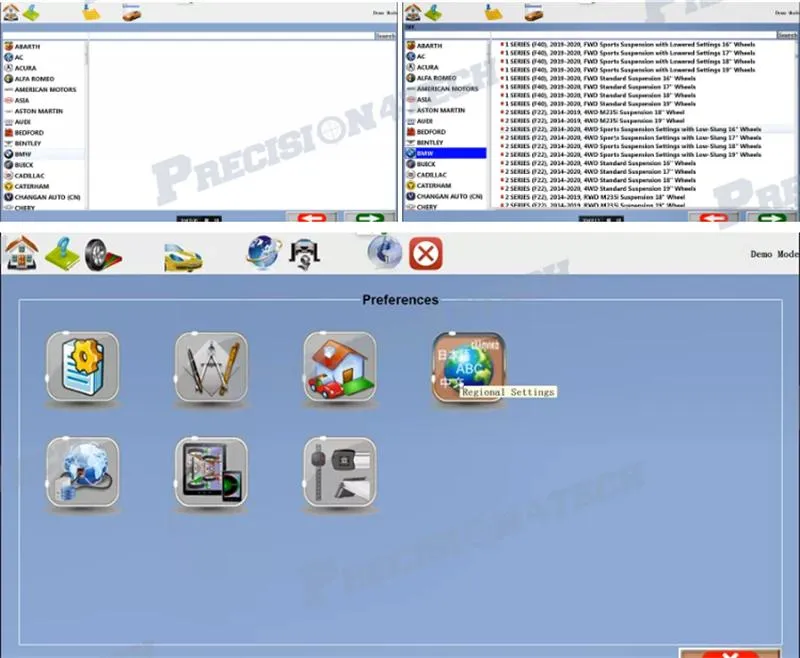

3. Is the software database updated regularly? Yes, the independent software includes a database that is updated once a year for free to ensure compatibility with new vehicle models.

4. What type of camera is used in this system? The PRE-W5 is equipped with 5 million pixels high-definition industrial cameras for precise 3D imaging.

5. Can the camera beam height be adjusted for different platforms? Yes, the manual movable camera beam features a slide-type back hanging design, allowing height adjustments between 80-120cm or 200-240cm.

6. What is included in the standard package? The standard configuration includes the cameras, target plates, Lenovo computer, cabinet, 32-inch LED TV, clamps, brake and steering wheel fixers, turntables, and a voltage stabilizer.
