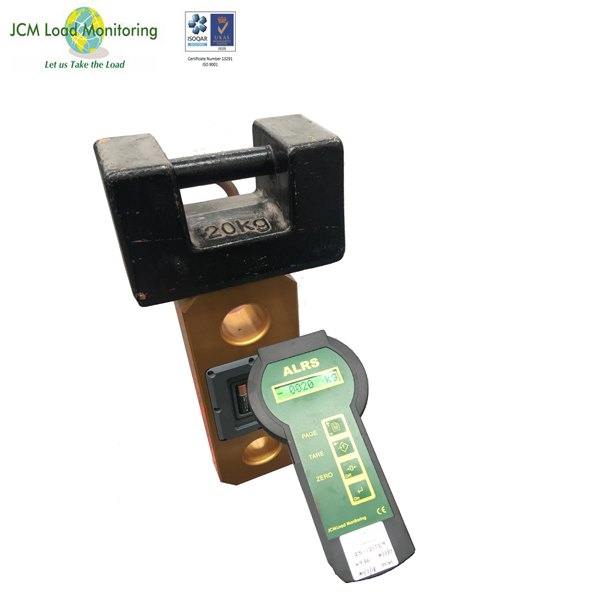

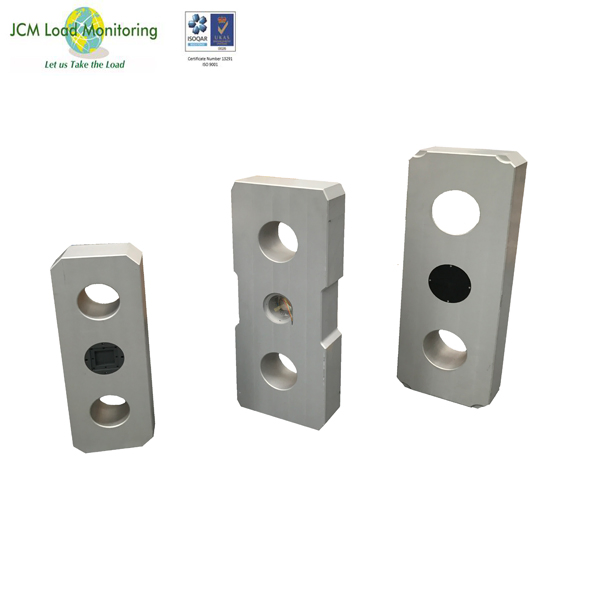

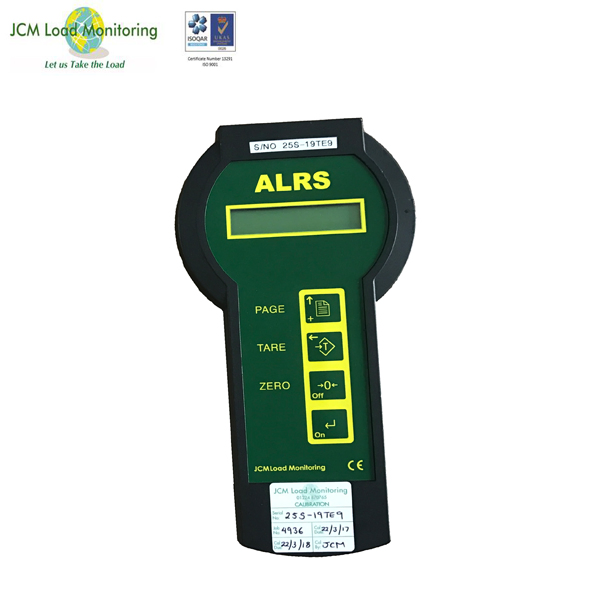

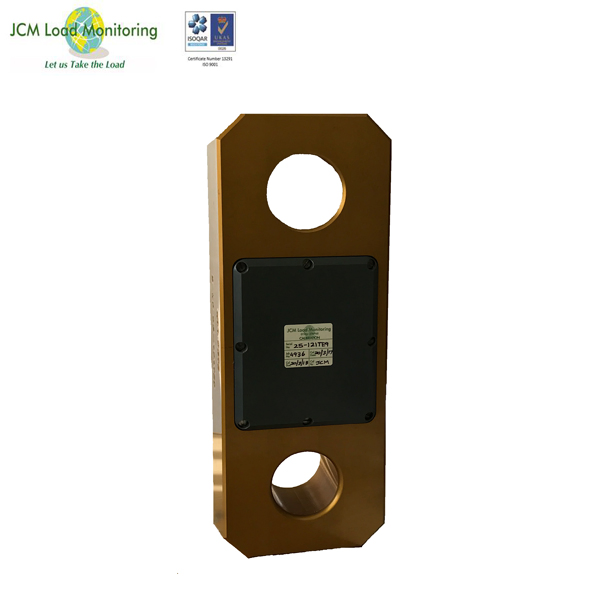

150t/1500kn Wireless Pad Eyes Type Load Monitoring Cell
150t/1500kn Wireless Pad Eyes Type Load Monitoring Cell
150t/1500kn Wireless Pad Eyes Type Load Monitoring Cell
150t/1500kn Wireless Pad Eyes Type Load Monitoring Cell
150t/1500kn Wireless Pad Eyes Type Load Monitoring Cell
1 / 5
150t/1500kn Wireless Pad Eyes Type Load Monitoring Cell
150t/1500kn Wireless Pad Eyes Type Load Monitoring Cell
150t/1500kn Wireless Pad Eyes Type Load Monitoring Cell
150t/1500kn Wireless Pad Eyes Type Load Monitoring Cell
150t/1500kn Wireless Pad Eyes Type Load Monitoring Cell

150t/1500kn Wireless Pad Eyes Type Load Monitoring Cell

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
JCM150T
Out-Wire
6-Wire
Signal Type
Digital Type
Feature
Corrosion Resistant
Process
Integration
Material
Aluminum
IP Rating
IP67
Certification
CE
Color
Golden/Silver
Capacity
10000 PCS Yearly
Product Overview

360 Gold Telemetry Load Links

Our solution for high-precision measurement of tensile load in heavy industrial applications.

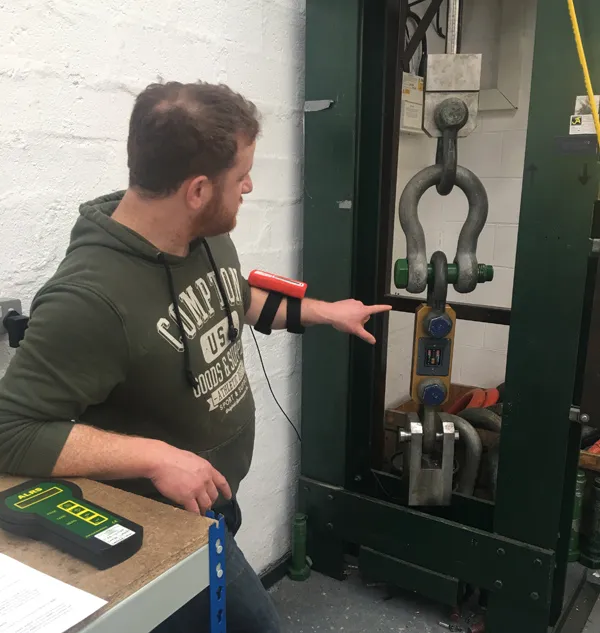

Load Monitoring Cell
Technical Description

All load links are manufactured from anodized aerospace grade aluminum, combined with a full O-ring sealing system to provide ingress protection of IP67, ensuring reliability in harsh environments.

Technical Drawing
Capacity A (mm) B (mm) C (mm) D (mm) E (mm) Weight (kg)
2.5t2321538270252.4
5t2724038292382.6
12.5t44226130324505.3
25t55240134360707.1
50t782981634768515.0
100t10034619655612426.1
150t12039624468012747.1
500t1906004901100200TBA

* Please confirm any critical dimensions before ordering.

Core Advantages
  • 360° Radio Transfer: Up to 600m wireless signal range.
  • Durability: Workable under heavy rain, snow, and dust.
  • Battery Life: Up to 500 hours with simple battery change-out.
  • High Accuracy: 0.1% accuracy for full range with specific calibration reports.
  • Safety First: 5:1 safety factor to ensure peak performance.
  • Lightweight Design: Manufactured from anodized aerospace grade aluminum.
Applications

Designed for heavy load monitoring in various sectors including:

SHIPYARDS • CRANE MANUFACTURING • IRON & STEEL • METALLURGY • SPACECRAFT MANUFACTURING • AUTOMATION • HARBOR CRANES

Product Showcase

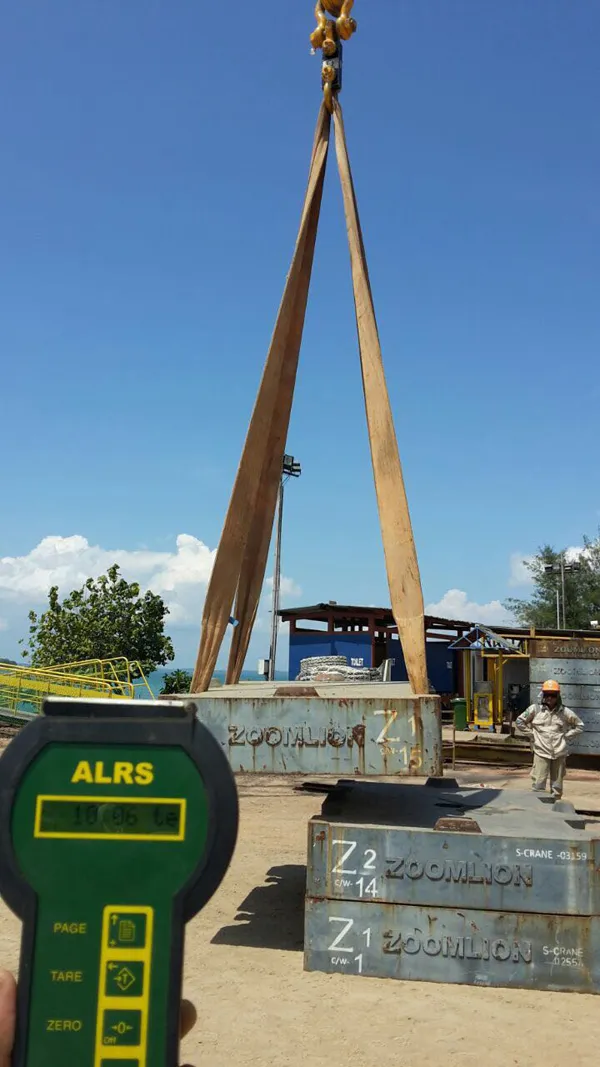

Product Show 1

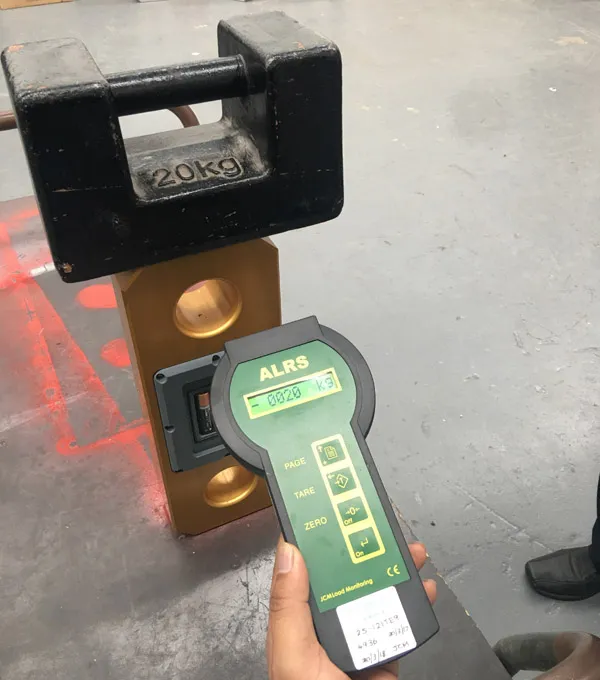

Product Show 2

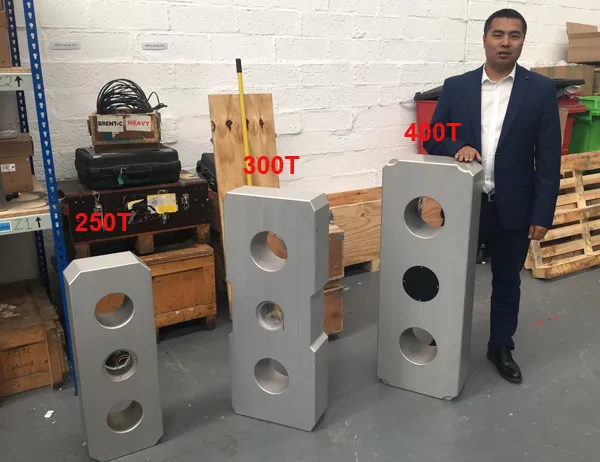

Product Show 3
Product Show 4
Frequently Asked Questions
What is the wireless range of the telemetry load link?
The unit features 360° radio signal transfer with a range of up to 600 meters.
What environment is this equipment suitable for?
With an IP67 rating and corrosion-resistant aluminum construction, it is designed to work in harsh weather conditions including heavy rain, snow, and dust.
How long does the battery last?
The load cells offer up to 500 hours of battery life and feature a simple battery change-out process.
What is the safety factor of these load cells?
All units are designed with a 5:1 safety factor to ensure maximum safety during heavy lifting and monitoring operations.
Are the units supplied with calibration certificates?
Yes, all new equipment is supplied complete with a specific calibration report and proof test certificates traceable to national standards.
How are the units packaged for transport?
Units from 2.5t to 50t are supplied in an IP67 transit case, while larger units (75t to 500t) are supplied in hinged wooden transit cases.
