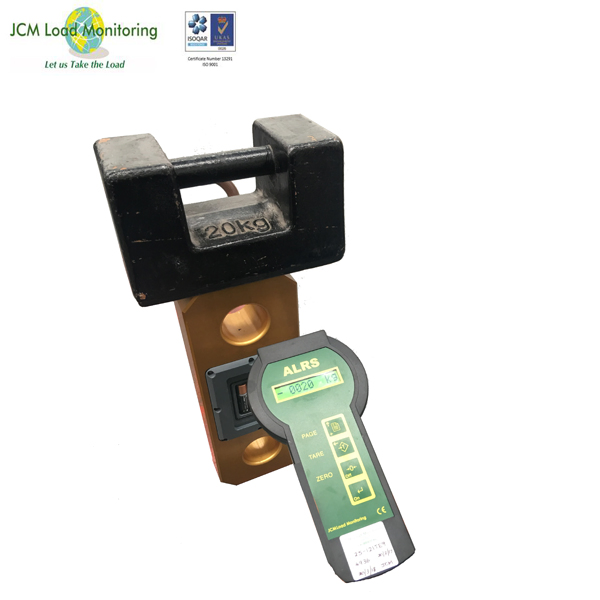

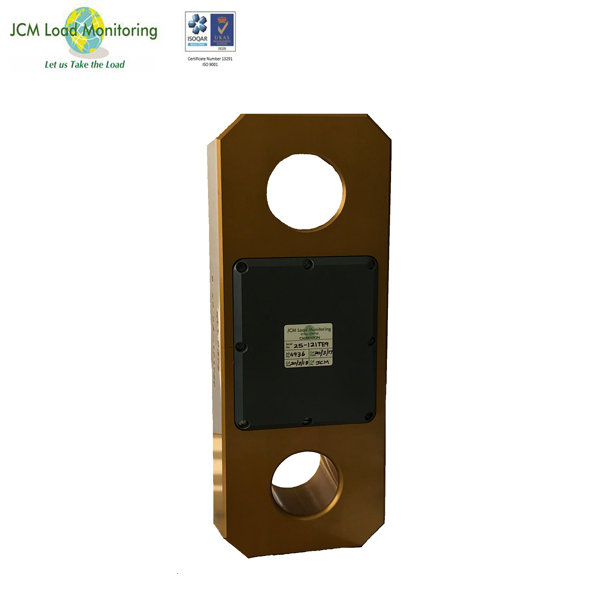

300t/3000kn Wireless Pad Eyes Type Shackle Link Crane Scale Sensor

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
300T
Out-Wire
6-Wire
Output Signal
Digital Type
Feature
Corrosion Resistant
Process
Integration
Material
Aluminum
IP Rating
IP67
Certification
CE
Color
Golden/Silver
Capacity
Up to 500 Tonne
Product Description

Gold Telemetry Load Links

Our Answer to Measurement of Tensile Load in Heavy Industrial Applications:

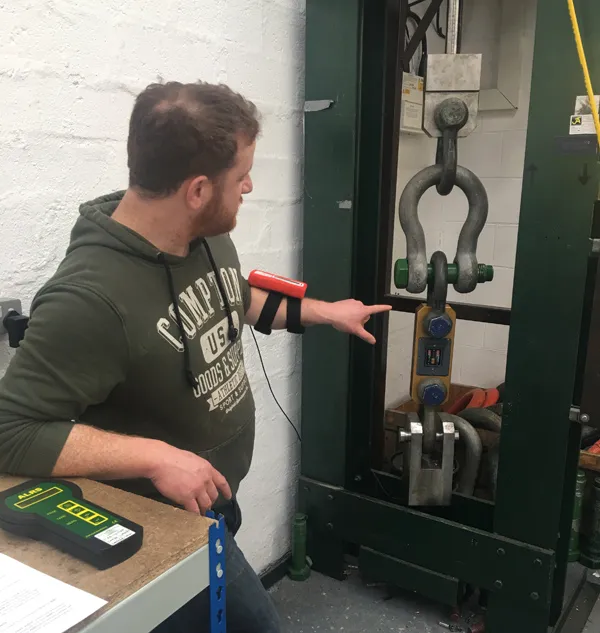

Telemetry Load Link

We are a specialized manufacturer in load monitoring with extensive experience in the load measuring industry. We have dealt with every application that requires a professional solution. Our skilled engineers assist customers globally with their specific applications.

We offer a wide range of tension and compression load cells from 250 Kgs to 600 Tonne. All equipment is supplied complete with calibration and proof test certificates. Full user instructions are provided, and re-calibration services are available, traceable to National Standards under a certified ISO9001 quality system.

Technical Specifications

All load links are manufactured from anodized aerospace grade aluminum, combined with full O-ring sealing for ingress protection of IP67.

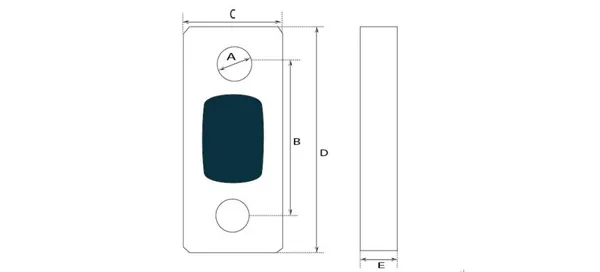

Technical Drawing
Capacity A B C D E Weight (kg)
2.5t2321538270252.4
5t2724038292382.6
12.5t44226130324505.3
25t55240134360707.1
35t62290140440709.4
50t782981634768515.0
75t8630619050010017.0
100t10034619655612426.1
150t12039624468012747.1
200t13244228078415079.0
250t146460300844150TBA
300t1605824001000150TBA
400t1806144001098200TBA
500t1906004901100200TBA

* All sizes in mm/kg. Please confirm critical dimensions before ordering.

Key Advantages
  • 360° (600m) radio signal transfer
  • Internal antenna and linear construction
  • Up to 500 hour battery life with simple change out
  • Resistant to harsh weather (rain, snow, dust)
  • Compact structure and lighter weight
  • Safety factor 5:1 for maximum performance
  • High accuracy: 0.1% for full range
  • Overloading alarm system
  • Anodized aerospace grade aluminum body
Applications

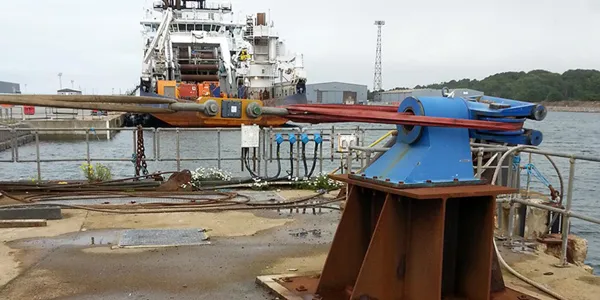

Ideal for design and quality control in: SHIPYARD, CRANE MANUFACTURING, IRON & STEEL, METALLURGY & CASTING, SPACECRAFT MANUFACTURING, AUTOMATION, RAILWAY PRECAST BEAM, HARBOR CRANE and any heavy load monitoring environment.

Ordering Information

Units are available from 2.5t to 500t.

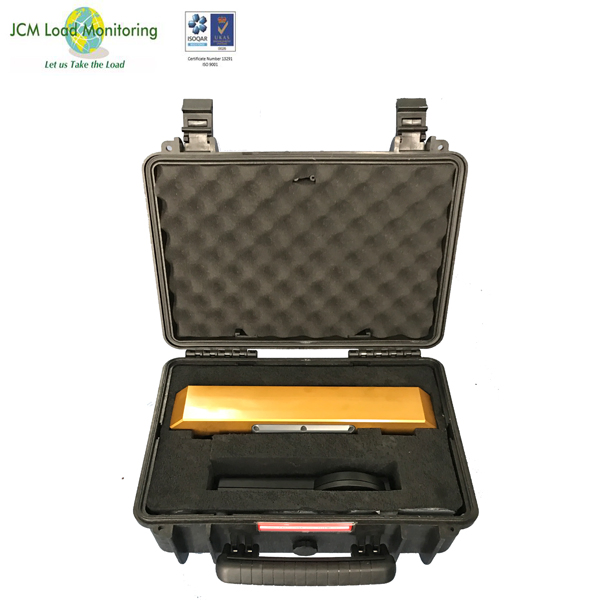

  • 2.5t to 50t: Supplied in an IP67 transit case.

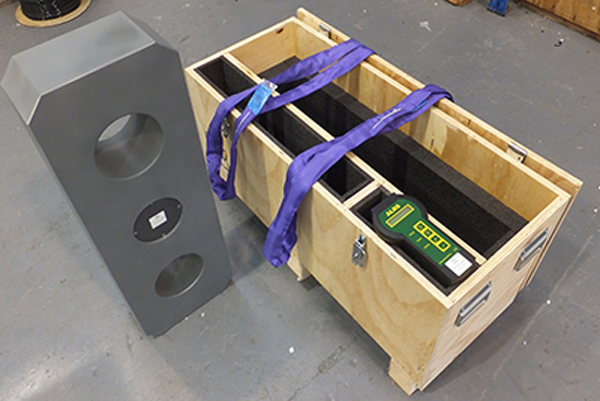

  • 75t to 500t: Supplied in a hinged wooden transit case.

Shipping: Air shipping is recommended for small quantities or urgent orders; sea shipping is available for large amounts.

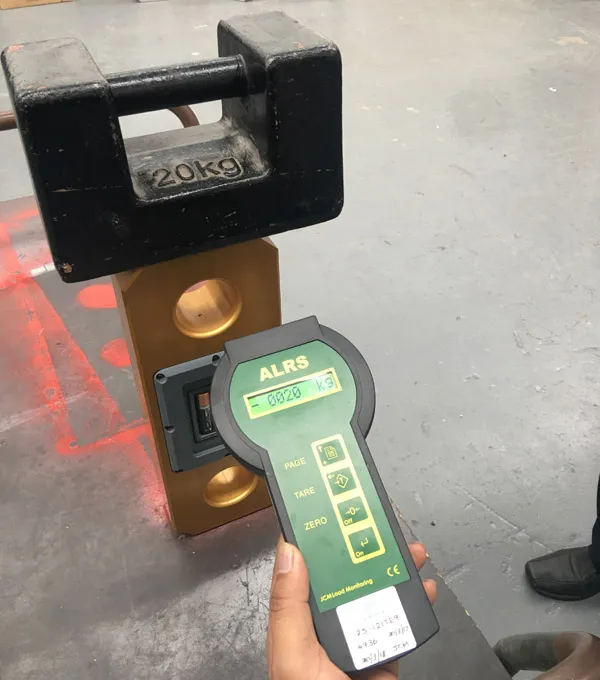

Product Showcase

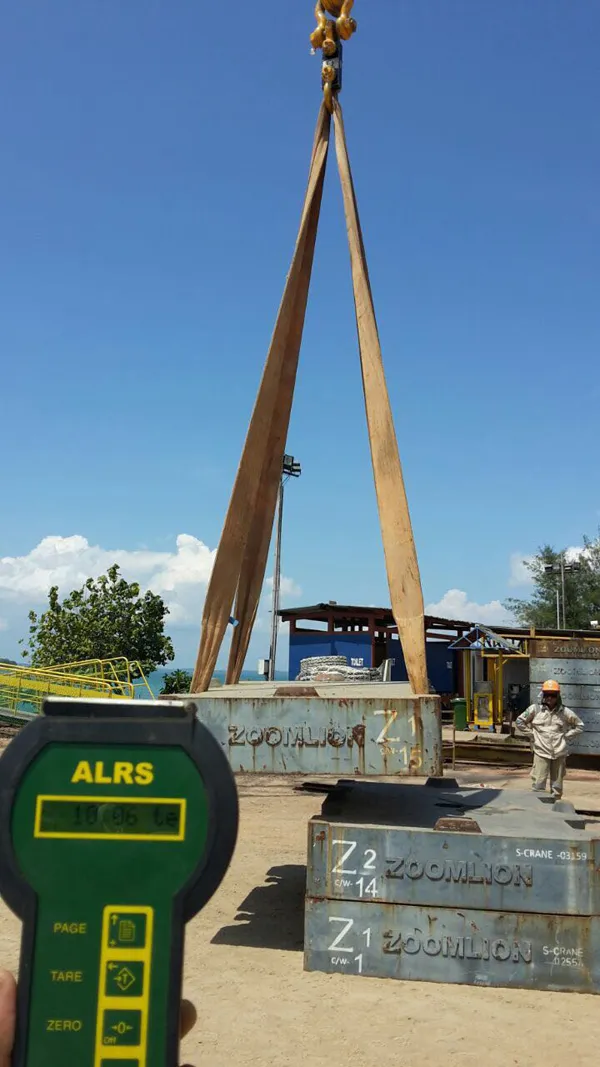

Product Show 1
Product Show 2

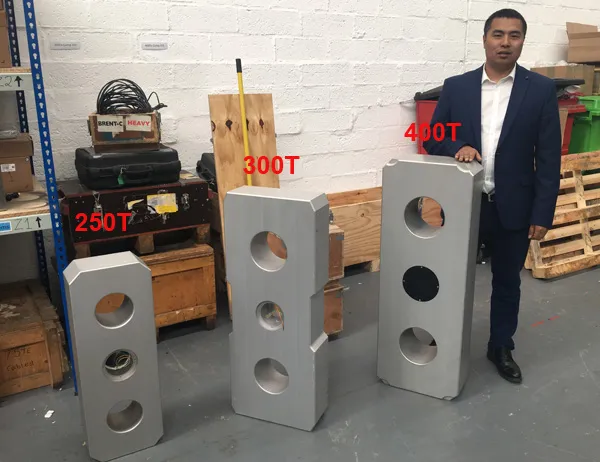

Product Show 3
Product Show 4
Frequently Asked Questions
1. What is the wireless range of the telemetry load links? The device features a 360° radio signal transfer with a range of up to 600 meters.
2. How durable is the load link in outdoor environments? It is designed with an IP67 rating and manufactured from anodized aerospace grade aluminum, making it workable under harsh weather conditions like heavy rain, snow, and dust.
3. What is the battery life and how is it maintained? The load link provides up to 500 hours of battery life and features a simple battery change-out process.
4. What level of accuracy can I expect? The units provide high accuracy of 0.1% for the full range, and each load cell is supplied with a specific calibration report.
5. Is the equipment safety tested? Yes, the load links have a safety factor of 5:1 and include an overloading alarm to ensure safe performance during operation.
6. How are the units packaged for transport? Units from 2.5t to 50t are shipped in an IP67 transit case, while larger units (75t to 500t) are provided in a hinged wooden transit case.
