Product Description

📊

Product Overview & Basic Info

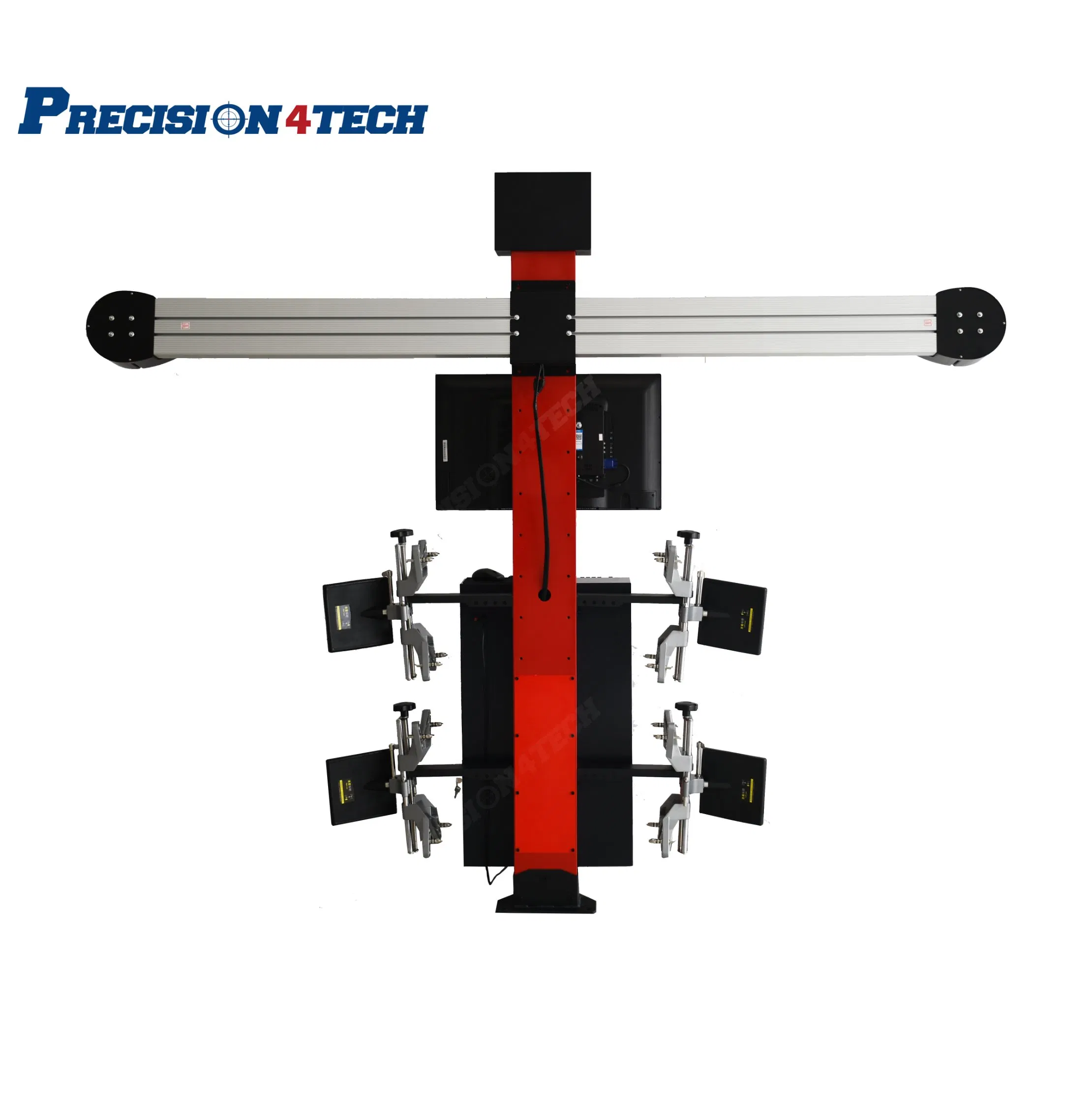

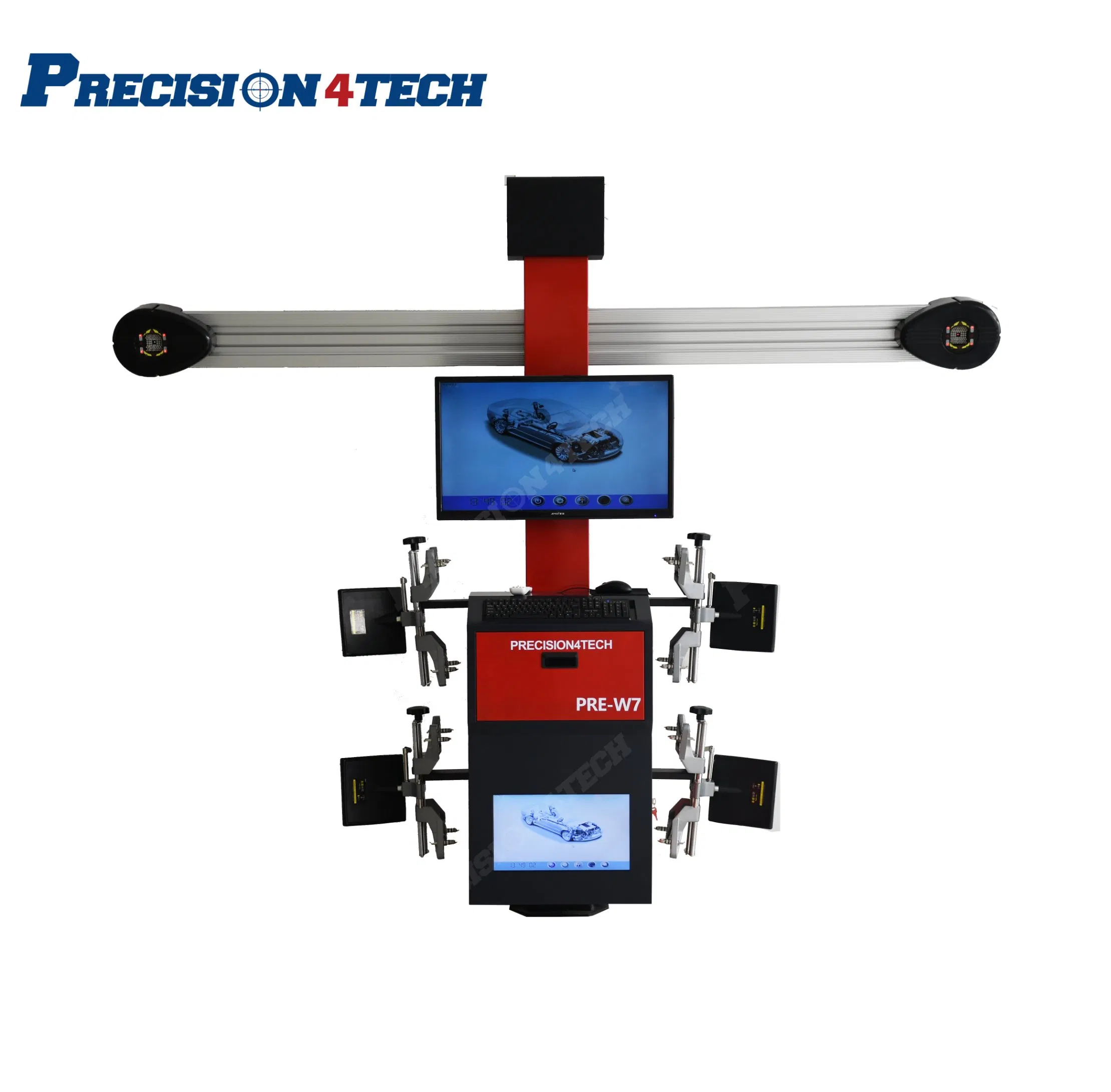

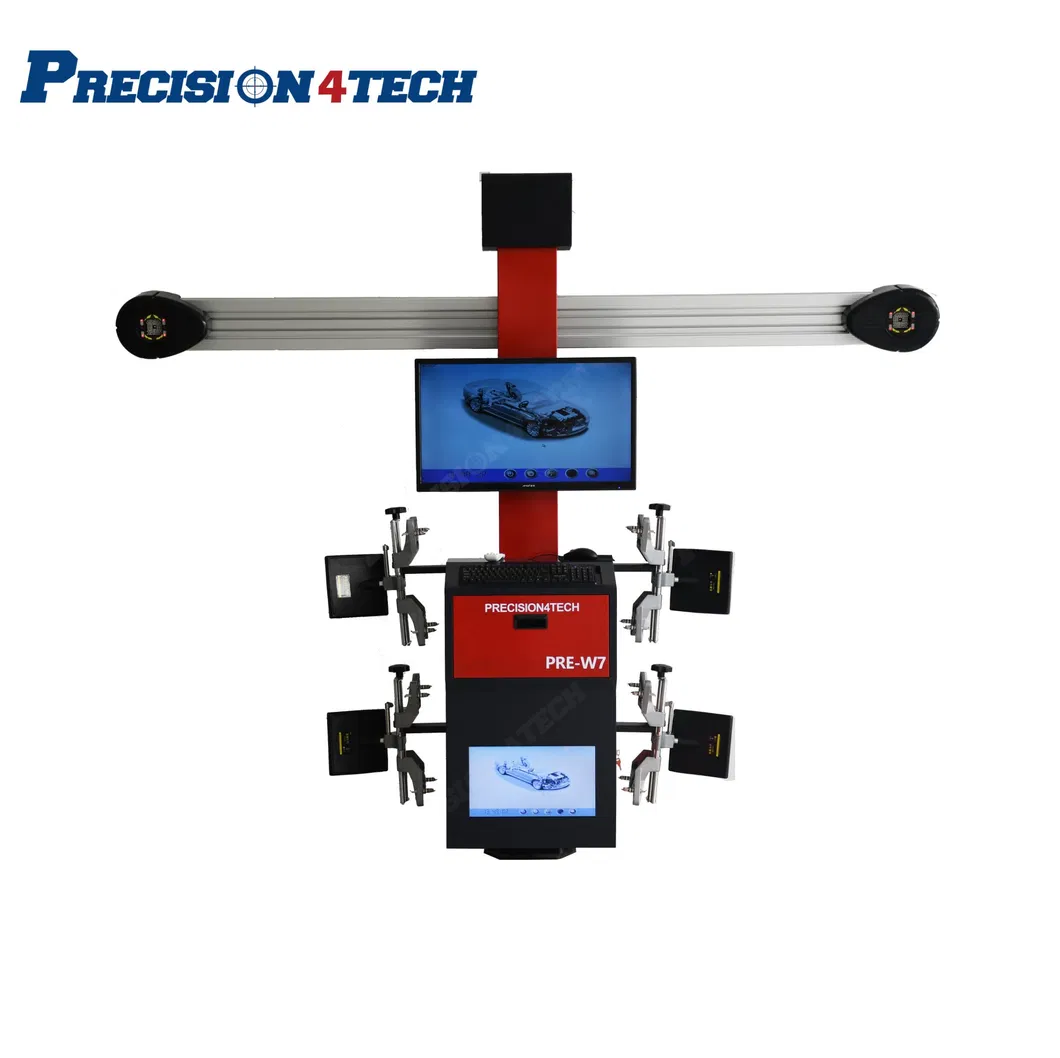

3D Wheel Alignment Machine
Model NO.
PRE-W7
Type
3D Wheel Alignment
Certification
CE
Communication
Infrared Wireless
Camera
5 Million Pixels HD
Database
Updated Annually Free
Power Supply
110V/220V/380V
Application
4S Shop / Garage
Gross Weight
245kgs
Accuracy
0.01 degree
HS Code
9031809090
Production Capacity
20,000 pieces/Year
🛠️

Standard Configuration

  • 5 million pixels camera & Waterproof target plates
  • Dell computer with luxury cabinet and dual screens (32" LED TV & 19" monitor)

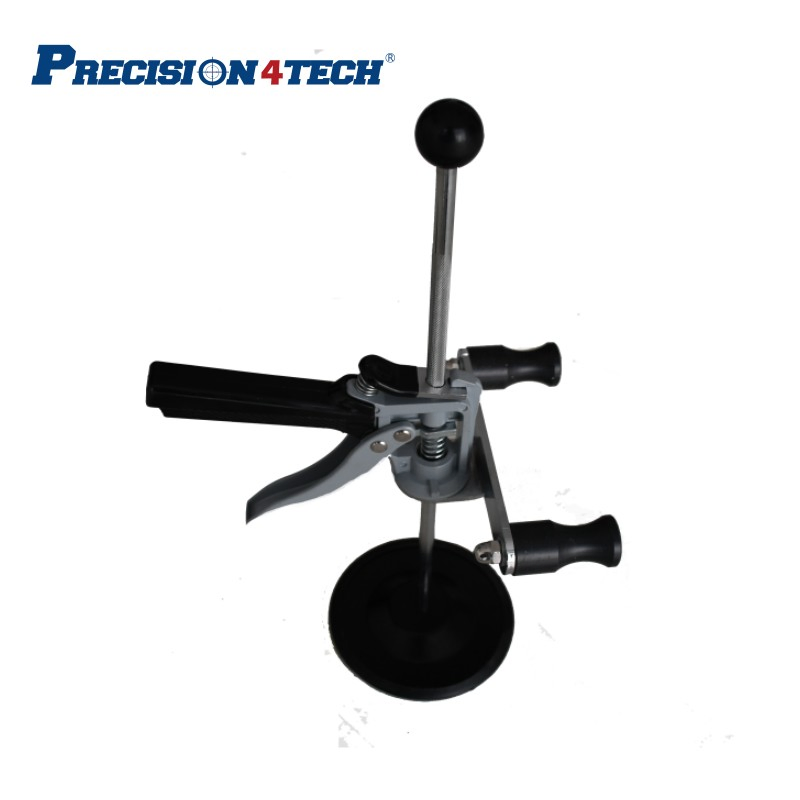

  • 4-points clamp, Brake fixer, Steering Wheel fixer, and Wedge pads
  • Steel Turntables & Turntable transition blocks
  • Voltage stabilizer included

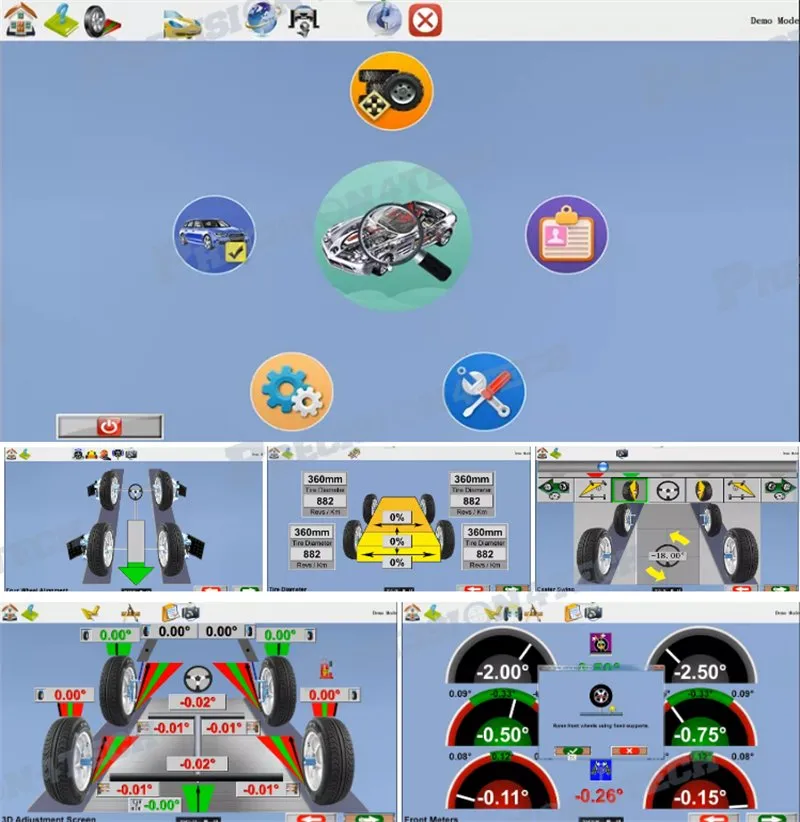

Aligner Component 1

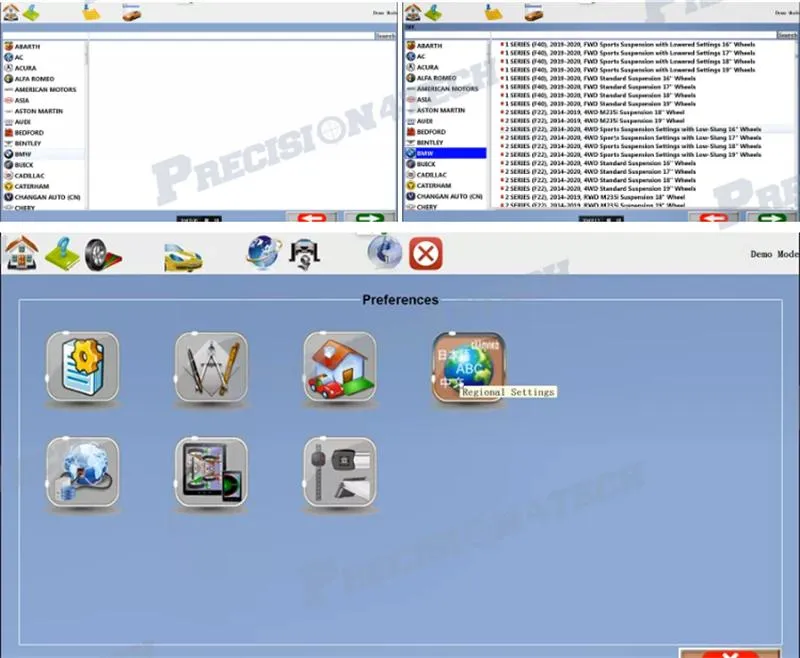

Aligner Component 2
🚀

Key Functions & Advantages

Basic Measurement: Toe-in, Toe-out, Camber, Caster, SAI, Total Toe, Kingpin inclination, Set back, Thrust angle.

Extensive Functions: Body Dimension Measurement, Axle distance measurement, Removing Tire Adjustment, Steering Wheel Adjustment, Engine Bay Adjustment, Toe Curvature Measurement.

Our Advantages Banner
  • Small compact cabinet for flexible placement.

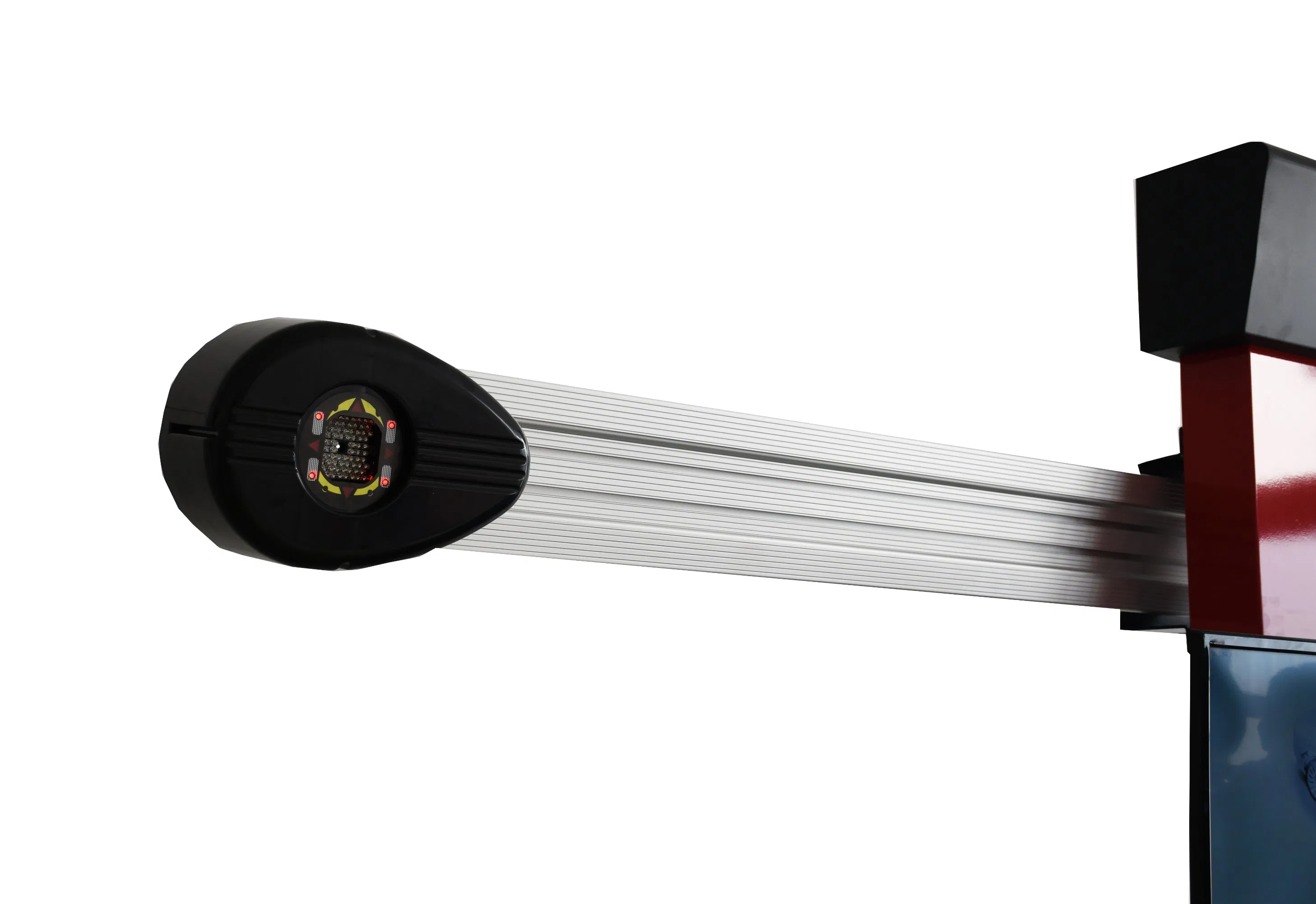

  • Manual Movable Camera beam (adjustable range: 80-120cm or 200-240cm).
  • No electronic components on the target disk, eliminating circuit failures.
  • Calibration only needed once after installation.
  • Measurement data readable within two minutes.
  • Built-in one-click restore system with free software upgrades.
📋

Technical Specifications

Item Accuracy Range
Total toe± 0.01°± 40°
Camber± 0.01°± 45°
Caster± 0.02°± 45°
SAI± 0.02°± 45°
Thrust angle± 0.01°± 45°
Set back± 0.01°± 40°
Max turn angle± 0.02°± 50°
📜

Certifications

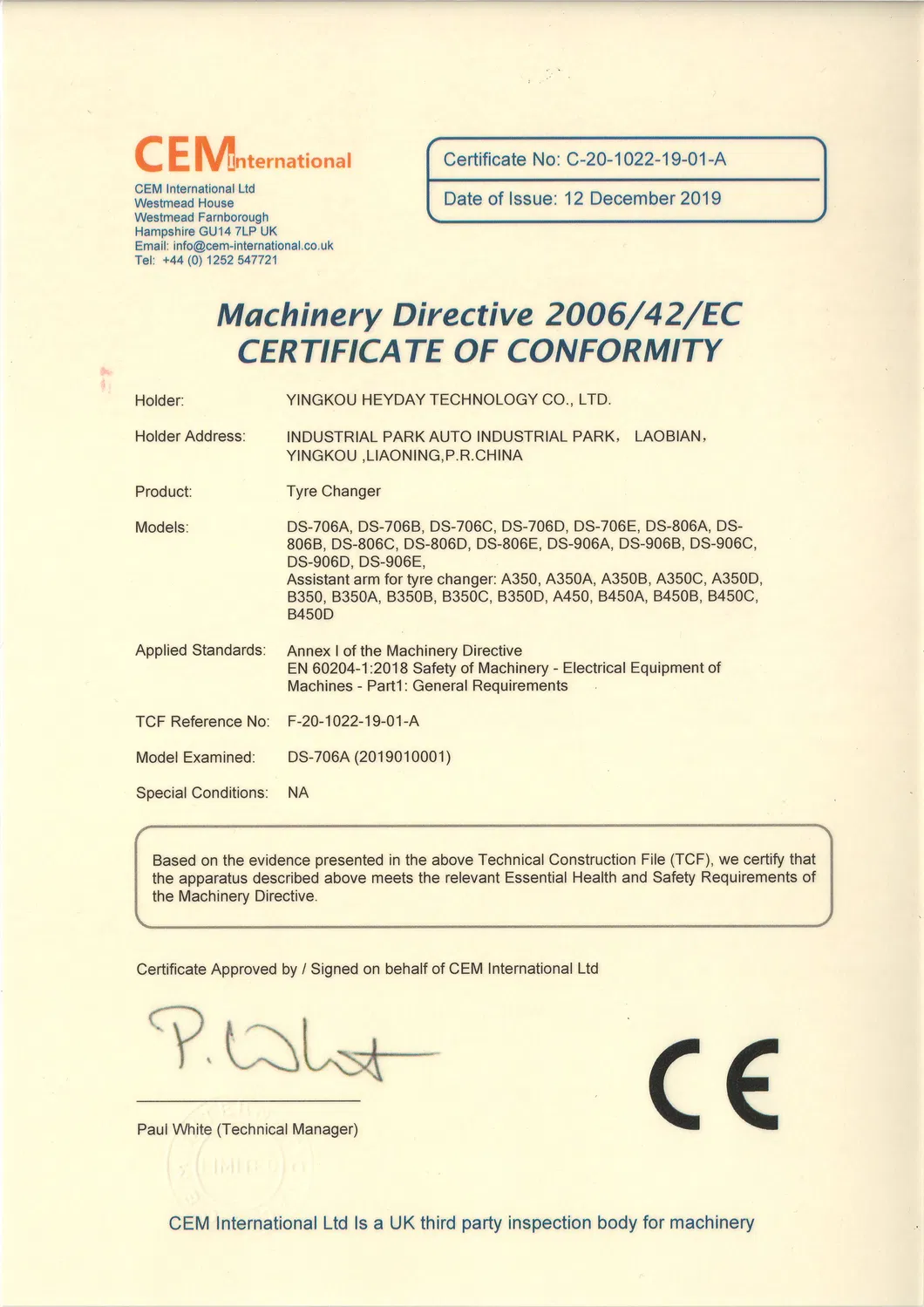

Certification 1

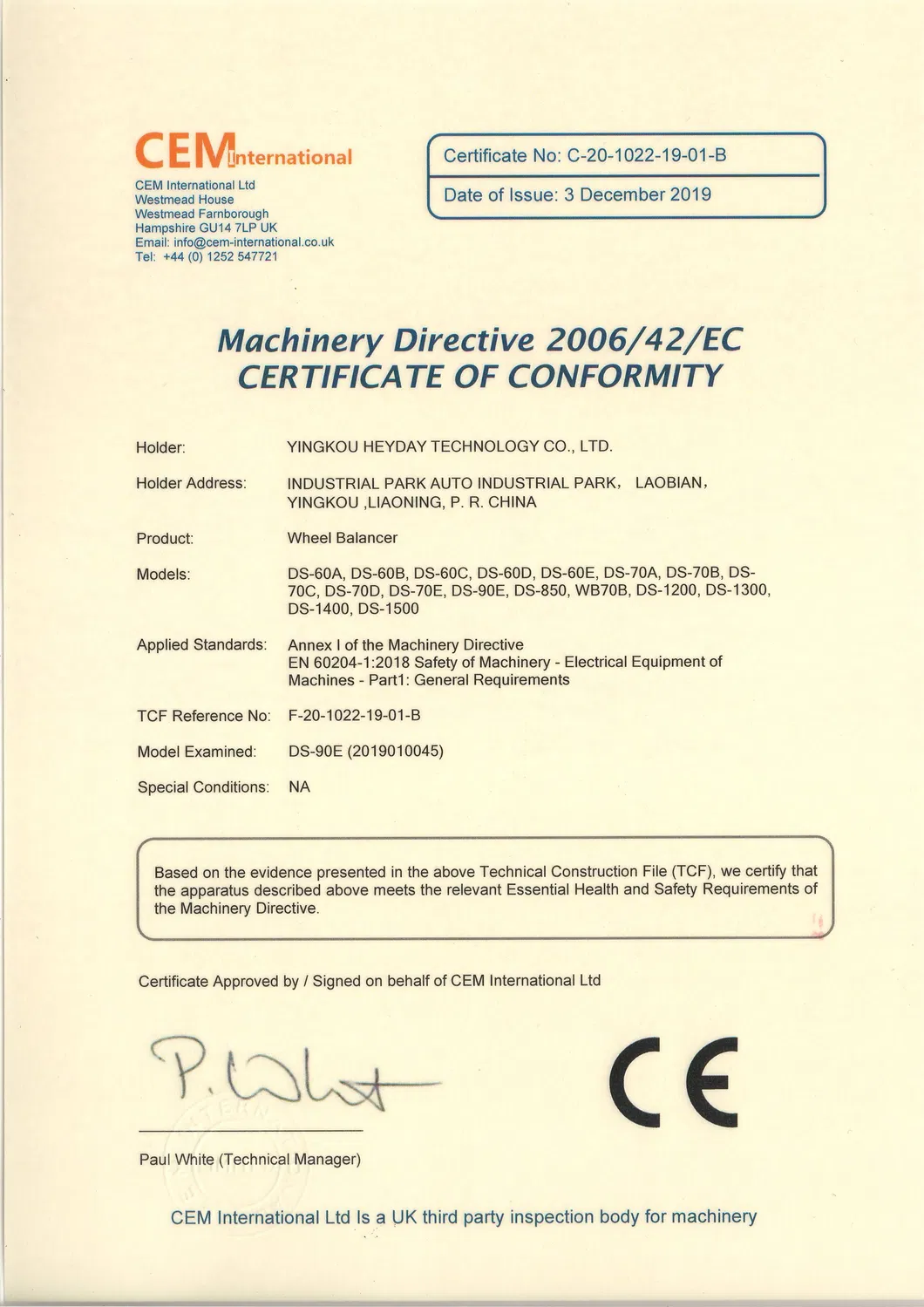

Certification 2
Certification 3
🏭

Production & Shipping Flow

Design Solution
Production
Workshop
Packing
Deliver
Service
Packaging and Shipping
❓

Frequently Asked Questions

What are the main measurement capabilities of the PRE-W7?
The PRE-W7 provides comprehensive 3D measurements including Toe-in, Toe-out, Camber, Caster, SAI, Thrust angle, and extensive functions like body dimension and axle distance measurement.
Does the alignment software require paid updates?
No, the database is updated once a year for free, and the software system includes free upgrades for life.
Why is the non-electronic target disk design better?
Because there are no electronic components on the target disks, there is no risk of circuit failure, making the system more durable and reliable than traditional sensor-based systems.
Is the equipment difficult to calibrate?
Not at all. The equipment only needs to be calibrated once after installation through a simple process. No steel ring compensation is needed during routine measurements.
What computer hardware is included in the package?
The standard configuration includes a high-performance Dell computer, a 32-inch LED TV, and an additional 19-inch monitor housed in a luxury cabinet.
What languages does the software support?
The software supports Multi-Language options to accommodate different international markets and user requirements.
