Our Answer to Measurement of Tensile Load in Heavy Industrial Applications:
As a specialized manufacturer in load monitoring, we have extensive experience in the load measuring industry. We provide solutions for every application that requires precise load measurement. Our skilled engineers assist customers globally onsite.
We offer a wide range of tension and compression load cells from 250 Kgs to 600 Tonne. All equipment is supplied complete with calibration and proof test certificates. Full user instructions are provided, and re-calibration services are available, traceable to National Standards under a certified ISO9001 quality system.

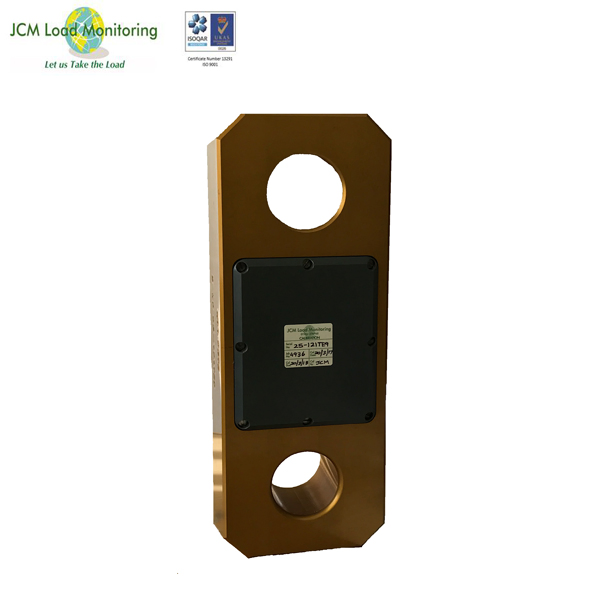

Technical Features: All load links are manufactured from anodized aerospace grade aluminum, combined with full O-ring sealing for IP67 ingress protection.

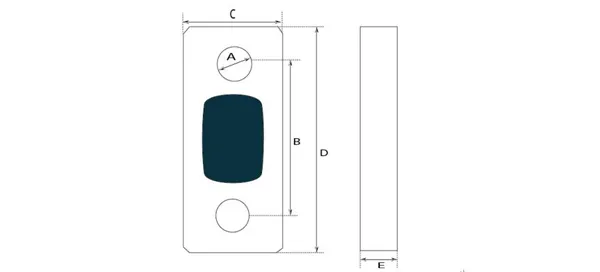

| Capacity | A | B | C | D | E | Weight (kg) |
|---|---|---|---|---|---|---|
| 2.5t | 23 | 215 | 38 | 270 | 25 | 2.4 |
| 5t | 27 | 240 | 38 | 292 | 38 | 2.6 |
| 12.5t | 44 | 226 | 130 | 324 | 50 | 5.3 |
| 25t | 55 | 240 | 134 | 360 | 70 | 7.1 |
| 35t | 62 | 290 | 140 | 440 | 70 | 9.4 |
| 50t | 78 | 298 | 163 | 476 | 85 | 15.0 |
| 75t | 86 | 306 | 190 | 500 | 100 | 17.0 |
| 100t | 100 | 346 | 196 | 556 | 124 | 26.1 |
| 150t | 120 | 396 | 244 | 680 | 127 | 47.1 |
| 200t | 132 | 442 | 280 | 784 | 150 | 79.0 |
| 250t | 146 | 460 | 300 | 844 | 150 | TBA |
| 300t | 160 | 582 | 400 | 1000 | 150 | TBA |
| 400t | 180 | 614 | 400 | 1098 | 200 | TBA |
| 500t | 190 | 600 | 490 | 1100 | 200 | TBA |
* All sizes in mm. Please confirm any critical dimensions before ordering.
Perfect for design and quality control in: Shipyards, Crane Manufacturing, Iron & Steel, Metallurgy & Casting, Spacecraft Manufacturing, Automation, Railway Precast Beams, Harbor Cranes, and any environment requiring heavy load monitoring.
Units are available from 2.5t to 500t.
